In the fields of industrial automation and power control, the stable operation of equipment inside electrical enclosures is critical. Temperature fluctuations, condensation, and overheating are common culprits behind equipment failures, circuit board corrosion, and even safety incidents. An efficient yet often underestimated solution—thermostats with hysteresis—is a key component in ensuring environmental stability and extending the lifespan of equipment within electrical enclosures.
Simply put, hysteresis is an intelligent feature of thermostats that prevents frequent cycling of heating or cooling systems by establishing a buffer zone between the "on" and "off" temperature points.
For example, a thermostat used for heating might be set to turn on the heater when the internal temperature drops below 15°C and turn it off only when the temperature rises above 20°C. This 5°C difference is the "hysteresis band."
Key Advantages:
Prevents Short Cycling: Avoids frequent activation due to minor temperature fluctuations (e.g., door openings, brief equipment heat dissipation).
Protects Equipment: Significantly reduces mechanical wear and electrical stress on actuators such as contactors, fans, and heaters.
Stabilizes Environment: Creates a more gradual internal temperature change for sensitive electronic components.
The enemies inside an electrical enclosure are not only high temperatures but also condensation caused by temperature differentials. Condensation can directly lead to short circuits and corrosion of metal components.
By maintaining a relatively stable temperature, thermostats with hysteresis effectively keep the internal temperature above the dew point, thereby preventing condensation. Simultaneously, by controlling heating or ventilation, they prevent localized overheating due to poor heat dissipation, ensuring components operate within their rated temperature ranges.
Frequent switching of traditional thermostats can cause continuous temperature fluctuations inside the enclosure, creating a "roller coaster" environment. The hysteresis feature introduces stability, resulting in a smoother temperature control curve. This stability is crucial for equipment such as PLCs, servo drives, and precision power supplies, reducing performance drift or failures caused by thermal stress.
Every unnecessary cycle adds wear and tear to the equipment. The hysteresis function directly reduces the number of activation cycles of the temperature control system within a given period. This means:
Extended lifespan of heaters.
Reduced bearing wear on cooling fans.
Greatly increased electrical life of relays/contactors.
Improved overall system reliability and significantly reduced unplanned downtime and maintenance costs.
When selecting a thermostat with hysteresis, product reliability, applicability, and certifications are equally important. LINKWELL Intelligent Control offers professional solutions for this purpose.

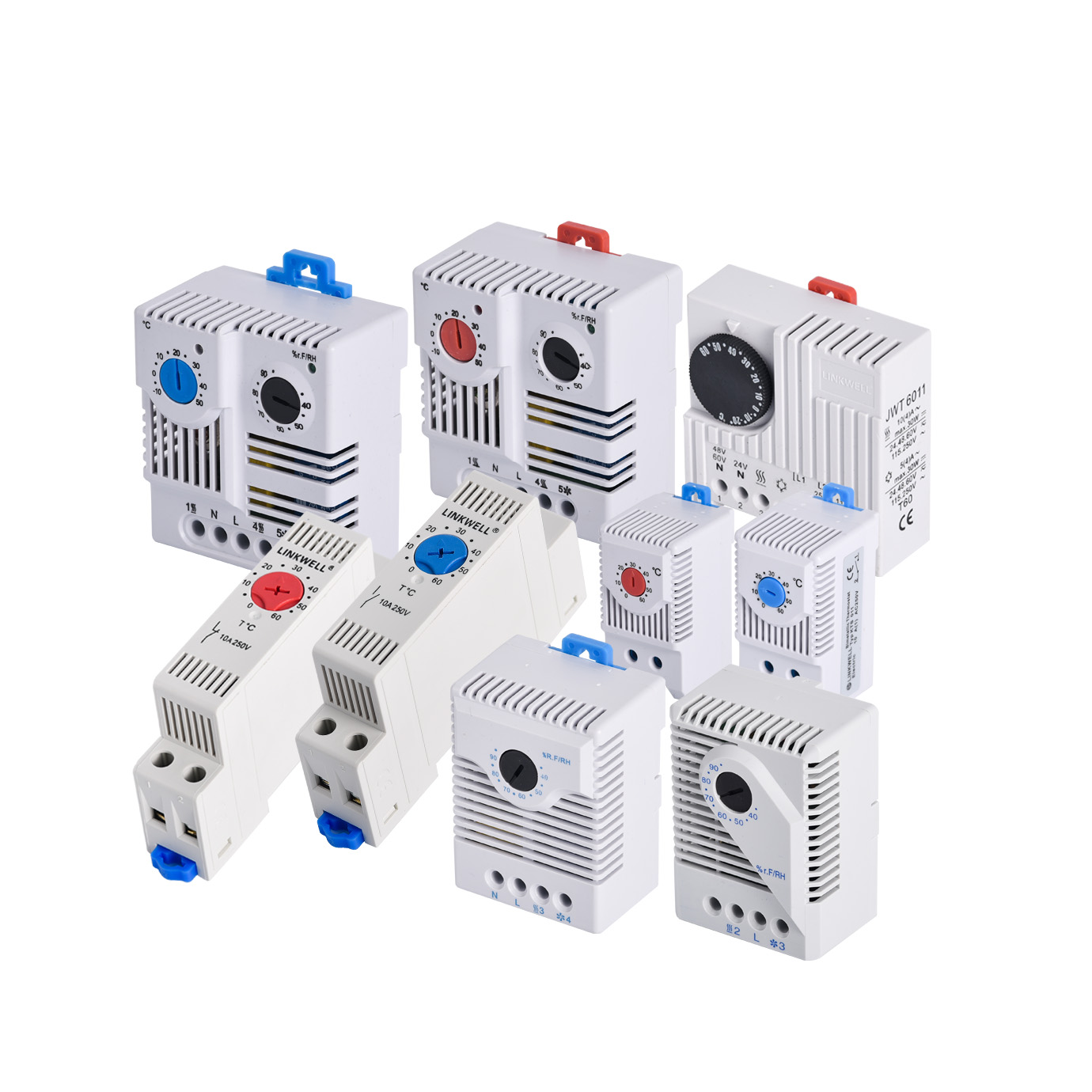

LINKWELL thermostats are designed for harsh industrial environments and feature the following highlights:
Precise Hysteresis Control: Provides a stable temperature buffer zone, easily adjustable via intuitive dials.
Wide Temperature Control Range: Covers extensive needs for both heating and cooling, suitable for various climatic conditions.
Robust and Durable Design: Utilizes high-quality materials, compact structure, easy to install and clean.
International Safety Certifications: Products comply with international standards such as CE and RoHS, with some models certified by UL, ensuring global safety and compliance.
High Protection Ratings: Offers protection ratings like IP65, effectively safeguarding against dust and water, suitable for outdoor and dusty, humid environments.
LINKWELL thermostats with hysteresis have been successfully applied in numerous critical fields:

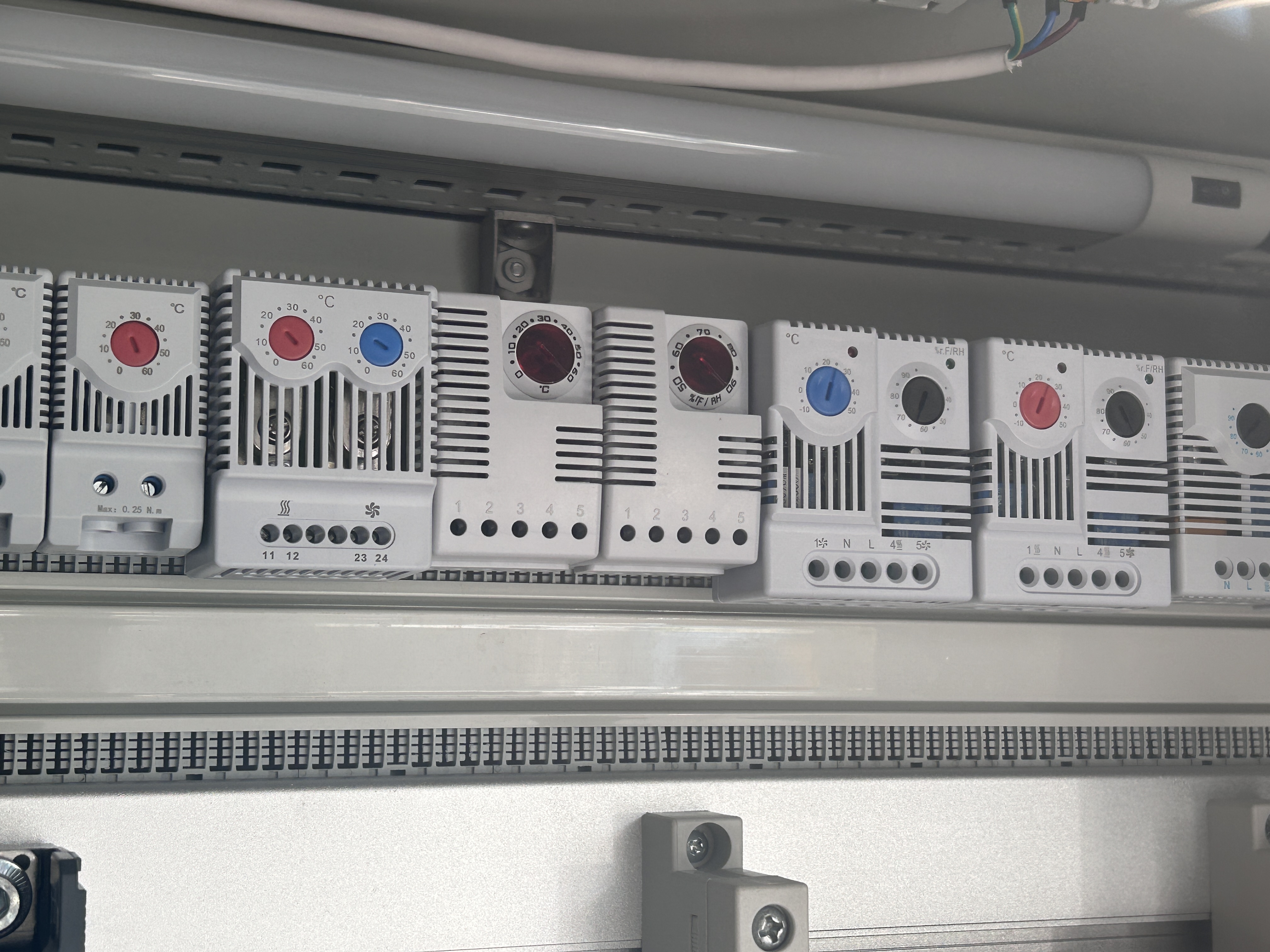

Industrial Automation Control Cabinets
Outdoor Cabinets for Communication Base Stations
Power System Distribution Cabinets
Traffic Signal Control Boxes
New Energy Charging Piles
In these applications, they faithfully protect internal electrical equipment from temperature and humidity threats.
Selecting the correct thermostat is the first step to ensuring effective protection. Consider the following key criteria:
Control Requirements: Determine whether you need heating, cooling, or both (dual-function thermostat).
Temperature and Hysteresis Settings: Based on the allowable operating temperature range of your equipment and your stability requirements, choose a model with adjustable or fixed hysteresis bands.
Electrical Parameters: Match your power supply voltage (e.g., 24V AC/DC, 110VAC, 220VAC) and load current.
Environmental Adaptability: Consider the installation environment's temperature, humidity, and presence of corrosive gases, and select products with appropriate protection ratings and materials.

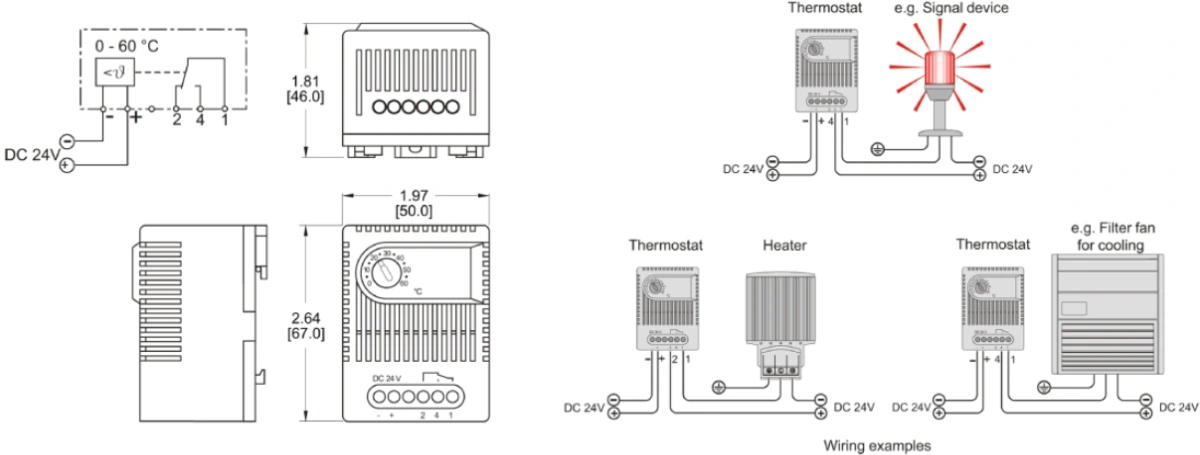

Installation and Dimensions: Ensure the physical size and installation method (e.g., DIN rail mount, panel mount) of the thermostat suit your enclosure.
Professional Support from LINKWELL:
We not only provide standard products but also offer OEM/ODM customization services. Whether you have special size or voltage requirements or need to integrate specific functions, our technical team can provide tailored solutions and comprehensive technical support.
In the safety protection system of electrical enclosures, a reliable thermostat with hysteresis is far from a supporting role; it is the first line of defense in ensuring internal environmental stability and preventing failures. Through intelligent temperature management, it fundamentally reduces the risks of overheating, condensation, and equipment wear, safeguarding your critical equipment and continuous production.
Investing in a thermostat from a reliable and professional brand like LINKWELL is an investment in longer equipment lifespan, lower operational and maintenance costs, and greater peace of mind in your production operations.
Q: Does the hysteresis function mean less precise temperature control?
A: On the contrary. Hysteresis achieves a higher level of "application precision." It prevents system oscillation around the setpoint, keeping the actual operating temperature more stable within your desired range. This is more important for industrial equipment than instantaneous point accuracy.
Q: Can LINKWELL thermostats be used in extreme outdoor environments?
A: Yes. We offer product series with wide operating temperature ranges and high protection ratings (e.g., IP65), specifically designed to handle outdoor day-night temperature variations, rain, snow, and dusty environments.
Q: How do I set an appropriate hysteresis band?
A: It generally depends on the sensitivity of your equipment and environmental variability. For most electrical enclosures, a hysteresis band of 2°C to 5°C is a good starting point. LINKWELL product manuals provide guidance, and our technical support team can also offer advice based on your specific application.
Q: Is regular calibration required after installation?
A: LINKWELL thermostats use high-quality sensing elements with excellent long-term stability and generally do not require frequent calibration in standard industrial environments. It is recommended to check for any significant deviation in display or activation temperature during annual equipment maintenance.
Take action now to upgrade professional protection for your electrical enclosures!
If you are looking for reliable cabinet temperature control solutions or have any questions about thermostats with hysteresis, the professional team at LINKWELL Intelligent Control is ready to assist you.
