Many electrical purchasers and engineers notice significant price gaps when requesting quotes for control transformers with the same rated capacity. There is no fixed pricing standard for control transformers. VA rating, voltage specifications, phase count, winding material, safety certifications, custom requirements, order volume, on-site working conditions and installation requirements all directly affect the final cost.
Many buyers tend to only compare upfront prices while overlooking long-term operating costs. This often results in transformer overheating, shortened service life, or failed project acceptance. Drawing on real-world project experience, LINKWELL systematically breaks down the pricing logic of control transformers and shares core selection principles to help you pick the right control transformer in one go.
VA rating is the core indicator of a control transformer, representing its load-carrying power.
＜50VA Micro transformers: Used for indicator lights and small control components. Low cost, suitable for small cabinets and simple equipment.
50~500VA: Mainstream specification for factory and complete equipment control cabinets, adopting air or oil cooling.
＞500VA, even above 1000VA: Deployed for large automated production lines and heavy-duty equipment with higher costs.
✅ Selection Principle: Calculate the total load power of all control circuits and select a model with VA slightly higher than the total load. Undersized capacity easily causes overheating and burnout; blindly over-specifying will bring unnecessary procurement costs.
Transformers step down high voltage to safe voltage for control circuits. Common primary-side voltages in industrial sites: 230V, 380V, 480V; secondary-side output mostly ranges from 24V to 120V. Typical voltage pairs: 230V → 24V 380V → 110V 480V → 120V
Standard voltage specifications come with friendlier pricing. Non-standard voltages or multi-tap multi-output designs incur extra processing costs and higher quotations. Voltage matching directly relates to equipment safety and energy efficiency; specifications must strictly match on-site power supply during selection.
Single-phase control transformer: Simple structure, low cost and easy installation. Suitable for small equipment and standalone control cabinets.
Three-phase control transformer: Higher load capacity and stable power supply. Used for large production lines and complete factory systems with higher cost than single-phase types.
Project scale is the core factor for phase selection. Large industrial systems prefer three-phase power supply to guarantee stable operation.
Frequency refers to the number of current reversals per second, commonly 50Hz and 60Hz. Mismatched frequency parameters will lead to severe risks:
A 50Hz transformer generally works normally on a 60Hz system.
A 60Hz transformer applied directly to a 50Hz power grid will cause magnetic core saturation, excessive temperature rise, accelerated insulation aging, shortened service life and even damage to downstream equipment.
Important Reminder: Confirm on-site grid frequency before procurement to avoid later overheating and extra operation & maintenance costs.

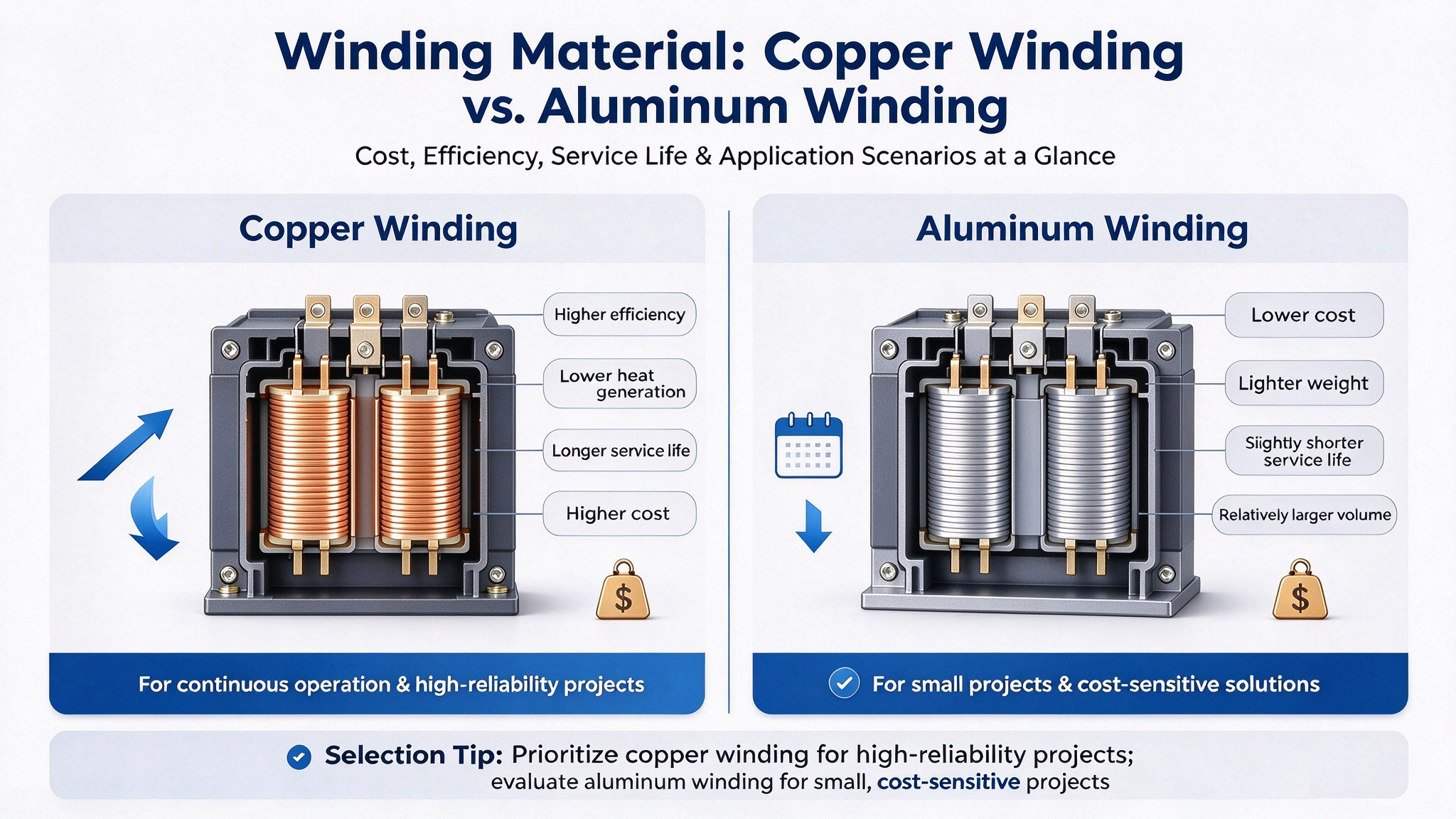

Windings are the primary source of cost differences. Choosing between copper and aluminum is the most common dilemma for purchasers:
Copper Winding: Higher efficiency, lower heat generation and longer service life. Material cost is 15%~25% higher. Ideal for long-term continuous operation and high-reliability projects.
Aluminum Winding: Lower procurement cost and lighter weight. However, it has weaker electrical conductivity, larger volume at equal capacity and slightly shorter expected service life. Suitable for low-cost small-scale projects.
Note: Copper price fluctuates with the market and directly affects transformer quotations.
The magnetic core is the heart of a transformer and determines loss and energy efficiency. High-quality silicon steel cores reduce no-load loss and improve overall efficiency. Premium cores mean higher initial investment yet lower long-term energy consumption. Inferior cores generate continuous heat, increasing electricity bills and failure risks.
Insulation class indicates the transformer’s high-temperature resistance. A higher insulation class allows higher operating temperature, better heat resistance and overload capacity, enabling stable long-term operation in high-temperature environments. Quality insulation also suppresses internal micro-arcs and slows aging. Prioritize checking insulation class for projects in high-temperature conditions.
Item | Standard Transformer | High-reliability Transformer |
|---|---|---|
Material Quality | Basic materials | High-grade materials |
Testing Standard | Routine tests | Strict full-item tests |
Environmental Protection | Limited protection | Enhanced dustproof, waterproof & anti-corrosion coating |
Expected Service Life | 5–10 years | 15–25 years |
High-reliability transformers require higher upfront investment but fewer failures and longer replacement cycles. For continuously running production lines with massive downtime losses, they deliver better long-term overall benefits.
Selection Tip: Verify factory test items and request test reports. Inform suppliers in advance about high-temperature, dusty or vibrating environments for protection upgrades.
Safety certifications are mandatory for export projects, overseas factories and equipment for North America / EU markets. Missing certifications can lead to project shutdown, rejected on-site acceptance and heavy rework costs.
Major certification standards:
IEC 60076-11: International standard for transformer basic safety and reliability
UL / CE / ISO: Mandatory compliance certifications for European and American markets
RoHS: Hazardous substance restriction for environmental compliance
Fire safety related regulations
Cost impact of different test types:
Routine factory test: Basic mandatory inspection, +3~5% cost
Type test: Verification under severe working conditions, +5~10%
Special custom project test: +2~5%
ISO system certification audit documents: +1~2%
Full set of certifications and testing increases overall price by roughly 8%~15%. This investment mitigates project compliance risks and is indispensable for industrial projects.
Basic customization (mounting brackets, terminal adjustment): +10%~20%
Medium customization (non-standard voltage, additional voltage taps): +20%~50%
Advanced customization (special cooling, SCADA integrated control): +50%~100% or higher
Mission-critical special customization: +200%~300%
Custom products require independent engineering design, mold opening and small-batch production, so their cost is significantly higher than standard off-the-shelf models. Prefer standard products whenever possible to cut budget and lead time.
Compact custom enclosures are required for cramped control cabinets, while high-power units need large-capacity housings. Non-standard dimensions require redesigned molds and structures, raising costs by up to approximately 70%. Always measure cabinet installation space before placing orders.
Common types: wall-mounted (floor-space saving), floor-standing (heavy-load high-capacity), panel mount (built-in inside control cabinets). Basic installation solutions have minor price fluctuations. Outdoor, humid or corrosive environments demand protective enclosures, sealed structures and shock-absorbing gaskets; protection upgrades incur extra fees.
Working conditions directly affect transformer service life:
Temperature: Industry experience shows insulation life halves for every 10℃ rise in ambient temperature. High-temperature scenarios require high insulation class and enhanced heat dissipation structures.
Humidity: Humid environments degrade insulation strength and trigger internal rust, even short circuits. Sealed housings and moisture-proof insulation are required.
Dust, chemicals & vibration: Sites with heavy dust, chemical corrosion or continuous vibration need anti-corrosion coating, reinforced structures and higher IP protection ratings.
Do not simply select general indoor models. Inform suppliers of harsh working conditions in advance to match proper protection schemes.
Original manufacturer (e.g. LINKWELL): Supports in-depth customization, better pricing for bulk orders and direct technical support, with relatively longer lead time.
Distributor: Sufficient stock, fast delivery for small-batch urgent orders, usually higher unit price and limited customization capability.
Recommendation: Contact manufacturers directly for large-scale or non-standard customized projects; choose distributors for small-batch urgent standard stock items.
Bulk procurement qualifies for tiered discounts; unit cost decreases as order quantity rises. Plan large projects uniformly and combine orders to obtain volume pricing.
Variations in local labor, raw materials, sea/land freight and tariffs create quotation differences across regions. For cross-region procurement, calculate freight, customs clearance costs, after-sales and warranty terms instead of only comparing bare-unit prices.
Many purchasers only compare bare-machine prices on quotation sheets, which is the most common misconception.
Total Cost of Ownership (TCO) = Purchase Price + Energy Loss + Installation & Commissioning + Logistics + Certification & Testing + Multi-year Maintenance & Spare Parts Cost
Long-term calculation example (20-year lifecycle):
Cost Item | Estimated Cost |
|---|---|
Equipment Purchase Price | $800,000 |
Long-term Energy Loss | $350,000 |
Installation & Commissioning | $120,000 |
Certification & Testing | $25,000 |
Logistics & Transportation | $30,000 |
Maintenance & Spare Parts | $150,000 |
20-Year Total Cost of Ownership | $1,475,000 |
We can see that the initial equipment purchase price accounts for only part of full-lifecycle cost. For low-efficiency, inferior transformers, later expenses for electricity, maintenance and downtime losses will far exceed the savings gained from lower upfront prices.
✅ Rated VA, primary / secondary voltage, frequency ✅ Voltage regulation range, temperature rise and cooling method ✅ Insulation class, IP protection, safety certifications ✅ Installation form, enclosure dimensions ✅ Warranty and after-sales maintenance capacity
Incomplete parameter descriptions leading to quotation deviations and delivery delays
Chasing the lowest price at the sacrifice of winding material, insulation and safety certifications
Ignoring on-site environment and installation requirements, resulting in unusable equipment upon delivery
Neglecting supplier technical capability, lacking technical support after failures
Core Advice: When comparing prices, request itemized quotations from suppliers with clear inclusion / exclusion terms, and check material, testing and certification clauses behind quotes.
The price of a control transformer is not a simple figure; it is determined jointly by capacity, electrical specifications, material craftsmanship, certifications, customization, working conditions and order scale. Before inquiry, organize project VA requirements, voltage, phase count, frequency, installation method, on-site environment and certification requirements to get accurate, comparable quotations.
With rich supporting experience for control cabinets, LINKWELL can assist you in matching standard or customized control transformers according to your project conditions and electrical cabinet plans. A quality procurement decision pursues not merely the lowest upfront quote, but also balances safety, reliability, service life and total lifecycle cost.
Q1: What is a control transformer?
A: A control transformer steps down voltage to a safe level for control circuits to protect automation equipment, relays, contactors and other control components. It is widely applied in machine tools, control cabinets and automated production lines.
Q2: Why is there such a big price gap for control transformers?
A: VA capacity, winding material, non-standard voltage, certification grade, protection scheme, customization and purchase volume all affect pricing. Custom models, copper windings, UL/CE certified and high-protection versions cost more.
Q3: How do I determine the required VA rating?
A: Sum the power consumption of all components in the control circuit, and select a transformer with VA slightly larger than total load with safety margin to guarantee system stability.
Q4: Does better material guarantee longer service life?
A: Yes. Premium windings, magnetic cores and insulation materials reduce heat generation and aging rate, cut failures, extend equipment service time and lower maintenance frequency.
Q5: Can standard transformers be directly used for outdoor projects?
A: Not recommended. Outdoor applications require dedicated outdoor-type transformers with rainproof, dustproof enclosures and anti-corrosion protection. Confirm operating environment with suppliers before selection.
Q6: What information needs confirmation before placing an order?
A: VA rating, input & output voltage, phase count, frequency, installation method, on-site temperature/humidity/dust & corrosion environment, and project certification requirements. Share all information with suppliers to select the right model at the first attempt.
