In the field of industrial automation, the stable operation of equipment inside electrical control cabinets directly impacts the efficiency and safety of the entire production line. Temperature control is the most critical factor in this equation. Up to 65% of IT and equipment failures are attributed to inadequate cooling. Proper fan placement and airflow management go beyond simple heat dissipation; they provide effective protection for your investment.
Based on professional airflow principles and practical experience, this article will detail how to achieve optimal cooling inside your enclosure through scientific fan layout, and introduce how Linkwell can assist you with our Excellence products.
I. Core Principle: Manage Airflow Like a River
Think of the air inside your cabinet as a river that needs a clear path to flow. The core of optimal cooling lies in ensuring a continuous, stable airflow from the intake to the exhaust, carrying heat away.
Intake and Exhaust Strategies:
Bottom Intake: Draws in cooler air.
Top Exhaust: Efficiently removes hot air by leveraging its natural tendency to rise.
Placing intakes and exhausts at different heights (e.g., diagonally or bottom/top) maximizes airflow and effectively prevents hotspots.
Airflow Direction and Pressure Systems:
Choosing the right pressure system is crucial for both dust prevention and cooling.
Positive Pressure System: Fans push filtered air into the enclosure, creating slightly higher internal pressure. This effectively prevents outside dust from entering through gaps, making it ideal for dusty environments. Linkwell fan filter units are the ideal choice for this system.
Negative Pressure System: Fans exhaust hot air from inside, but this may draw in unfiltered air through unsealed openings.
Mixed Flow System: Combines the advantages of both, offering efficient heat dissipation while maintaining internal cleanliness. This is an ideal solution recommended for various environments.
II. Step-by-Step Fan Placement Guide
Follow these steps to systematically plan and optimize enclosure cooling:
Assess Cabinet Layout and Heat Sources:
First, ensure the cabinet is placed in a clean, well-ventilated area with sufficient space around it.
Use a thermal imaging camera while equipment operates under normal or peak load to identify hotspots inside the cabinet. This is key to determining where to direct cooling resources.
Select Intake and Exhaust Locations:
Based on hotspot distribution, place intake fans at the front/bottom of the cabinet and exhaust fans at the rear/top. This layout creates a straight airflow path through the enclosure.
Determine Fan Quantity and Size:
Calculate the total heat load (sum of all equipment power consumption, considering external heat sources).
Determine the target internal/external temperature difference.
Estimate required airflow using the formula: CFM = (3.17 × Power in Watts) / Temperature Difference (°F) .
Select the appropriate fan model based on calculation results and internal cabinet resistance. Linkwell offers a variety of fan sizes and performances to precisely match your needs.
Achieve Uniform Air Distribution:
Distribute fans evenly or place them strategically near heat sources to ensure air reaches every corner. Avoid localized overheating caused by uneven distribution, which effectively reduces energy costs and extends equipment life.
III. Mainstream Cooling Configurations and Layouts
Depending on the cabinet structure and equipment layout, you can choose one or a combination of the following airflow patterns:
Front-to-Back Airflow (Most Common): Intake fans at the front, exhaust fans at the rear. Air sweeps linearly across all components, providing rapid heat dissipation. Widely used in server racks and automation panels. Linkwell tube axial fans are ideal for this application.

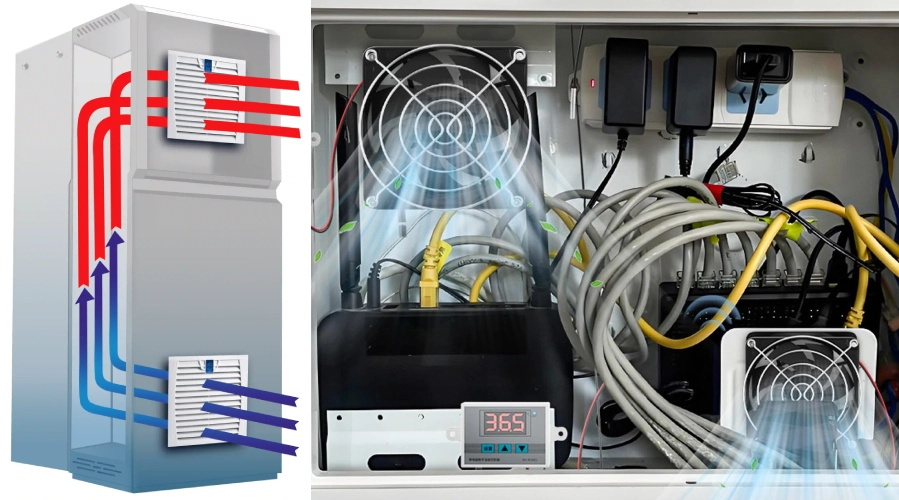

Bottom-to-Top Airflow: Intake at the bottom, exhaust at the top. Perfectly aligns with the physics of rising hot air, especially suitable for tall cabinets or enclosures with stacked components.
Side-to-Side Airflow: Air moves from one side of the cabinet to the other. Suitable for cabinets with wide layouts or side-mounted equipment.
IV. Optimization and Maintenance: Keys to Preventing Hotspots
Even with correct fan installation, neglecting details can significantly reduce cooling efficiency.
Cable Management: Tangled cables create "air dams" that block airflow. Use cable ties and raceways to organize wiring, and seal unused cable openings to ensure a clear path.
Using Baffles and Filters:
Baffles: Direct airflow precisely to critical areas, preventing the formation of stagnant "dead zones."
Filters: Linkwell fan filter units capture dust before it enters the cabinet, protecting sensitive electronic components. Regular cleaning or replacement of filters is crucial.
Regular Maintenance Schedule:
Monthly: Inspect and clean/replace filters.
Quarterly: Check fan motors for unusual operating sounds or vibrations.
Clean fan blades and ventilation components using compressed air and 70% isopropyl alcohol (always disconnect power first).
V. Avoiding Common Fan Placement Mistakes
Blocking Airflow Paths: Avoid placing fans or vents too close to walls or obstructing them with debris. This forces fans to work harder, increasing energy consumption and accelerating component wear.
Incorrect Fan Mounting Direction: Always verify the fan's directional arrow. Intake fans point into the cabinet; exhaust fans point out. Incorrect orientation can trap hot air.
Cabinet Over-pressurization: More fans are not always better. Too many fans or blocked vents can cause turbulence, noise, and uneven cooling. Balance intake and exhaust airflow.
Conclusion
Correct fan placement is not a one-time task. When you change the cabinet layout or add new equipment, reassess and adjust fan positions accordingly. Adhere to a regular inspection and maintenance schedule to ensure airflow remains unobstructed.
