In any well-organized electrical panel, control cabinet, or automated equipment, you will almost always find an inconspicuous yet vital metal strip—the DIN rail. Serving as the fundamental supporting structure in modern electrical installations, it quietly carries and secures everything from miniature circuit breakers to complex PLCs. This article will provide an in-depth look into the world of DIN rails, from standard dimensions and different types to correct installation and maintenance, assisting you in making informed choices for your next project.
DIN stands for Deutsches Institut für Normung (German Institute for Standardization). A DIN rail is a metal rail that complies with a series of standards established by this organization. Its introduction revolutionized the installation of electrical components.
The core advantages of DIN rails include:
Standardization and Compatibility: Global adherence to unified standards (such as IEC/EN 60715) ensures that equipment from different manufacturers can be mounted on the same rail.
Rapid Installation and Maintenance: The snap-on design allows engineers to quickly install or remove devices without drilling, significantly improving assembly and maintenance efficiency.
Neatness and Safety: Aligning all devices in a straight line organizes wiring, improves heat dissipation, and prevents failures caused by loosening or vibration.
Flexibility and Scalability: Components can be easily added, removed, or rearranged, giving the system considerable adaptability to meet future needs.

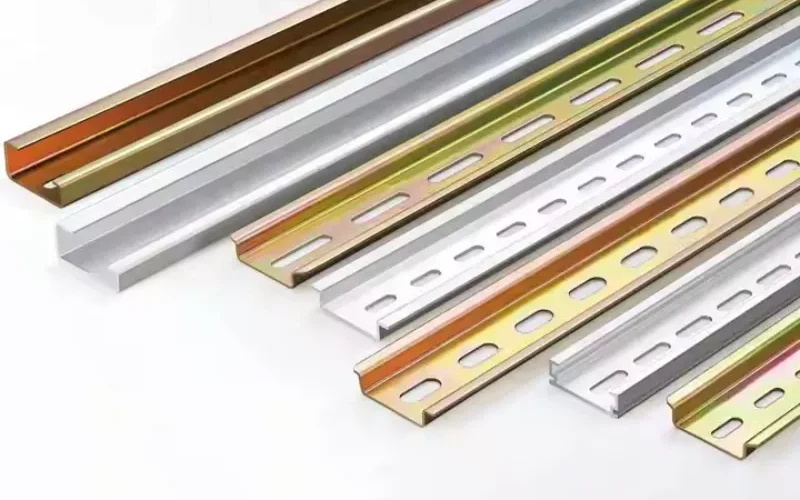

Selecting the correct DIN rail is the first step to ensuring a successful installation. Below are the most common types and their standard dimensions.
This is the most prevalent and widely used type, with a cross-section resembling a top hat.
Standard Top Hat Rail Dimensions Table:
| Type | Width (mm) | Height (mm) | Common Thickness (mm) | Primary Applications |
Standard | 35 | 7.5 / 15 | 1.0 – 1.5 | Circuit breakers, relays, terminal blocks, PLCs, contactors – covers most standard electrical equipment. |
Mini | 15 | 5.5 | 1.0 | Signal terminals, compact relays, small devices where space is limited. |
Note: The 35mm wide, 7.5mm or 15mm high Top Hat rail meets the requirements for the vast majority of common applications and is a frequently used universal model.

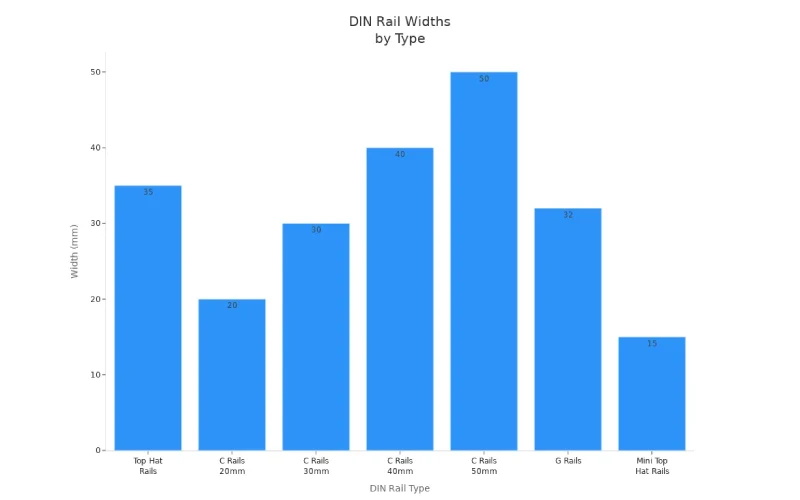

When applications fall outside the conventional scope, C-section and G-section rails provide professional solutions.
C-Section vs. G-Section Rail Comparison Table:
| Type | Width (mm) | Height (mm) | Section Profile | Key Advantages & Typical Applications |
C-Section Rail | 20, 30, 40, 50 | 15 – 25 | C-shaped section with inner channel | Heavy-duty equipment: Uses a clamping mechanism within the inner channel for stronger mechanical support. Suitable for high-power supplies, large contactors, etc. |
G-Section Rail | 32 | 15 | Deep G-shaped channel | High-vibration environments: Unique latching design prevents equipment from loosening under vibration. Common in rail transit, marine applications, heavy machinery, and other harsh industrial environments. |

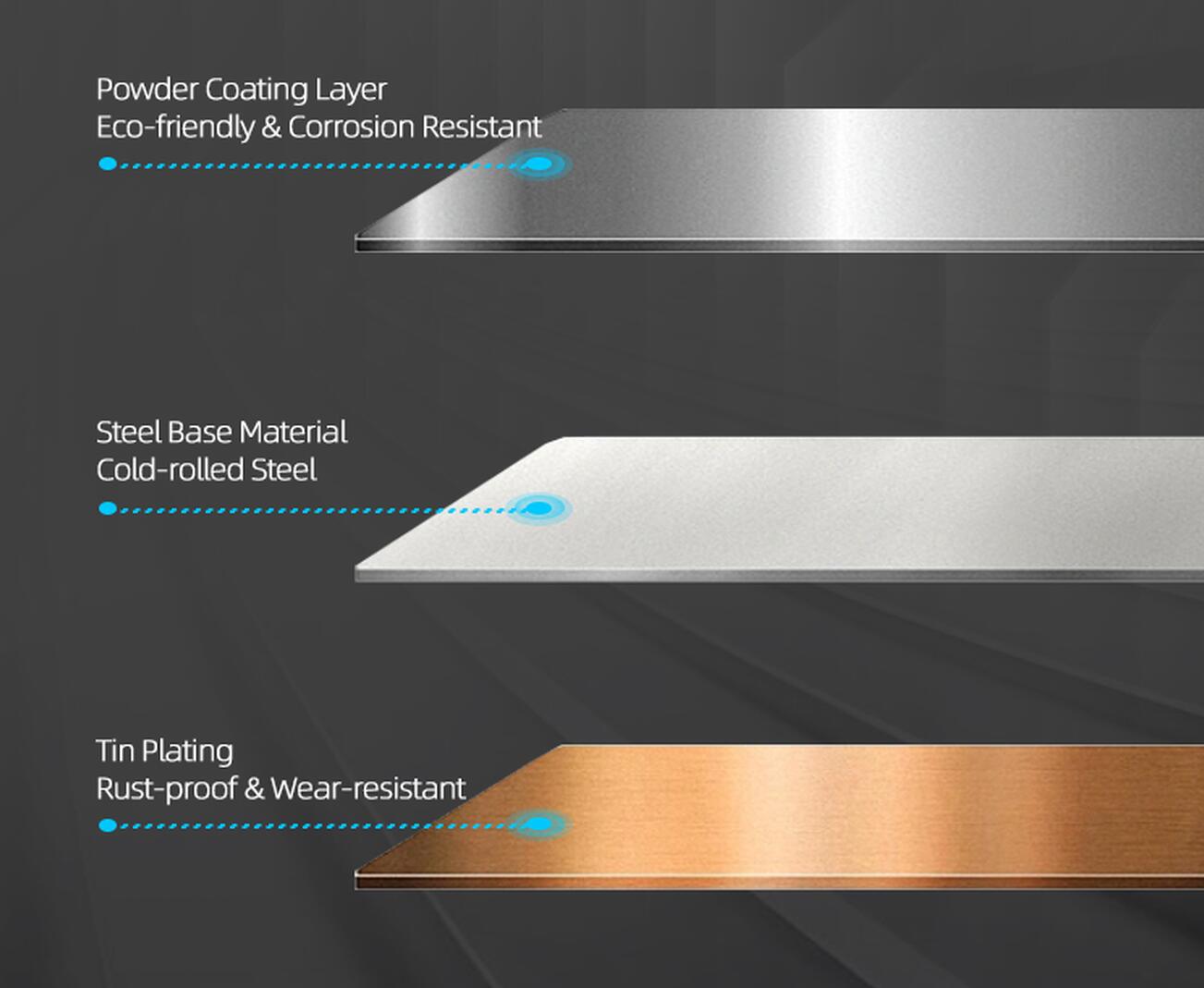

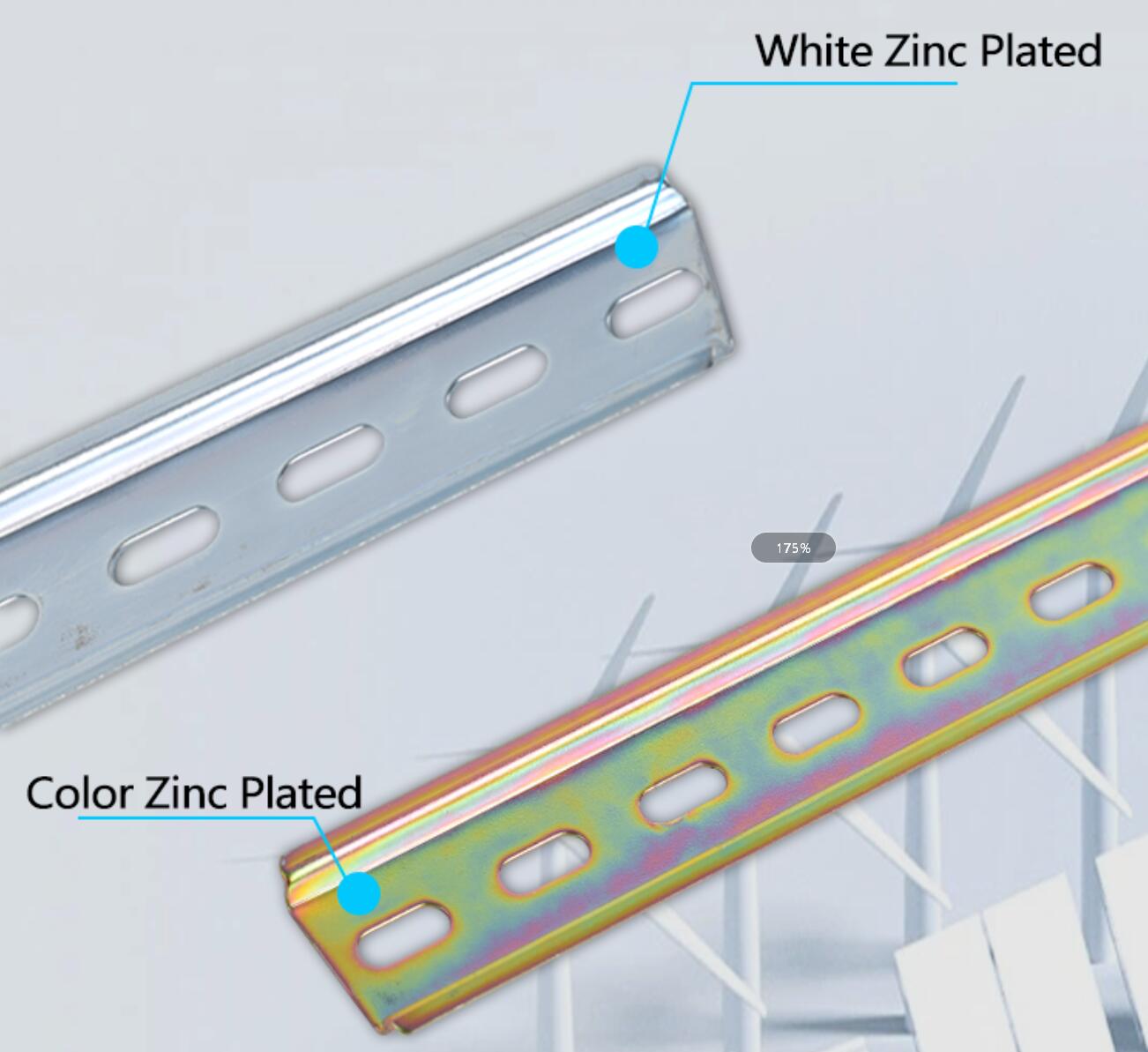

The material of the rail directly affects its service life and suitable application environment.
DIN Rail Common Material Comparison Table:
| Material | Advantages | Suitable Environments |
Cold-Rolled Carbon Steel | High strength, cost-effective, good corrosion resistance | General industrial and commercial environments; a common choice for most indoor applications. |
Aluminum | Lightweight, easy to cut and install, naturally corrosion-resistant, non-magnetic | Weight-sensitive applications, or situations requiring avoidance of magnetic interference with sensitive electronic equipment. |
Stainless Steel | Extremely high corrosion resistance, sturdy and durable | Environments with high humidity or high corrosiveness, such as food & beverage, chemical, marine, and outdoor applications. |
Correct installation is key to leveraging the full effectiveness of a DIN rail.
Installation Steps:
Planning and Preparation: Determine the required rail length based on the number and type of devices. Ensure the mounting surface is flat and clean.

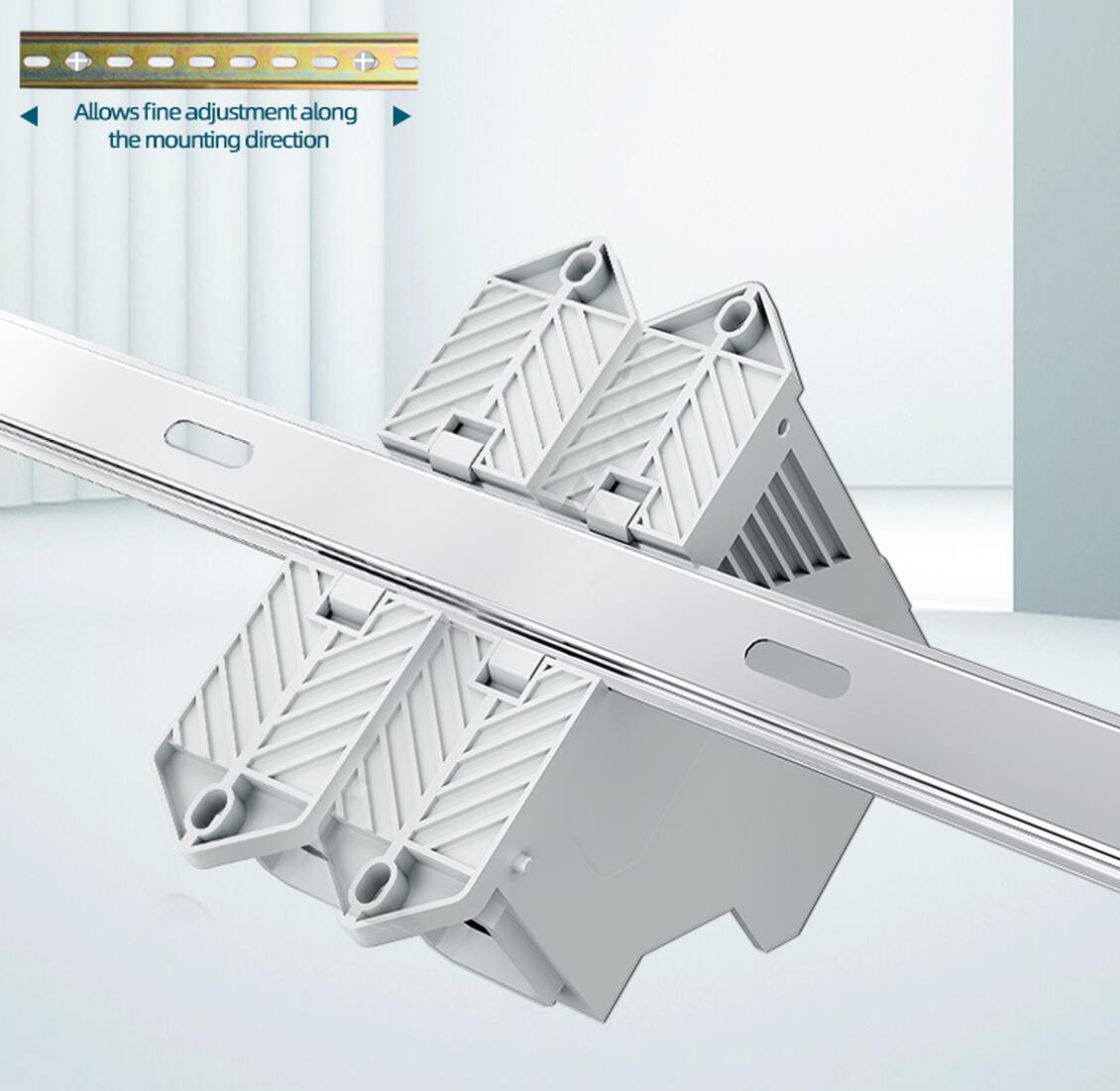

Positioning and Fixing: Use a spirit level to ensure the rail is straight. Then, secure it firmly using an adequate number of screws or fasteners, spaced evenly along its length to prevent deformation from vibration or equipment weight.

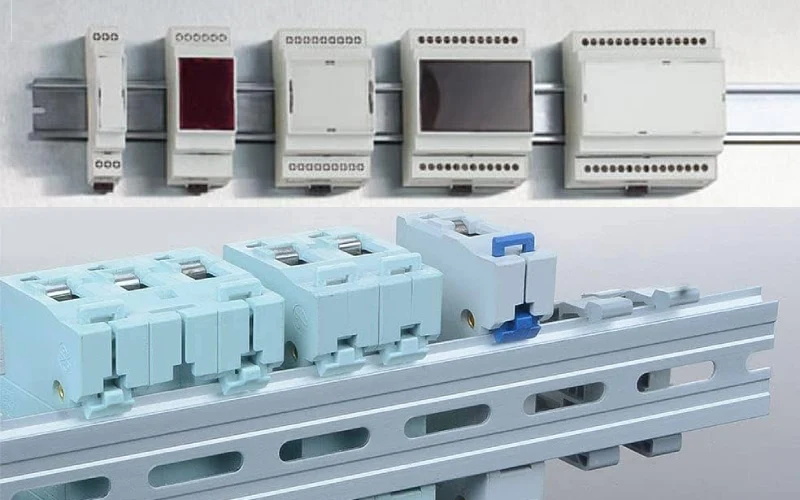

Mounting Devices: Snap devices like circuit breakers and terminal blocks onto the top edge of the rail. Press down gently until a 'click' sound confirms they are locked in place.
Post-Installation Check: After installation, gently tug each device to confirm it is securely locked onto the rail.
Maintenance Recommendations:
Regular maintenance helps prevent problems. It is recommended to perform checks every six months to a year:
Check for Looseness: Look for any loose devices or wiring connections.
Prevent Corrosion: In humid or dusty environments, check the rail for white powder (aluminum corrosion) or rust.
Clean Surface: Wipe away accumulated dust with a dry cloth to keep the rail surface clean.
At Linkwell, we emphasize the reliability of our product components as the foundation for stable system operation. Our complete range of DIN rail solutions strictly adhere to international standards (such as IEC 60715) and have obtained CE, RoHS, UL, and other certifications, ensuring global compatibility and consistent quality.
Our services also include:
Customized Production: Providing non-standard lengths, specific colors, and even private labeling services to meet your branding and project needs.
OEM/ODM Support: Collaborating closely with you to co-develop unique products for specific applications.
Stable Supply and Support: Ample inventory ensures fast delivery, supported by a professional technical team for pre-sales and after-sales service.
Although small, the DIN rail is an indispensable core component in electrical engineering. Selecting the appropriate type, size, and material, and following correct installation practices, will bring lasting reliability, safety, and convenience to your entire electrical system.
