Abstract: In control cabinet and industrial electrical design, creepage distance and clearance distance are core indicators for terminal block selection and overall equipment safety compliance. Many engineers confuse these two concepts, resulting in rework and failed acceptance at the later stage of projects. Combined with IEC and UL standards, this article explains definitions, calculation methods and measurement points, together with practical selection cases to help you fully master terminal block safety design.
Many new electrical designers mix up these two parameters, yet they protect against different risks. Both must meet requirements in safety compliance tests.

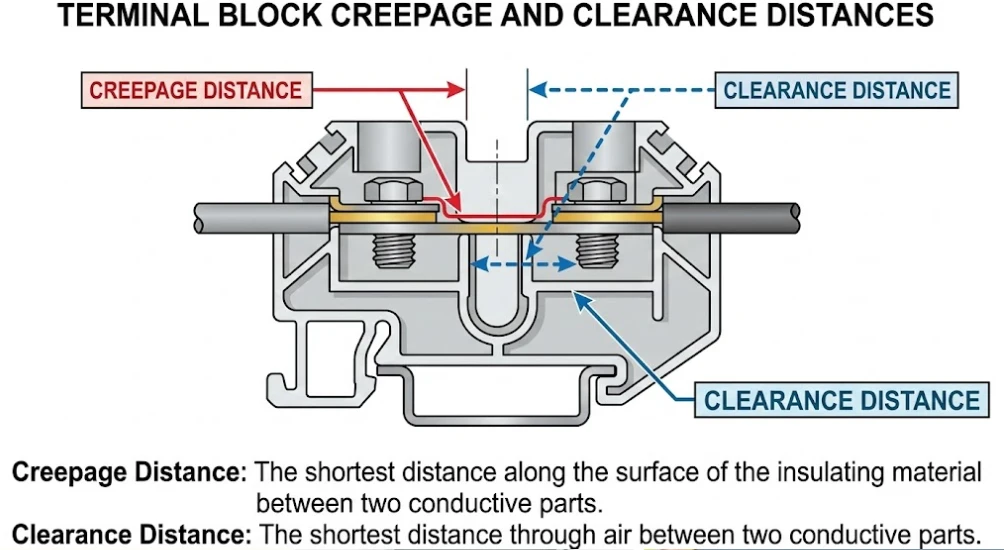

Creepage Distance: The shortest path between two conductive parts along the surface of insulating material. When dust, moisture or contaminants exist in the environment, conductive paths may form on the insulating surface, causing tracking and surface flashover. Creepage distance is designed to prevent arc leakage along the insulating surface. Higher pollution levels require greater creepage distance.
Clearance Distance (Air Clearance): The shortest straight-line distance through air between two conductive parts. It resists voltage spikes and transient overvoltage to prevent air breakdown and arc short circuits.
Term | Path | Core Risk Protected |
|---|---|---|
Clearance Distance | Straight line through air | Air breakdown and electric arcs caused by transient overvoltage |
Creepage Distance | Path along the surface of insulating material | Surface leakage and tracking induced by humidity and dust contamination |

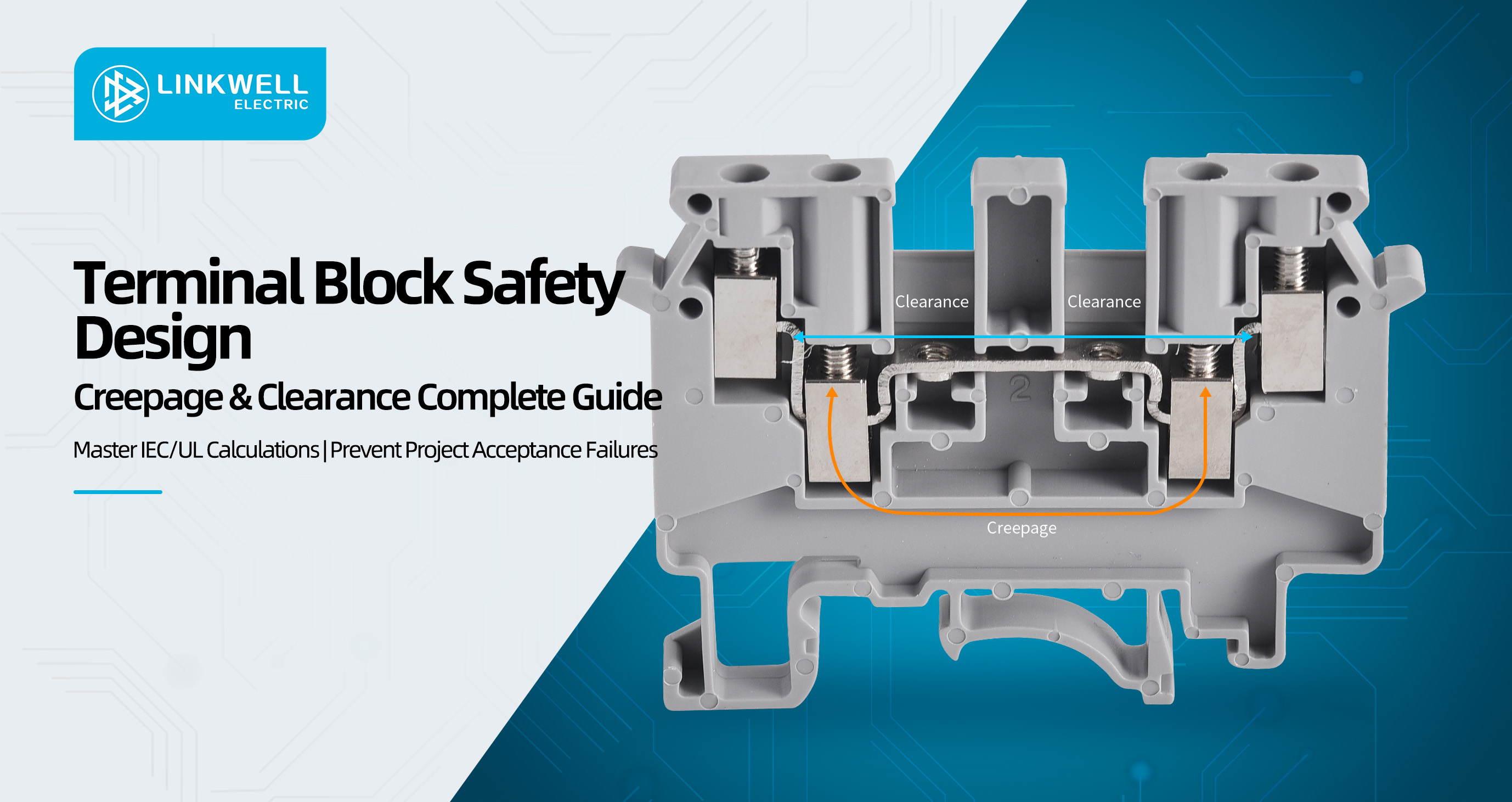

Simple distinction: Clearance is a straight line through air; creepage is the "crawling path" along the insulating surface.
Creepage and clearance distances are not merely safety clauses on paper. They are directly related to equipment and personal safety:
Prevent electric arcs and surface leakage to avoid equipment burnout and electric shock accidents.
Higher requirements for both distances are mandatory for high-voltage, dusty and humid industrial environments.
Compliance with international standards including IEC, UL, CE and RoHS enables product testing, export and project acceptance.

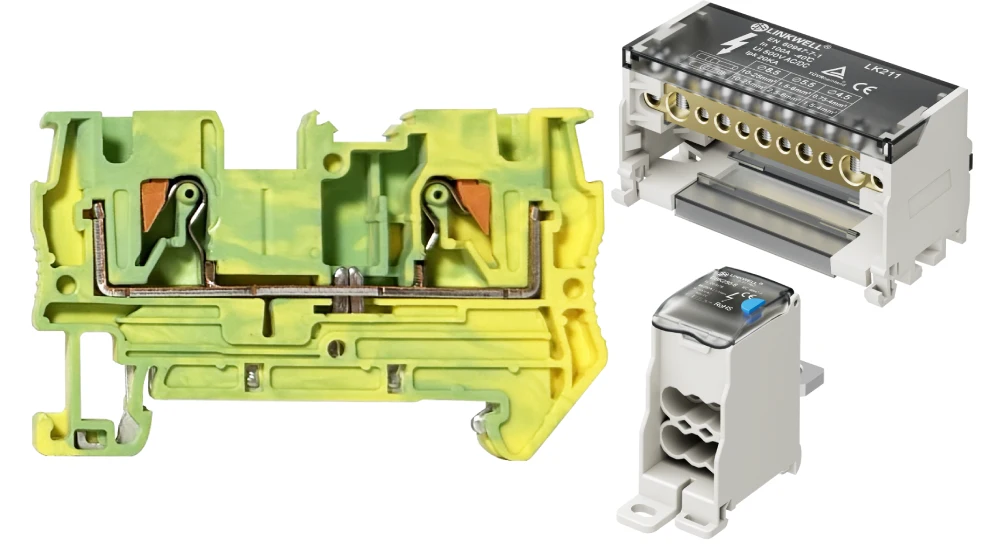

LINKWELL terminal blocks fully consider creepage and clearance requirements at the product design stage. They adopt high dielectric strength insulating substrates and premium conductive materials, with UL, CE, RoHS and IEC certifications for high-voltage and harsh working conditions.
Tip: When selecting products, do not only check the rated current and voltage. Be sure to verify creepage distance, clearance distance and certification marks on the product.
Main standards: IEC 60947, IEC 60664, UL 1059.
IEC standards: Widely adopted in Europe and Asia.
UL standards: Mandatory for projects in North America. Lock in standards for your target market before project kickoff, as limit values vary between standards.
These parameters determine the minimum safety distances:
Operating / Rated Voltage: Higher voltage requires larger clearance and creepage distances.
Pollution Degree: Characterizes environmental contamination, ranging from Pollution Degree 1 (clean & dry) to Pollution Degree 4 (heavy pollution). Higher pollution degrees demand longer distances.
Material Group (CTI Comparative Tracking Index): The ability of insulating material to resist surface leakage and carbonization.
Material Group | CTI Range |
|---|---|
Group I | CTI ≥600 |
Group II | 400 ≤ CTI ＜600 |
Group IIIa | 175 ≤ CTI ＜400 |
Group IIIb | 100 ≤ CTI ＜175 |
Overvoltage Category, Altitude, Temperature & Humidity: Air is thinner at high altitudes and easier to break down, so clearance distance needs to be increased. Humidity degrades insulating surface performance and requires safety margins.
LINKWELL terminal blocks use flame-retardant insulating materials with high CTI values, making it easier to meet creepage requirements under harsh conditions.
After confirming voltage, pollution degree and material group, look up the minimum clearance and creepage distances in the appendix tables of corresponding standards. Reference example:
Insulation Type | Minimum Clearance | Minimum Creepage (Material Group IIIa) |
|---|---|---|
Basic Insulation | 2.0 mm | 3.2 mm |
Reinforced Insulation | 4.0 mm | 6.4 mm |
Tip: Materials with better group rating (higher CTI) allow smaller creepage distance under identical operating conditions.
After obtaining theoretical minimum values from tables, physical samples must be measured. Do not rely solely on datasheets.
Clearance Distance: Use vernier calipers to measure the shortest straight air gap between conductors.
Creepage Distance: Measure the shortest path along the contour of the insulating surface between conductors, not a straight line.
Measurement results must be greater than or equal to the minimum values specified in standards for compliance. LINKWELL modular terminal blocks feature clear measuring points for convenient on-site dimension verification by engineers.
Operating Voltage: AC 400V
Environment: Industrial workshop with moderate dust, Pollution Degree 2
Insulation Material: Group II (CTI 400~600)
Selected Terminal: LINKWELL LDB160, rated current 160A, flame-retardant housing
Check IEC 60664-1: For 400V, Pollution Degree 2, Material Group II, minimum clearance = 3 mm, minimum creepage distance = 5.6 mm.
Measure sample with vernier caliper: Clearance = 4 mm, Creepage distance = 7 mm.
Comparison: Both measured values exceed standard minimum limits, meeting safety requirements.
Additional Safety Note: Short-circuit current rating (SCCR) must be evaluated in project assessment to confirm short-circuit protection capacity of the whole control cabinet. The SCCR value shall be marked on the nameplate of the control cabinet.
Confusing creepage distance with clearance distance, only measuring straight air gap and ignoring the path along insulating surface.
Underestimating on-site pollution degree and selecting low-spec parameters, which pass lab tests but fail in actual working environments.
Only referring to datasheet parameters without physical measurement, ignoring dimension deviations caused by mold tolerances.
Checking safety distances only after complete cabinet assembly, resulting in high rework costs.
Working Condition | Optimization Solution |
|---|---|
High Humidity | Increase creepage distance; adopt insulating coating |
Compact Cabinet Space | Add ribs or grooves on insulation to extend surface creepage path |
High Altitude | Multiply clearance distance by altitude correction factor (approx. 1.5 times at 5000 m) |
High-frequency Switching | Reserve extra safety margin for EMI suppression |
Note: After terminal installation, changes of housing, baffles and mounting positions will alter actual creepage and clearance distances. Re-measurement after assembly is recommended.
✅ Confirm system voltage and overvoltage category
✅ Evaluate pollution degree, temperature, humidity and altitude of the site
✅ Confirm CTI of insulating material and determine material group
✅ Match applicable IEC/UL standards and look up minimum distances
✅ Measure creepage and clearance distances of terminal blocks with vernier calipers
✅ Ensure measured values ≥ standard minimum values
✅ Select UL/CE/IEC certified terminal blocks (e.g. LINKWELL)
✅ Recheck dimensions after complete cabinet assembly
✅ Calculate SCCR short-circuit withstand parameters
Creepage distance and clearance distance are the foundation of industrial electrical safety design. The core principle is early planning, dual-parameter verification and physical measurement. Expensive rework and failed acceptance of many projects stem from neglect of these two parameters in early stages.
Prioritize fully certified LINKWELL terminal blocks for selection. Their creepage and clearance safety validation is completed in the design phase, adapting to high-voltage, dusty, humid and other complex working conditions to reduce design risks. Contact LINKWELL technical support for professional advice if customized solutions are required for special working conditions.
Q: Is it sufficient to meet only one of creepage distance or clearance distance?
A: Both indicators must be satisfied simultaneously. Neither can be omitted.
Q: Why do pollution degree and material group matter so much?
A: Pollution degree determines whether conductive films easily form on insulating surfaces. The CTI value of material determines the insulation’s resistance to carbonization and surface leakage. Together they define the lower limit of creepage distance.
Q: Can LINKWELL terminal blocks be used in high-voltage projects?
A: LINKWELL terminal blocks are fully certified by UL, CE, RoHS and IEC. They can be applied to high-voltage and harsh industrial environments. Just verify parameters against your operating conditions during selection.
