Temperature Rise And Insulation Class of Control Transformers: The Core Selection Logic Determining Service Life, Efficiency And Safety

In industrial control, machine tools, automated production lines and power distribution systems, control transformers are key components ensuring stable voltage and safe equipment operation. Temperature rise and insulation class are the core parameters that determine whether a transformer can operate reliably over the long term and avoid premature failure. Proper matching of temperature rise to insulation class not only prevents overheating failures but also significantly extends service life and reduces maintenance costs. This article systematically explains the relationship between temperature rise and insulation class, relevant standards, selection methods, and how to achieve safe and efficient operation through proper configuration.

1. Temperature Rise and Insulation Class: An Inseparable Safety Baseline

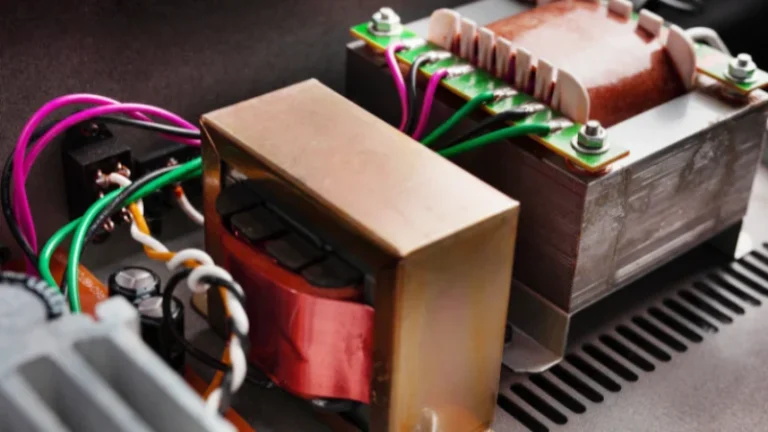

During operation, control transformers generate heat due to copper loss and iron loss. Temperature rise refers to the difference between the winding temperature and the ambient temperature of the transformer, directly reflecting its heating level. Insulation class defines the maximum temperature that insulating materials can withstand continuously, determining the thermal limit and service life of the transformer.

Industry data shows that insulation failure caused by overheating and moisture accounts for the majority of transformer failures. For every 6–8°C increase in temperature, insulation life is roughly halved. Conversely, keeping temperature rise within a safe range can extend transformer life by 2 to 3 times. Therefore, strict matching between temperature rise and insulation class is the primary principle of selection.

2. Clear Interpretation of Core Concepts

1. What is Control Transformer Temperature Rise

Temperature rise = Winding temperature − Ambient temperature

For example, if the ambient temperature is 25°C and the winding temperature reaches 75°C, the temperature rise is 50°C.

Temperature rise must be tested in accordance with international standards such as IEC 60076-2. Common measurement methods include:

• Hot-spot measurement: Monitor the hottest spot in windings using thermocouples or resistance calculations

• Loss simulation: Simulate load and core losses to evaluate accumulated heat

• Temperature sensors: Use thermocouples, RTDs or fiber-optic sensors for accurate readings

• Operating condition correction: Account for airflow and heat dissipation when the transformer is installed in a cabinet or enclosure

Excessive temperature rise directly leads to insulation aging, embrittlement and breakdown, resulting in short circuits, downtime and even safety hazards.

2. What is Insulation Class

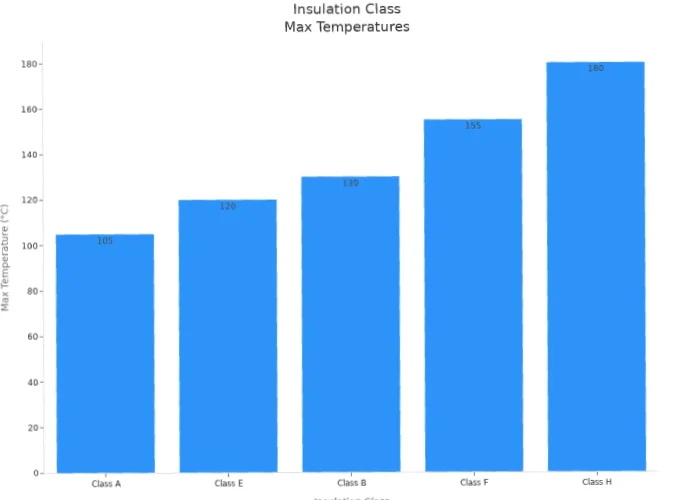

Insulation class indicates the maximum thermal resistance of the insulation system, with different classes corresponding to different materials and applications:

• Class A: Traditional materials such as paper and cotton, maximum temperature 105°C

• Class B: Mica, fiberglass, maximum temperature 130°C

• Class F: High-performance resin composites, maximum temperature 155°C

• Class H: Silicone rubber, polyimide, Nomex, maximum temperature 180°C

• Class N/R: Special high-temperature materials for extreme working conditions

Higher classes allow greater temperature rise and deliver stronger heat resistance and anti-aging performance.

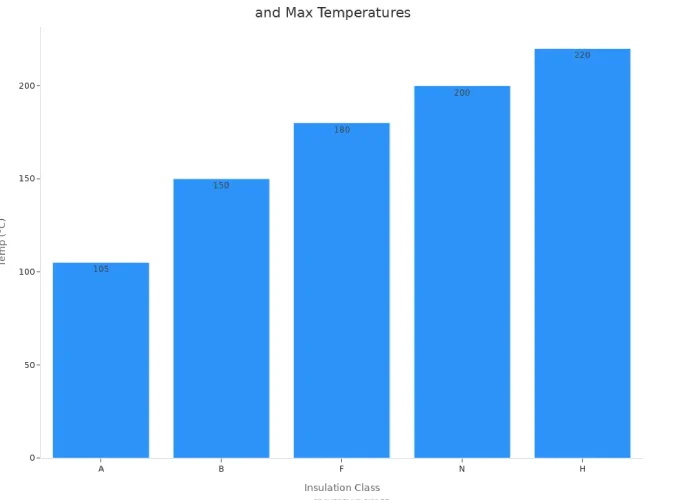

3. Insulation Class vs. Allowable Temperature Rise (Common Industrial Standards)

Selection Formula:

Ambient temperature + Expected temperature rise ≤ Maximum temperature of insulation class

4. Differences Between UL and IEC Standards

• UL Standard: Mainstream in North America, focusing on testing procedures and safety certification

• IEC Standard: Globally recognized, with a more complete classification (including Class N) and unified testing methods

The two standards have similar requirements for temperature limits but differ in certification scope and test details. Selection should align with the target market and project compliance requirements.

5. Correct Steps for Selecting a Control Transformer

1. Determine the maximum ambient temperature

   Reserve temperature rise margin for high-temperature workshops, outdoor installations, enclosed cabinets, high altitudes and other scenarios.

2. Calculate load temperature rise

   Non-linear loads such as frequency converters generate harmonics and increase heating, requiring a higher insulation class.

3. Match insulation class

   Select Class B/F for general working conditions; prioritize Class H for high temperatures, heavy loads and poor ventilation.

4. Avoid over-specification

   Excessively high classes increase cost and weight. Match requirements for optimal economy and reliability.

5. Deploy temperature monitoring

   Install sensors on critical equipment, set alarm thresholds, and provide early warning of overheating risks.

6. Common Selection Mistakes and How to Avoid Them

• Focusing only on power rating while ignoring temperature rise and insulation class

• Neglecting ambient temperature and ventilation, leading to actual temperature rise exceeding limits

• Only monitoring average temperature while ignoring local hot spots that damage insulation

• Failing to recheck insulation suitability after changes in operating conditions

• Accelerated insulation aging due to mechanical vibration and abrasion without protective design

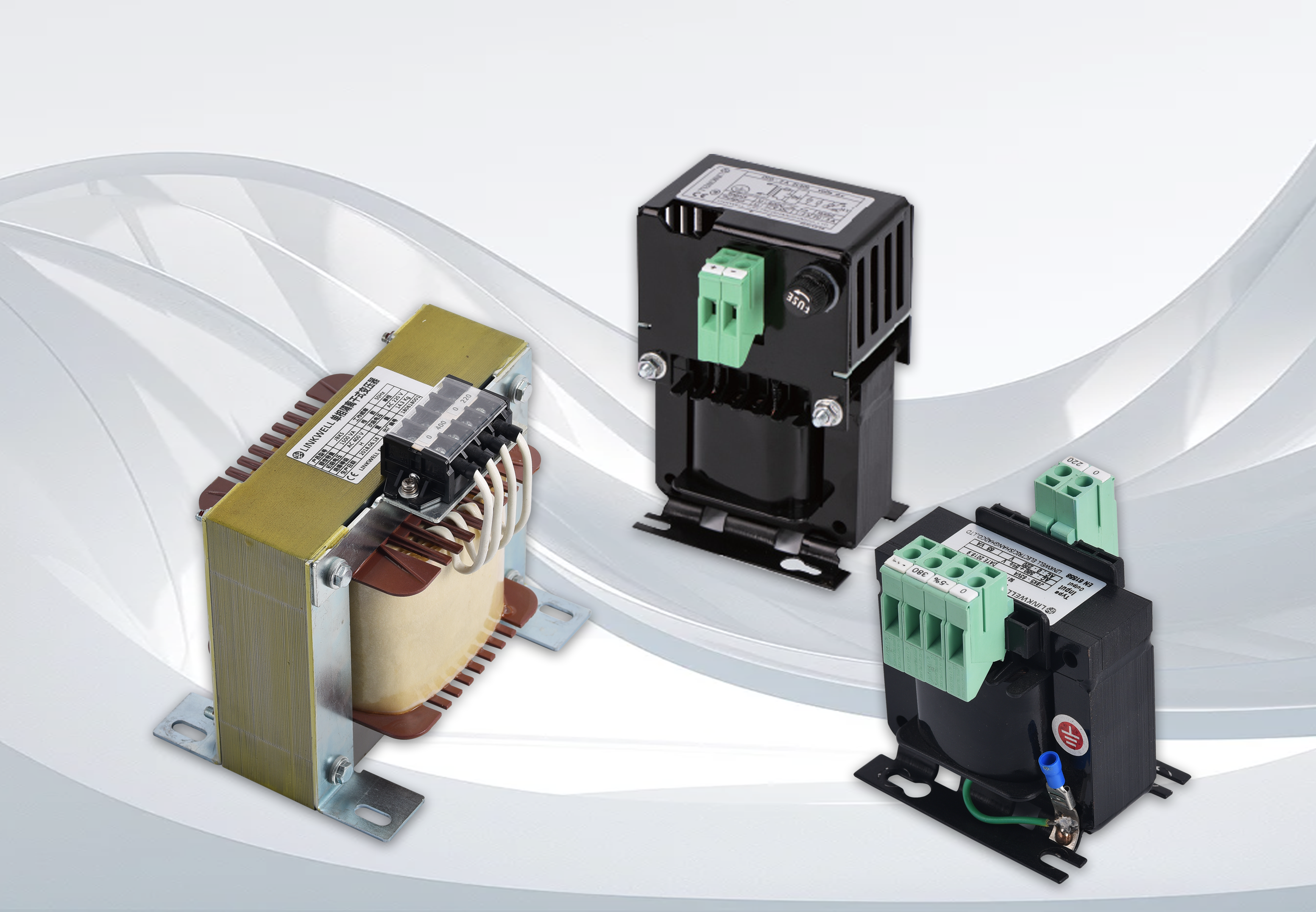

7. Linkwell Control Transformers: Long-Term Reliability Through Thermal Design

Linkwell control transformers strictly control temperature rise and insulation performance throughout material selection, design and testing, providing stable support for industrial scenarios:

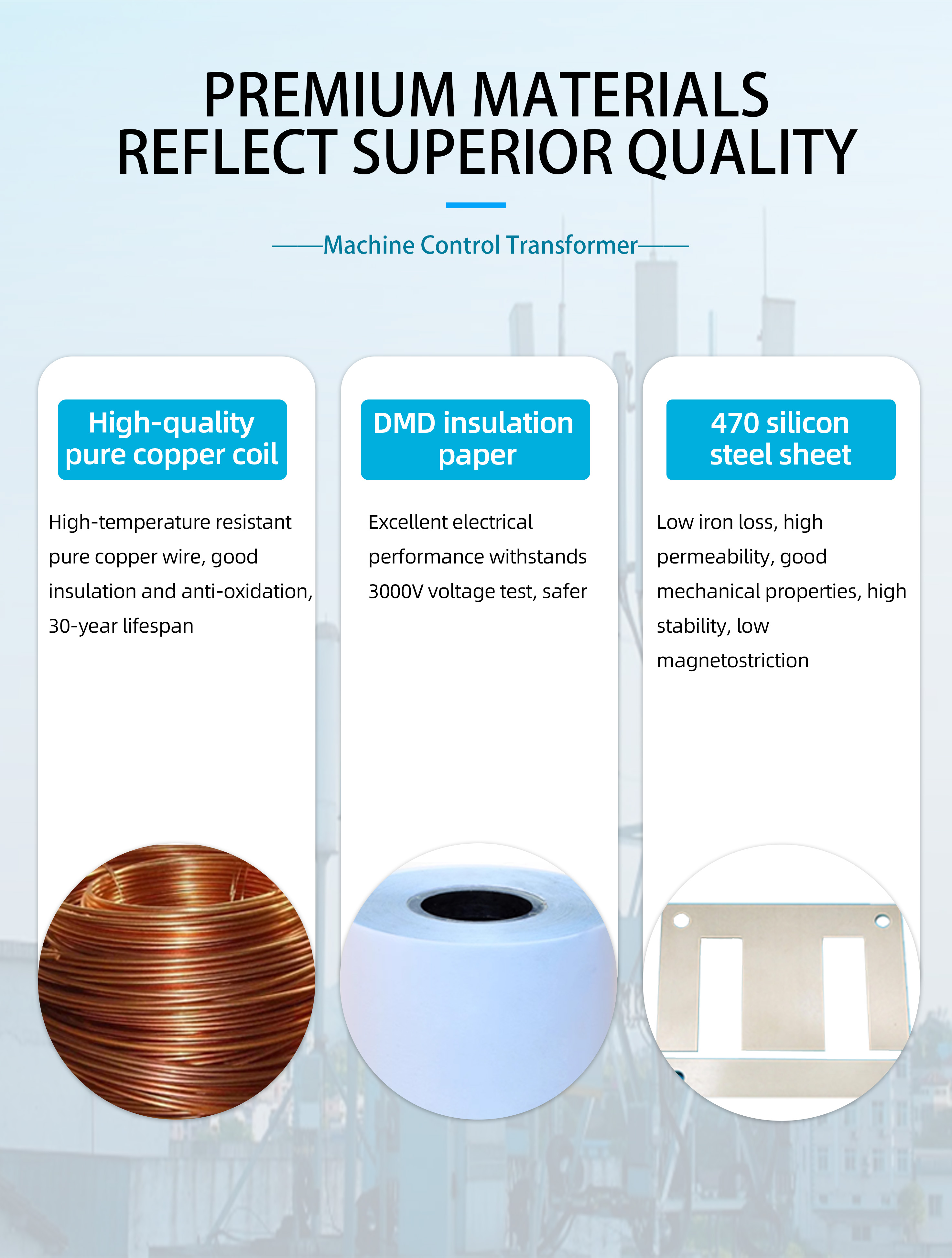

• High-grade insulation materials: High-temperature resistant enameled wire, DMD laminates, Nomex paper with excellent dielectric properties

• Multiple class options: Class B, F and H insulation for different temperature environments

• Wide power range: Covers 60VA to 100kVA for industrial control and power distribution

• Flexible installation: DIN rail, panel mount or base mount available

• Customization capability: Special coatings, sealing or terminal types for enhanced durability in harsh environments

• Authoritative certifications: UL, CE and ISO9001 certified, complying with global safety standards

Lower design temperature rise delivers stronger overload capacity and longer service life, effectively reducing thermal stress and failure rates.

8. Conclusion

Matching the temperature rise and insulation class of control transformers is essential for ensuring safety, efficiency and service life. A full understanding of ambient temperature, load characteristics and standard requirements, combined with the selection of compliant and suitable products, can greatly reduce downtime risks, extend equipment service life and lower lifecycle costs.

Whether for conventional industrial control or high-temperature heavy-duty applications, scientific selection and regular temperature monitoring enable control transformers to operate steadily, laying a solid power foundation for automated systems.
