A screwdriver and a reckless operation could lead to expensive equipment damage and unexpected production line downtime. This article systematically breaks down the entire process of safely and non-destructively dismantling terminal blocks, making your maintenance work professional and efficient.
During daily equipment maintenance, wiring upgrades, or troubleshooting, dismantling rail terminal blocks is a common task. However, this seemingly simple process hides risks: wire strain, terminal damage, and even short circuits caused by improper operation… These not only result in economic losses but may also endanger personal safety.
How can these problems be avoided? The answer is simple: use the right tools and follow the correct procedures.
Before performing any operation, the power must be cut off, and a multimeter must be used to confirm that the equipment is completely powered down. This is a fundamental step to ensure operational safety and must not be skipped.
Choosing the right tools is equally important. Here are the basic tools needed for the operation:
Insulated screwdriver (flathead or Phillips, depending on the terminal type)
Needle-nose pliers for gripping wires or small components
Cable labels or markers for tracking connections
Flashlight or headlamp to improve visibility inside cabinets
Certified rail adapters (if terminal block repositioning is required)
For optional tools, it is recommended to prepare: a multimeter (for reconfirming power disconnection), a small pry bar or plastic slotted tool (for releasing stubborn terminal blocks), cable ties (for keeping wires organized), and a brush or compressed air (for cleaning dust).
Different types of terminal blocks require specific dismantling methods:

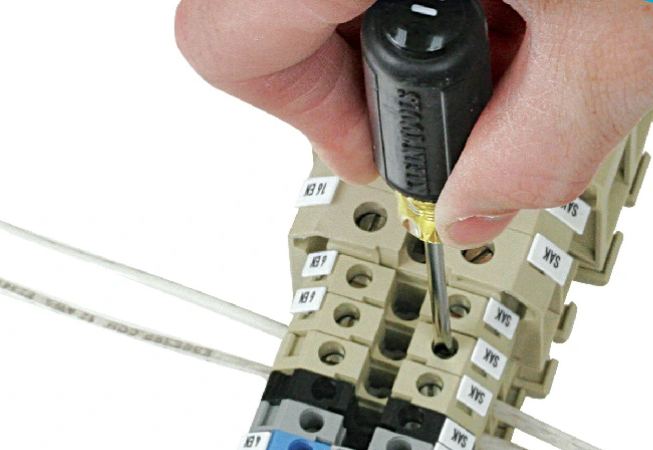

Screw Terminal Blocks: Use an insulated screwdriver to turn the screw counterclockwise and loosen it, then gently pull out the wire.
Spring-Clamp Blocks: Insert a small flathead screwdriver or dedicated release tool into the opening, press the spring clip, and gently pull out the wire simultaneously.
Push-In Blocks: If there is a release button, press it directly; if not, use a dedicated release tool and gently pull out the wire.
Tip: Before disconnecting any wires, be sure to label them. This will save significant time during reassembly.
Disconnect Wires
After reconfirming that the power is off, select the appropriate dismantling method based on the terminal type. Operate with gentle and even force, avoiding rough pulling or tugging.

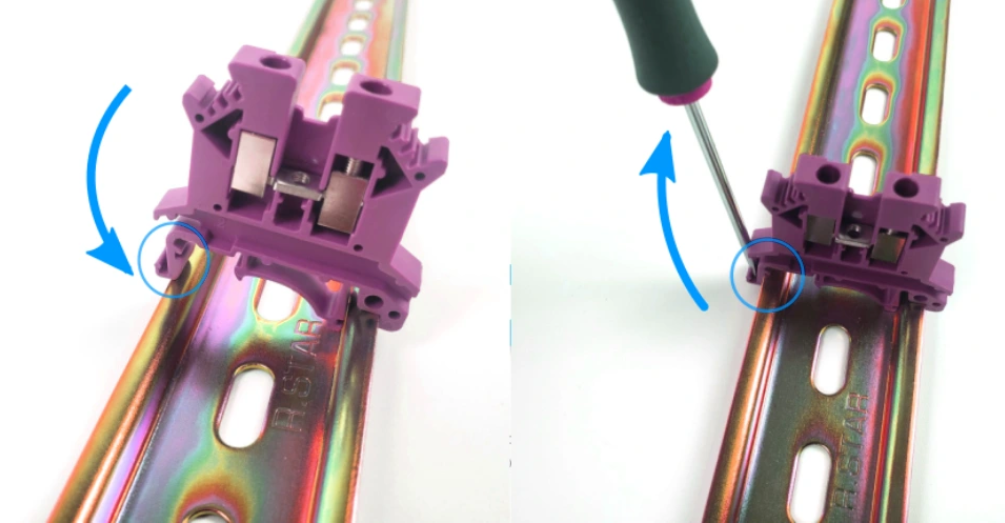

Remove Terminal Block from DIN Rail
Identify the release mechanism (clip or latch) at the bottom of the terminal block. Use the appropriate tool to gently operate the release mechanism. Hold the plastic housing (not the wires) and pull the terminal block out directly. If it feels stuck, use a thin plastic tool to gently pry near the seam.
Handling Multiple Terminal Blocks
When multiple terminal blocks need to be removed, process them one at a time and arrange them in order after removal. Check each terminal and wire for signs of wear or damage, and replace or repair them as needed.
Best Practices to extend the service life of terminal blocks:
Always label wires before disconnecting them.
Use appropriate tools for operations.
Handle terminals with gloves instead of pulling wires directly.
Keep the work area clean.
Regularly inspect terminal blocks for signs of wear or corrosion.
Common Mistakes to avoid:
Do not dismantle terminals by pulling wires directly.
Do not skip the labeling step.
Do not use inappropriate tools for operations.
If a terminal block feels stuck, first check for hidden latches or locks. Dust or corrosion may also cause sticking, in which case a plastic tool can be used to gently pry it. If bent connectors are encountered, straighten them before reinstalling.
Tip: Choosing certified terminal block products like Linkwell can save a lot of trouble. Linkwell terminal blocks feature flame-retardant housings (compliant with UL94 V-0 rating), global safety certifications (UL/CE/RoHS), and factory-tested mechanical protection, ensuring reliable performance even in harsh conditions.
Safely and non-destructively dismantling rail terminal blocks requires patience, the right tools, and correct operating methods. By following the steps and suggestions provided in this article, you will be able to complete this task like a professional. Remember: safety always comes first. When encountering uncertain situations, it is best to stop and seek professional help.
