Solving Heat Dissipation Challenges in Enclosed Cabinets: LINKWELL Explains The Principles of Blowing Vs. Exhausting for Cooling Fans

In modern industrial automation, data centers, and communication networks, power distribution cabinets, control cabinets, and server racks are crucial core units. These cabinets are often relatively sealed, and the high-performance servers, PLCs, drivers, and other precision components inside generate a significant amount of heat during continuous operation. If this heat cannot be dissipated effectively and promptly, it will lead to equipment overheating, performance throttling, accelerated component aging, and even unexpected downtime, seriously threatening the stability and reliability of the entire system.

Therefore, efficient heat dissipation is key to ensuring the stable operation of enclosed electrical cabinets. Among various cooling solutions, installing industrial cooling fans has become the most common choice due to their simple installation, cost-effectiveness, and significant results. They act as the "respiratory system" of the cabinet, continuously drawing in cool air and expelling hot air, creating a constant, cool operating environment for the equipment.

1. Core Principle: Blowing or Exhausting—How Do Cooling Fans Work?

Many customers face a core question when selecting and installing cooling fans: Should they blow air onto the equipment or exhaust hot air out? In fact, cooling fans can operate in both blowing and exhausting modes, depending on whether the goal is "local" or "overall" heat dissipation.

• Local Heat Dissipation (for specific high-heat components): Uses a blowing method. The principle is to direct cool air straight onto the surface of the heat source (e.g., CPU heatsink, power module) with high pressure, quickly disrupting the insulating layer of hot air for efficient heat exchange. This method offers high air pressure, strong targeting, and higher efficiency.

• Overall Heat Dissipation (for the entire cabinet space): Uses an exhausting method. The principle is to actively extract the accumulated hot air from the cabinet, creating a slight negative pressure that forces external cool air to be naturally drawn in through intake vents (e.g., holes, filters). This method improves overall airflow and achieves broad environmental air circulation.

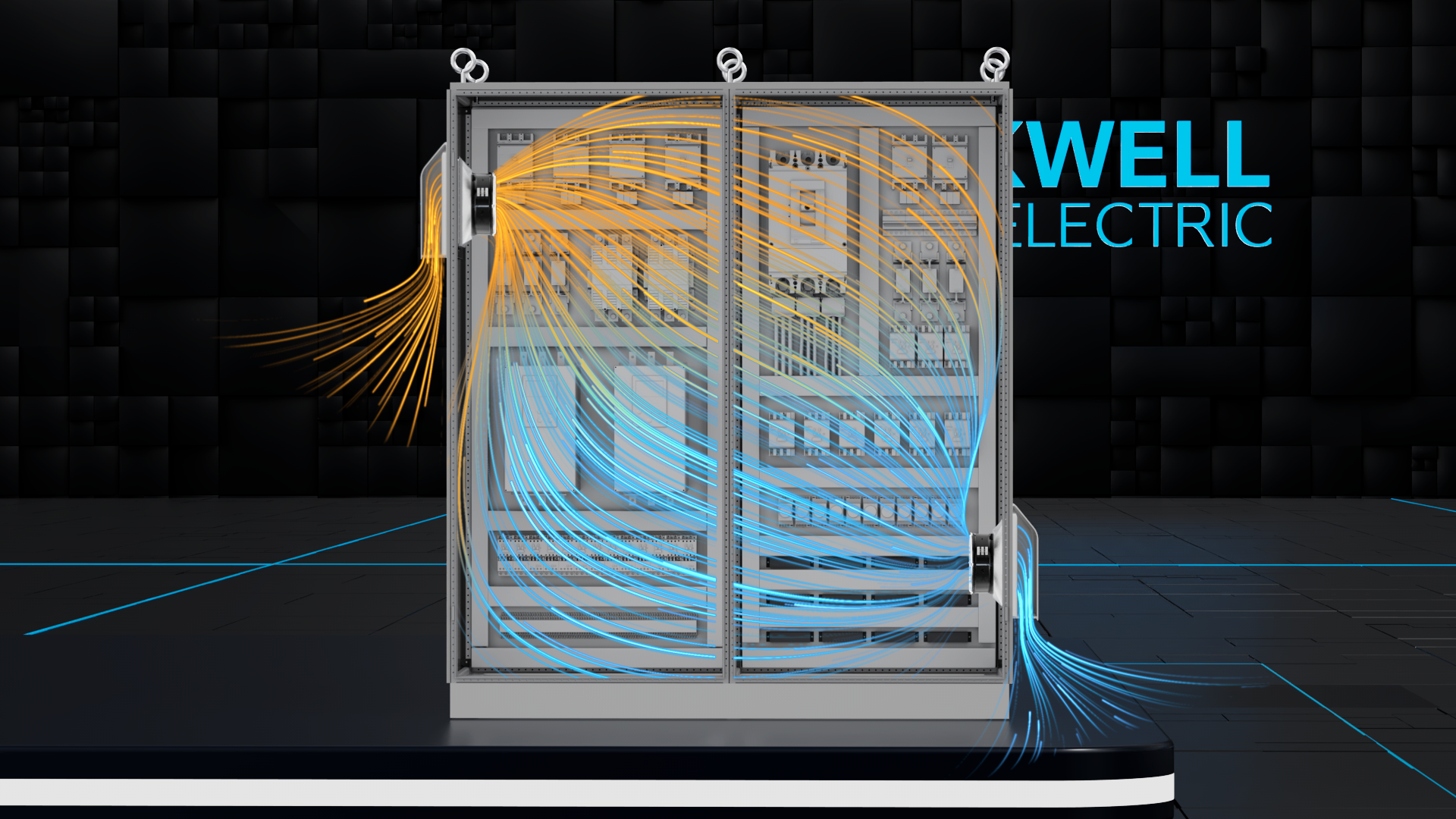

A classic airflow layout principle is: "Front intake, rear exhaust; bottom intake, top exhaust."

• Fans at the front and lower side panels of the cabinet should serve as intake fans, blowing cool air into the cabinet.

• Fans at the top and rear of the cabinet should serve as exhaust fans, extracting hot air outward.
  This intake and exhaust cycle creates an effective, directed airflow path, achieving the goal of cyclical cooling.

•

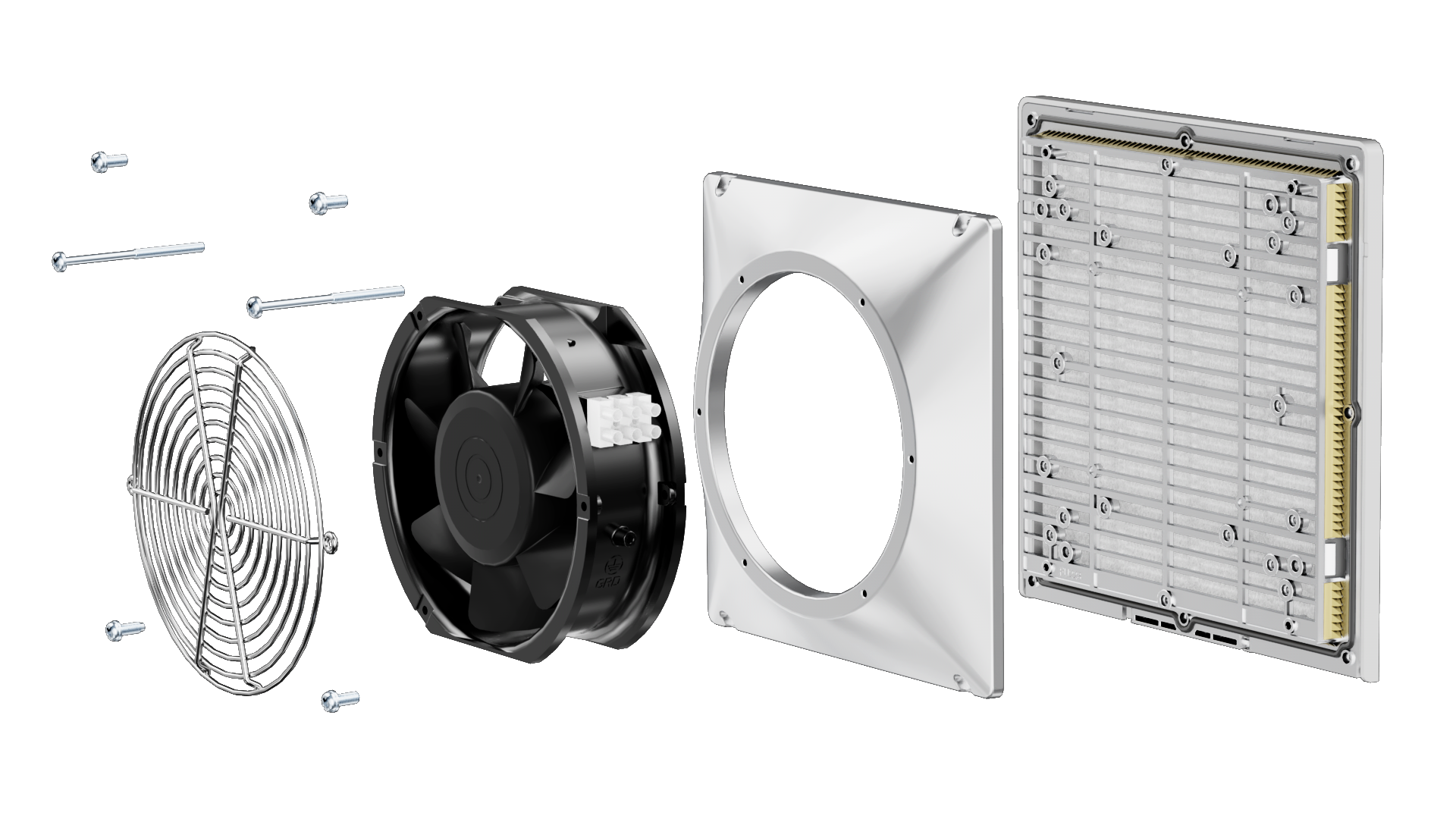

2. How to Choose? Understanding the Three Main Types of Cooling Fans

Based on different physical characteristics and application scenarios, cooling fans can be simply categorized into three types:

• Airflow Fans: Characterized by very high air volume but relatively low static pressure. Suitable for overall space cooling where airflow resistance is low and significant air exchange is needed, such as exhaust fans at the top of a cabinet.

• Static Pressure Fans: Characterized by strong static pressure, capable of overcoming greater resistance. Suitable for localized forced cooling scenarios where air needs to penetrate dense heatsink fins or dust filters.

• Balanced Fans: Strike a balance between air volume and static pressure. They are widely applicable and can meet the needs of most general scenarios.

Users should choose the most suitable type based on the internal structure of the cabinet, the distribution of heat sources, and the resistance of the airflow path.

3. Which is Better: Blowing or Exhausting?

There is no single answer to this question; the key lies in the design.

• Advantages of Blowing: Direct and efficient, delivers cool air precisely to the heat source. The fan motor is usually in the cooler airflow, resulting in a better operating environment and a relatively longer lifespan.

• Advantages of Exhausting: Efficiently removes hot air and optimizes overall airflow. However, the fan motor is constantly in the heated air being extracted, leading to a harsh operating environment. This demands higher quality from the fan, and its lifespan may be shorter.

LINKWELL's Core Viewpoint: More important than choosing blowing or exhausting is scientific airflow design. The essence of design is to ensure the air blown towards the target is cool air drawn from outside, and that the extracted hot air is completely expelled from the equipment without being sucked back in (avoiding airflow short-circuiting). Regardless of the method, the ultimate goal is to establish a smooth, efficient, and rational airflow path.

4. Summary

Cooling fans are the silent guardians ensuring the stable operation of modern electrical cabinets. Correctly understanding the principles of blowing and exhausting, selecting the appropriate type based on actual needs, and implementing a scientific layout are the cornerstones of building an efficient heat dissipation system.

If you are seeking professional solutions for cabinet heat dissipation problems, the LINKWELL technical team is ready to assist you. We not only provide high-quality cooling products but also offer customized airflow design and thermal consultation to protect your critical equipment.
