Imagine walking into your facility and finding that the electrical cabinet is overheating—equipment starts to malfunction, and you worry about costly downtime. If you do not match the cooling capacity of the panel-mounted air conditioner with the size of the electrical cabinet and the heat load, you may face insulation failure, short circuits, and even safety risks.
Every air conditioning enclosure requires a cooling solution to protect sensitive equipment, save energy, and meet your operational needs. Linkwell provides reliable options for every environment, ensuring your system operates safely and efficiently.
In fields such as industrial automation, power systems, and telecommunications, electrical cabinets serve as the "protective shell" for core equipment. Components such as power supplies, relays, and drives inside generate heat continuously during operation. If the heat cannot be dissipated in a timely manner, heat accumulation will accelerate equipment aging, shorten service life, and even cause safety accidents. Embedded air conditioners (also known as panel-mounted air conditioners) are precisely designed to solve this pain point.

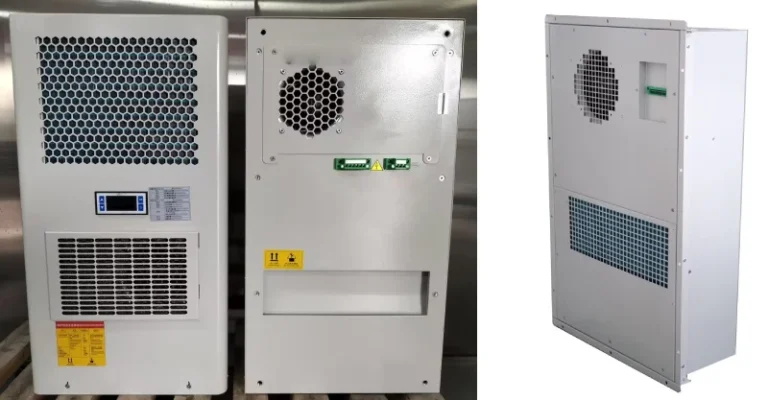

Different from ordinary air conditioners, Linkwell embedded air conditioners adopt a compact design and can be directly attached to the wall, door, or top of the electrical cabinet. Their core function is to maintain a stable and constant temperature inside the cabinet, creating a safe operating environment for sensitive electronic equipment. Its core value is reflected in three aspects:
Extend Equipment Service Life: Through precise temperature control, avoid overheating damage to circuit components, effectively extend the service life of electrical equipment, and reduce replacement and maintenance costs;
Improve Operational Reliability: A stable temperature environment can reduce sudden equipment shutdowns, performance fluctuations, and other issues, ensuring the continuous and smooth operation of production lines and systems;
Harsh Environment Protection: High IP rating design can effectively block external pollutants such as dust, moisture, and corrosive substances. Even in harsh environments such as outdoors, high-temperature workshops, and coastal areas, it can provide comprehensive protection for electrical equipment.
It is worth noting that fire protection regulations in many regions clearly require that fire panels be stored in air-conditioned cabinets. Through precise temperature and humidity control, failures caused by environmental factors are avoided, safeguarding the safety of personnel and property—which is also an important embodiment of the value of embedded air conditioners in key scenarios.
The core competitiveness of Linkwell embedded air conditioners lies in the adoption of an advanced closed-loop cooling system—which is also the key difference from ordinary fan cooling and open-loop cooling. The core logic of the closed-loop cooling system is: the air inside the electrical cabinet is completely isolated from the outside air, forming an independent refrigeration cycle, which fundamentally prevents pollutants such as dust, chemicals, and moisture from entering the cabinet.
This design is particularly important for electrical cabinets with NEMA 4X, NEMA 12, NEMA 4, and other protection levels. It can effectively avoid the erosion of sensitive components by pollutants, reduce the probability of equipment failure, and lower maintenance costs. At the same time, the closed-loop cooling system can also remove moisture from the air during the refrigeration process, further protecting electrical equipment from the impact of humidity, and is especially suitable for high-temperature, high-humidity, dusty, and corrosive environments.
The refrigeration process of Linkwell embedded air conditioners is simple and efficient, realizing rapid heat transfer through a closed-loop refrigeration cycle. The specific process is as follows:
The evaporator coil is located inside the electrical cabinet. The refrigerant in the coil absorbs heat from the air inside the cabinet and turns from liquid to gas;
The compressor sucks in the gaseous refrigerant and compresses it, greatly increasing the temperature and pressure of the refrigerant;
The hot gaseous refrigerant flows through the condenser coil located outside the cabinet, releases heat to the outside air, and turns back into liquid;
The liquid refrigerant passes through the expansion valve, where its pressure and temperature decrease, and then enters the evaporator again to start the next refrigeration cycle.
During the entire process, the refrigerant does not mix with the air inside and outside the cabinet. At the same time, through the independent operation of the internal fan and external fan, the dual effects of cold air circulation inside the cabinet and heat dissipation outside the cabinet are achieved. This not only ensures refrigeration efficiency but also achieves pollutant isolation, keeping electrical equipment in a stable constant temperature environment at all times.
In addition, Linkwell embedded air conditioners are equipped with high-quality EC fans, which not only ensure smooth air circulation and improve refrigeration uniformity but also have the advantages of energy saving and durability, adapting to long-term operation in harsh environments; the combination of inverter compressor and intelligent digital control system can achieve precise temperature control, reduce energy consumption, and respond to rapid changes in ambient temperature.
Choosing the right embedded air conditioner is essentially about achieving precise matching between "cooling capacity, heat load, cabinet size, and environmental conditions". Many enterprises experience energy waste, equipment overheating, rapid air conditioner wear, and other problems due to improper selection. The following 4 steps help you quickly select the suitable Linkwell embedded air conditioner:
Heat load is the core basis for selection, referring to the total heat released by all equipment inside the electrical cabinet during operation. The calculation method is simple and easy to understand: summarize the energy consumption of all equipment inside the cabinet (unit: watts), and combine it with a BTUH calculator to accurately obtain the required cooling capacity (unit: British Thermal Units per hour). Do not guess the size based on experience—too small an air conditioner cannot meet the cooling demand, while too large an air conditioner will start and stop frequently, wasting energy and shortening the equipment life.
Ambient temperature directly affects the refrigeration efficiency of the air conditioner: outdoor areas, high-temperature workshops, sun-exposed areas, etc., will increase additional heat load, requiring the selection of models with stronger cooling capacity; cabinet size determines the installation method and cooling coverage of the air conditioner. It is necessary to select the appropriate air conditioner specification according to the height, width, and depth of the cabinet. Linkwell provides a variety of specification products, which can cover electrical cabinets of different sizes and adapt to various environmental needs.
Different scenarios have different requirements for the protection level of air conditioners. It is necessary to select the corresponding NEMA/IP level according to the type of pollutants in the environment (dust, moisture, corrosive substances, etc.). Linkwell embedded air conditioners have various protection level options such as IP54 and IP65, which can adapt to various scenarios from indoor dry environments to outdoor harsh environments. Among them, NEMA 4X level products can effectively resist corrosive substances, suitable for special scenarios such as coastal areas and chemical plants.
Linkwell embedded air conditioners support three common installation methods: side mounting, door mounting, and top mounting. Each has its own advantages and can be selected according to the cabinet structure, spatial layout, and maintenance needs:
Installation Method | Advantages | Applicable Scenarios |
Side Mounting | Balanced air flow and flexible placement | Sufficient internal cabinet space and need for balanced cooling |
Door Mounting | Convenient maintenance and saves side space | Frequent inspection and cleaning of the air conditioner are required, and side space is limited |
Top Mounting | Efficiently discharges hot air and saves wall/door space | No installation space on the side or door, and hot air tends to accumulate on the top |
In the field of electrical cabinet cooling, fan cooling, heat exchangers, and embedded air conditioners are three common solutions. Different solutions have significant differences in applicable scenarios and effects, as detailed below:
Fan cooling is only suitable for mild environments with low heat load and clean, cool external air. Its core limitation is that it introduces external air into the cabinet, which may bring in pollutants such as dust and moisture, increasing the risk of equipment failure. Linkwell embedded air conditioners adopt closed-loop cooling, completely isolating external pollutants, and have stronger cooling capacity, which can adapt to harsh environments such as high temperature and dust, ensuring long-term stable operation of equipment.
Heat exchangers adopt passive heat dissipation, which is energy-saving and simple to maintain. They are suitable for scenarios with medium and low heat load and light pollution but cannot reduce the cabinet temperature below the ambient temperature. Linkwell embedded air conditioners adopt active refrigeration, which can accurately control the cabinet temperature within the set range (below the ambient temperature) and have stronger cooling capacity. They are suitable for high heat load, sensitive electronic equipment, and extreme high-temperature environments, especially for core scenarios such as PLC enclosures, motor control centers, and telecommunications cabinets.
As a professional brand deeply engaged in the field of electrical equipment cooling, Linkwell embedded air conditioners not only have the above core advantages but also combine industry needs to create a product system with reliability, energy saving, and customization. The core highlights are as follows:
High-Quality Insulation and Materials: Adopt high-quality insulation materials such as high-temperature resistant enamel, DMD laminates, and Nomex paper, with high dielectric constant, adapting to the safety needs of various electrical equipment;
Flexible Customization Capability: Provide multiple heat resistance level options (Class B, F, H), and customizable voltage combinations and power ranges (60VA~100kVA) to adapt to the personalized needs of different scenarios;
Authoritative Certification Guarantee: The products have passed international authoritative certifications such as UL, CE, and ISO9001, complying with global safety standards. They can be exported to more than 100 countries and regions, and have established long-term cooperative relationships with well-known enterprises such as ABB, Siemens, and Schneider Electric;
Low-Consumption and Durable Design: The combination of inverter compressor and EC fan has significant energy-saving effect, and at the same time has the characteristics of low noise, vibration resistance, and easy maintenance, greatly reducing operation and maintenance costs;
Full-Scenario Adaptation: Widely used in fields such as industrial automation, power systems, telecommunications, outdoor cabinets, and high-tech equipment. Whether it is a high-temperature workshop, coastal area, or outdoor harsh environment, it can provide stable cooling protection.
In practical applications, many enterprises experience poor cooling effect and frequent equipment failures due to ignoring details. The following 5 common mistakes must be avoided:
Improper Selection: The air conditioner is too large or too small, leading to energy waste, rapid equipment wear, or failure to meet cooling needs;
Ignoring Air Flow and Sealing: Poor air flow inside the cabinet forms hot spots; loose sealing leads to dust and moisture infiltration, affecting cooling effect;
Neglecting Maintenance: Failure to regularly clean filters and check drains leads to reduced air conditioning refrigeration efficiency and even malfunctions;
Ignoring Environmental Factors: Failure to select air conditioners with appropriate protection levels according to the characteristics of outdoor, high-temperature, corrosive, and other environments;
Failure to Recheck After Working Condition Changes: After the equipment load increases or the ambient temperature changes, the cooling demand is not re-evaluated, leading to insufficient cooling capacity.
Tip: Regular maintenance (cleaning filters and checking drains monthly), installing temperature sensors for real-time monitoring, and timely adjusting the cooling plan according to changes in working conditions can effectively extend the service life of air conditioners and electrical equipment and reduce the risk of failures.
Q1: How to judge whether an embedded air conditioner is needed for an electrical cabinet? A: If the electrical cabinet feels hot, equipment reports errors frequently, or fan cooling cannot meet the demand (such as high heat load, harsh environment), you can use a heat load calculator to detect. If the temperature exceeds the safe range of the equipment, an embedded air conditioner needs to be installed in a timely manner.
Q2: Can Linkwell embedded air conditioners be used outdoors? A: Yes. Choose models with high protection levels such as IP54 and IP65, which can effectively resist the impact of outdoor environmental factors such as rain, dust, and extreme temperatures, and safeguard the safety of outdoor electrical cabinets.
Q3: What is the difference between closed-loop cooling and open-loop cooling? A: Closed-loop cooling completely isolates the air inside and outside the cabinet, preventing pollutants from entering; open-loop cooling uses external air, which is prone to bringing in dust and moisture, and is only suitable for clean and mild environments.
Q4: How to get selection help? A: You can use the Linkwell online BTUH calculator or contact our professional team, provide information such as cabinet size, heat load, and environmental conditions, and we will provide you with an accurate selection plan.
The safety and stability of electrical cabinets are the foundation of enterprise production and operation; and a suitable cooling solution is the key to protecting electrical equipment. Linkwell embedded air conditioners, with closed-loop cooling technology, precise temperature control capabilities, and full-scenario adaptation advantages, provide reliable cooling protection for various electrical cabinets, helping enterprises reduce downtime losses, lower operation costs, and extend equipment life.
No matter which field you are in, such as industrial automation, power systems, or telecommunications, no matter what kind of harsh environment you face, such as high temperature, dust, or corrosion, Linkwell can customize an exclusive electrical cabinet cooling solution for you. For selection consultation, product customization, or technical support, please contact the Linkwell team. We will serve you wholeheartedly, work with you to safeguard equipment safety, and create a new future of efficient operation.
