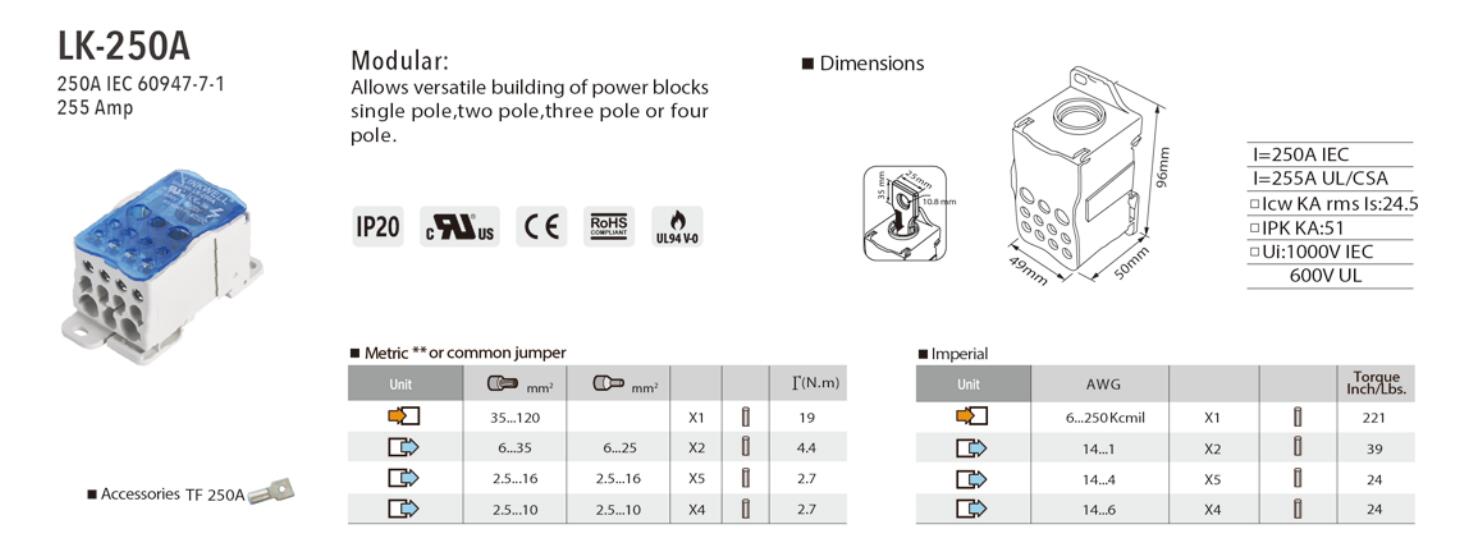

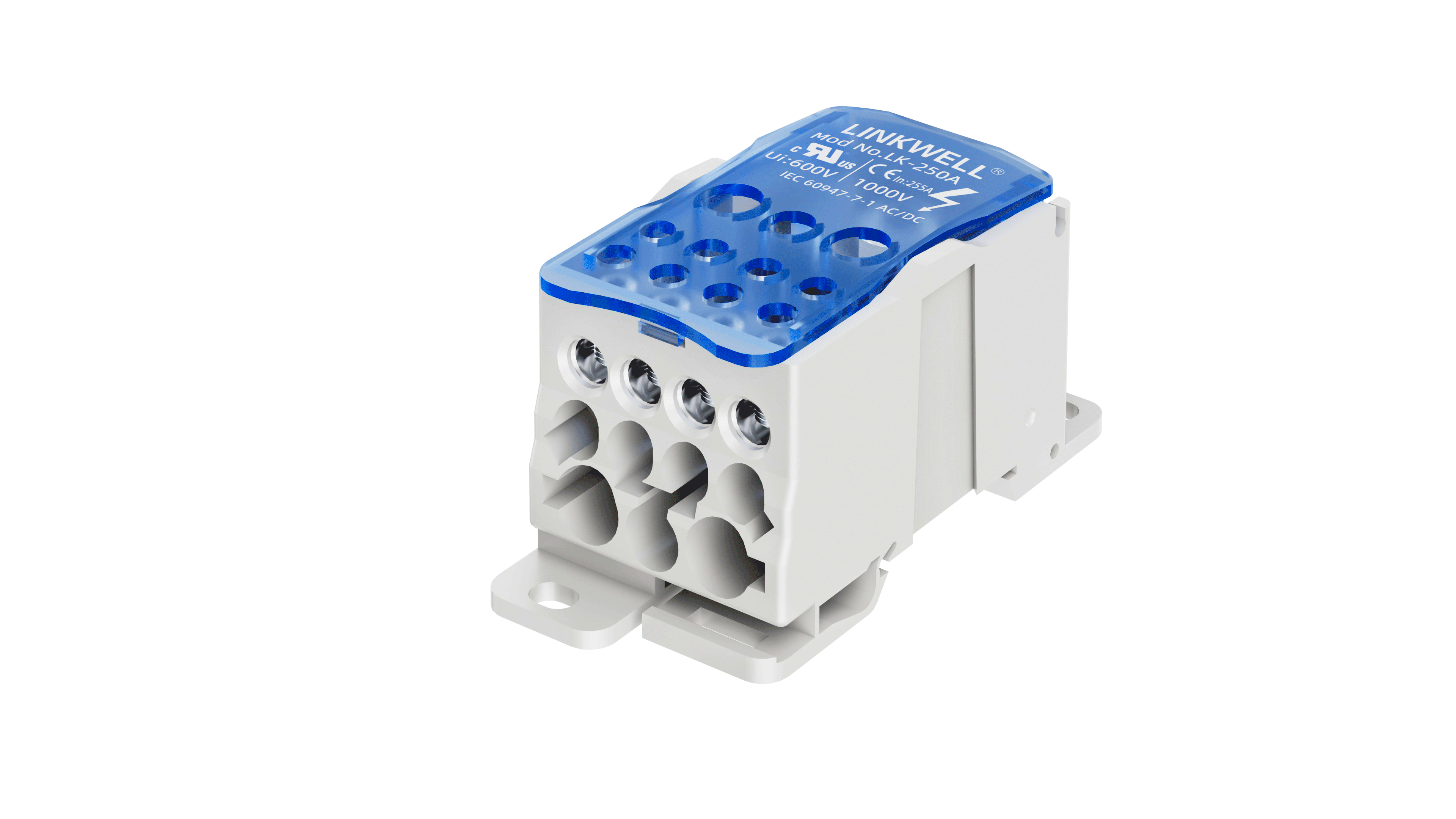

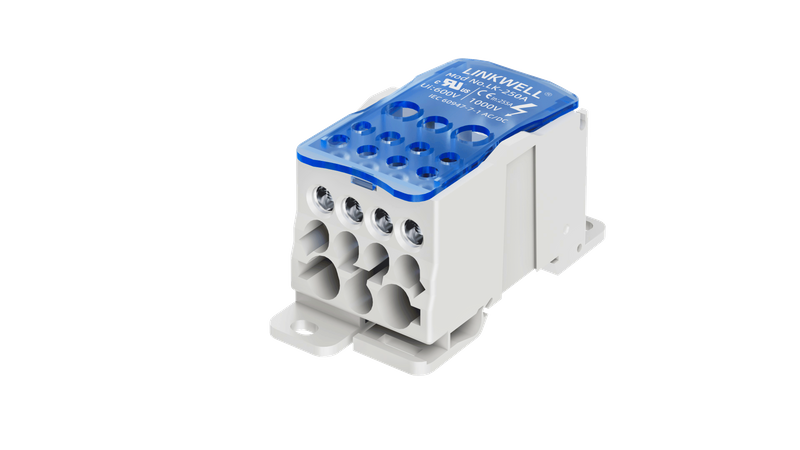

LK250A
LINKWELL
LK250A
LINKWELL
96X50X49mm
White
IP20
CE,ROHS,UL
High-end terminal block tuv
characteristic:
You can see if the cable is connected reliably
Halogen free
IP20 protection against electric shock
95% contact
Flame retardant: UL94-V0
Tinned copper: copper cable or aluminum cable
The maximum withstand short-circuit current can reach 100KA-see ULE198301
Comply with ROHS standard
Flexible busbar can be directly plugged into and connected (LK500A)
Flexible busbars can be inserted and connected with flat connectors (LK250A&LK400A)
High-end terminal block tuv
characteristic:
You can see if the cable is connected reliably
Halogen free
IP20 protection against electric shock
95% contact
Flame retardant: UL94-V0
Tinned copper: copper cable or aluminum cable
The maximum withstand short-circuit current can reach 100KA-see ULE198301
Comply with ROHS standard
Flexible busbar can be directly plugged into and connected (LK500A)
Flexible busbars can be inserted and connected with flat connectors (LK250A&LK400A)
