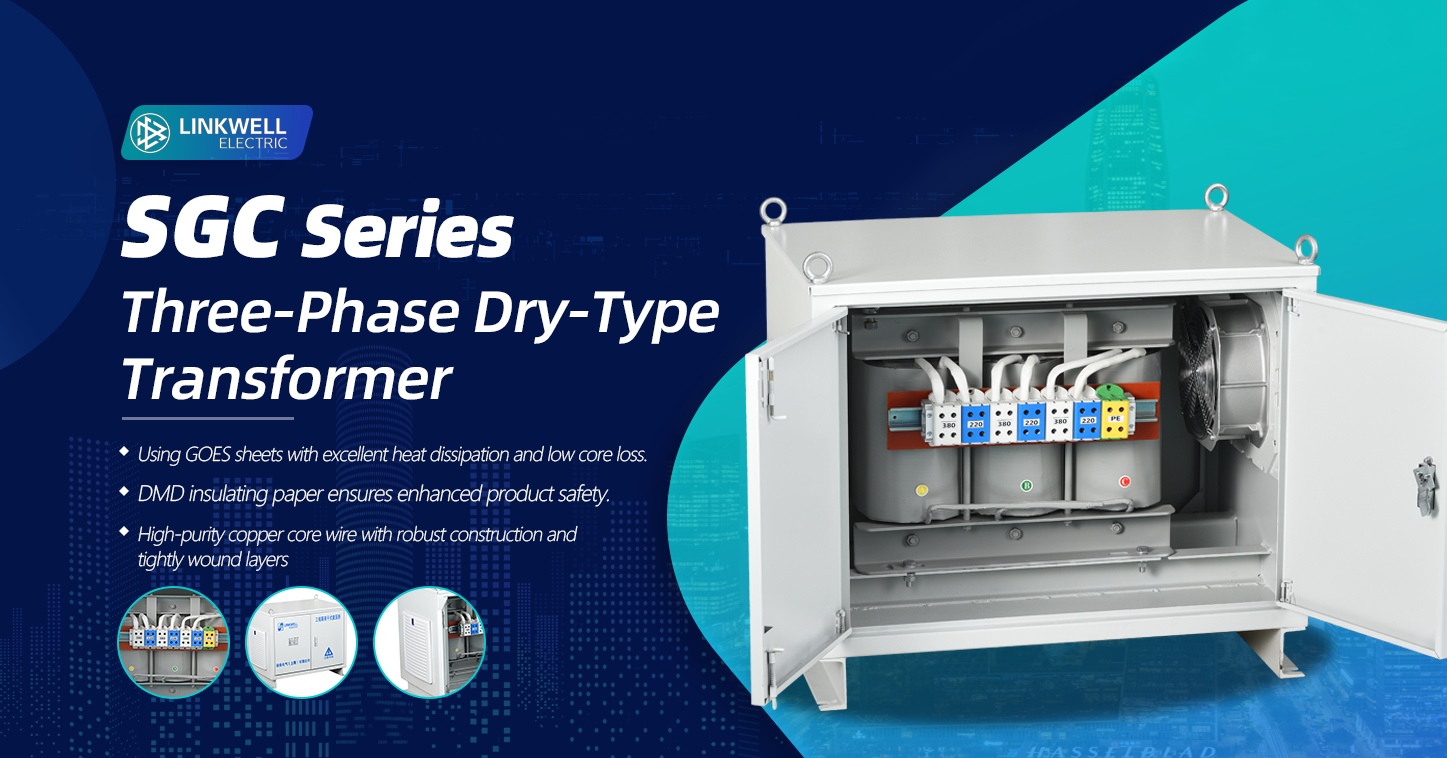

In demanding environments such as industrial plants, CNC machine tools, and power plants, the stability and reliability of power transformers are critical to operational safety and cost management. The LINKWELL SGC Series Three-Phase Dry-Type Transformers, with their advanced material engineering and intelligent design, have become the ideal choice for applications with high fire-safety requirements, helping businesses achieve both secure power supply and energy savings.
Core Advantages: The Pinnacle of Material and Craftsmanship
High-Performance Magnetic Core: Perfect Balance of Efficiency and Heat Dissipation
Grain-Oriented Silicon Steel (GOES): Core losses are reduced to below 0.9W/kg, with no-load losses 30% lower than conventional transformers, significantly cutting long-term operational energy consumption.
Military-Grade Insulation System: Ultimate Safety Assurance
DMD Composite Insulation Paper: Three-layer reinforced structure (polyester film-aramid fiber-polyester film) with a heat resistance class of F (155°C) and partial discharge levels <5pC, certified to UL and GB/T 19212.1 standards.
Fully Encapsulated Windings: Flame-retardant epoxy resin vacuum casting with IP65 protection, eliminating short-circuit risks from dust or moisture.
High-Purity Conductors: Uncompromising Power Delivery
99.99% Oxygen-Free Copper Windings: Conductivity ≥58 MS/m, reducing load losses by 15% compared to aluminum windings, with instantaneous 25x rated current short-circuit withstand capability.
Precision Winding Technology: CNC-layered winding achieves >92% fill density, minimizing eddy current losses and keeping temperature rise below 80K.
Applications: Meeting Diverse Industrial Needs
CNC Machine Tools & Machining Centers: Precision voltage output (±1% regulation accuracy), eliminating power fluctuations in high-precision operations.
Power Plants & Airports: Compliant with EN 50155 rail standards, suitable for frequent start-stop and impact loads.
Hazardous Environments (Chemical/Mining): Explosion-proof design + IP65 protection, meeting GB 3836 explosive atmosphere standards.
Customization Services: Tailored Solutions
Capacity Range: 0.5kVA–100kVA, with support for non-standard voltage customization (e.g., 380V→200V).
Why Choose LINKWELL SGC Series?
✅ Safer: DMD insulation + oxygen-free copper windings reduce failure rates by 50% vs. industry average.
✅ More Efficient: Class 1 energy efficiency (GB 20052-2020), saving over ￥10,000/year in electricity costs (for 100kVA units).
✅ Longer Lifespan: 25-year design life, capable of 24/7 continuous operation.
Case Study
An automotive parts plant using the SGC-50kVA transformer achieved:
Annual energy savings: 12,000 kWh (~￥8,400)
Voltage fluctuation reduced from ±5% to ±1.5%
Conclusion
The LINKWELL SGC Series transformers combine material innovation with safety and efficiency, delivering reliable power solutions for industrial users. For custom configurations or technical support, contact our engineering team today!
