Key Points of Industrial Cabinet Lighting: Why It Is Indispensable and How to Configure It Correctly

In the realm of industrial automation, power systems, and data center cabinet applications, cabinet lighting is often overlooked, yet it is a critical factor in ensuring operational efficiency and safety. Proper cabinet lighting not only improves the work efficiency of maintenance personnel but also reduces the risk of operational errors. This article provides a comprehensive introduction to the selection, installation, and maintenance of cabinet lights to help you make informed decisions.

What is a Cabinet Light?

A cabinet light is a lighting device specifically designed for various switchgear cabinets, control cabinets, instrument panels, and distribution cabinets. Unlike traditional lighting, cabinet lights feature special design characteristics that allow them to adapt to the confined spaces and specific environmental requirements inside cabinets.

Core Features of Cabinet Lights

• Compact Design: Optimized for limited space. For example, the PL263 model measures only 263×43.6×41mm.

• Diverse Installation Methods: Offers multiple choices such as magnetic fixation and screw installation.

• Wide Voltage Adaptation: Supports wide voltage ranges like AC85-265V or DC12-72V.

• High-Efficiency LED Light Source: High luminous efficacy and long lifespan. For instance, the LCL series can achieve a luminous flux of 640-1520 LM.

• Professional Protection Rating: Typically features an IP20 rating, protecting against dust and accidental contact.

Main Application Scenarios

Cabinet lights are widely used in:

• Industrial control cabinet lighting

• Internal lighting for distribution cabinets

• Equipment lighting in network cabinets

• Reading illumination for instrument boxes

• Maintenance lighting in automated equipment cabinets

Tool Preparation and Safety Regulations

Essential Tool List
Before installing cabinet lights, prepare the following tools:

• Multimeter: For detecting voltage and circuit continuity.

• Appropriate Screwdrivers: Selected according to terminal sizes.

• Wire Strippers: For processing power connection wires.

• Electric Drill (if needed): For screw installation.

• Level: To ensure level installation.

• Safety Gloves and Goggles: Basic personal protective equipment.

Safety First: Key Precautions
Electrical safety is the primary consideration. Adhering to these safety regulations is crucial:

1. Power Off Before Operation: Always disconnect the cabinet power supply before installation.

2. Voltage Confirmation: Use a multimeter to confirm the installation location is de-energized.

3. Load Assessment: Ensure the cabinet light's power consumption is within the power supply's capacity.

4. Correct Wiring: Strictly follow color codes and identification for wiring.

5. Grounding Protection: Ensure the equipment is properly grounded.

Pro Tip: Choose products certified with CE, EMC, ROHS, like Linkwell, to ensure compliance with international safety standards.

Cabinet Light Usage Guide: Step-by-Step Tutorial

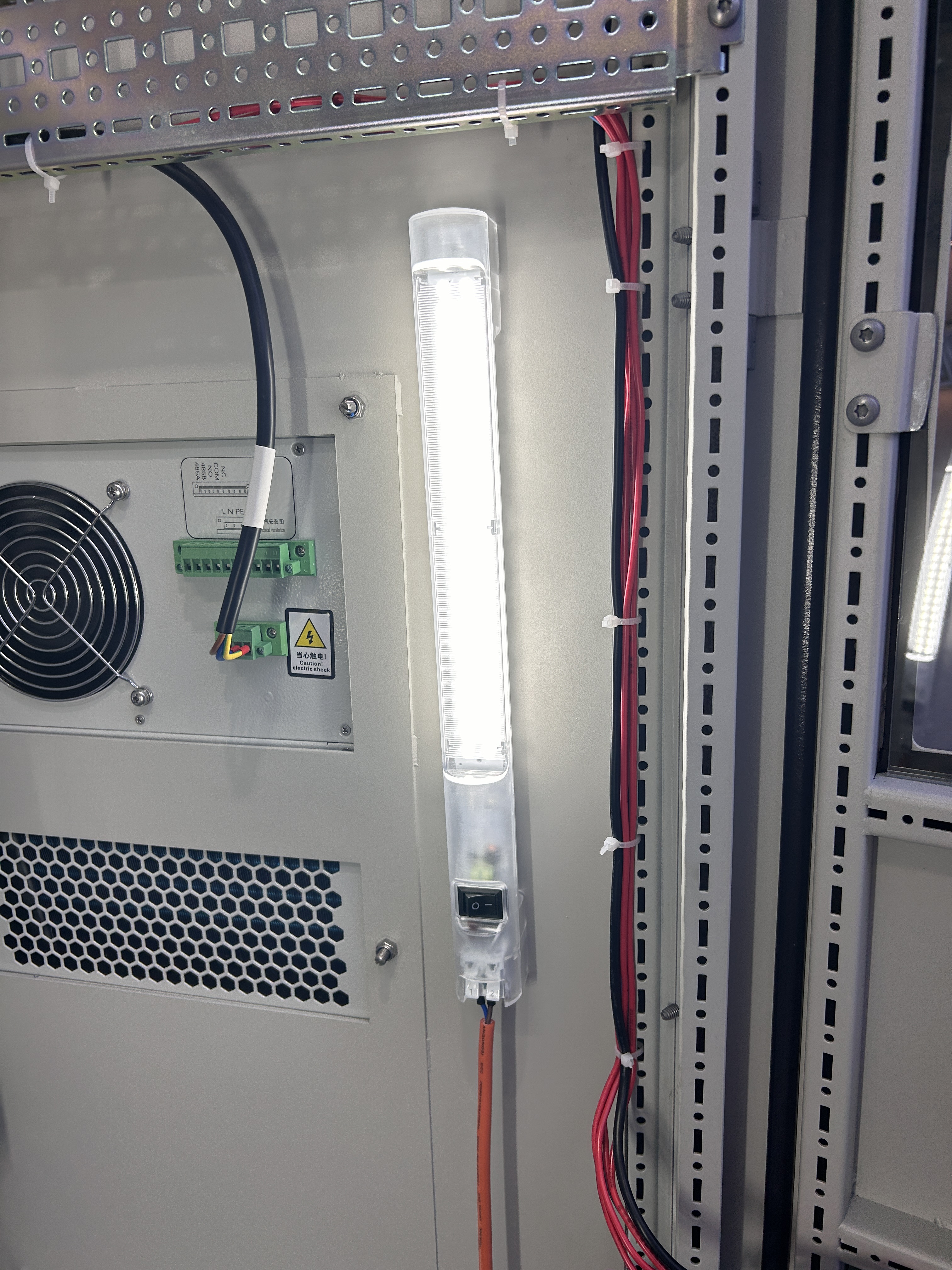

Step 1: Plan the Installation Location
Evaluate the internal structure of the cabinet to determine the optimal lighting position. Consider the following factors:

• Main operational areas

• Door swing direction

• Cable routing paths

• Heat dissipation requirements

• Maintenance accessibility

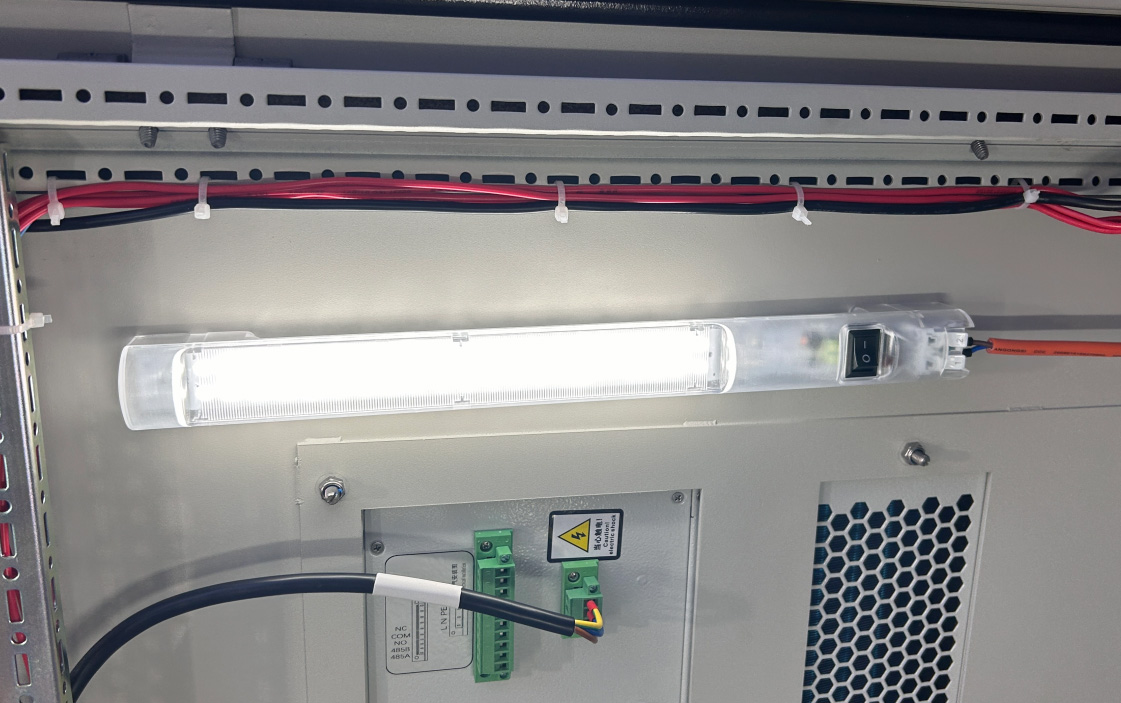

Step 2: Choose the Installation Method
Select the appropriate installation method based on the cabinet material and structure:

Magnetic Installation: Suitable for metal cabinets, e.g., model LK026-AC.M

• Clean the installation surface.

• Determine the magnetic adhesion points.

• Ensure a firm attachment.

Screw Installation: Universal installation method, e.g., model LK026-AC.S

• Mark the mounting hole positions.

• Drill holes and deburr.

• Tighten the mounting screws.

Step 3: Electrical Connection
Power Wiring:

• Confirm the voltage level (AC/DC and voltage value).

• Strip the cable insulation to the appropriate length.

• Connect to the terminal block and tighten securely.

• For plug-in connections, ensure a firm fit.

Using the LKL10 Series as an example:

• Supports wide voltage AC/DC110~230V.

• Terminal block supports 1×4mm² or 2×1.5mm² cables.

• Insulation strength: AC2500V, 1 minute.

Step 4: Functional Testing
Perform a complete test after installation:

1. Power-On Test: Observe the indicator status during initial power-up.

2. Switch Test: Test the physical switch or sensor function.

3. Lighting Test: Check the illumination range and uniformity.

4. Stability Test: Run for an extended period to check for temperature rise.

Step 5: Final Adjustments
Make fine adjustments based on the actual lighting effect:

• Adjust the irradiation angle (e.g., adjustable lamp body of the LKL10 series).

• Optimize sensor sensitivity (e.g., infrared sensor of the LK12-W series).

• Set the appropriate lighting mode.

Troubleshooting and Professional Tips

Common Problems and Solutions

Professional Maintenance Tips

• Regular Cleaning: Keep the lampshade clean to ensure light transmittance.

• Check Fixation: Periodically inspect the installation firmness.

• Performance Monitoring: Record trends in lighting effectiveness changes.

• Timely Replacement: Replace promptly if severe light decay is detected.

Why Choose Linkwell Cabinet Lights?

Excellent Product Features
Linkwell cabinet lights offer distinct technical advantages:

Advanced Lighting Technology:

• High-efficiency LEDs, e.g., LCL-15W luminous flux up to 1520 LM.

• High-quality color temperature 6500K, Color Rendering Index (CRI) Ra>75%.

• Low light decay design ensures long-term stable output.

Reliable Structural Design:

• High-quality materials, e.g., LCL series uses Aluminum + PC combination.

• Wide temperature adaptation, operating temperature range -40~+60°C.

• Professional protection rating ensures equipment safety.

Intelligent Functions:

• Multiple sensing modes, e.g., LK12-W built-in infrared sensor.

• Multi-level dimming functions meet different lighting needs.

• User-friendly design, e.g., PL263's 7-level brightness adjustment.

Comprehensive Product Series
Linkwell provides complete cabinet lighting solutions:

PL Series: Multi-functional Cabinet Lighting

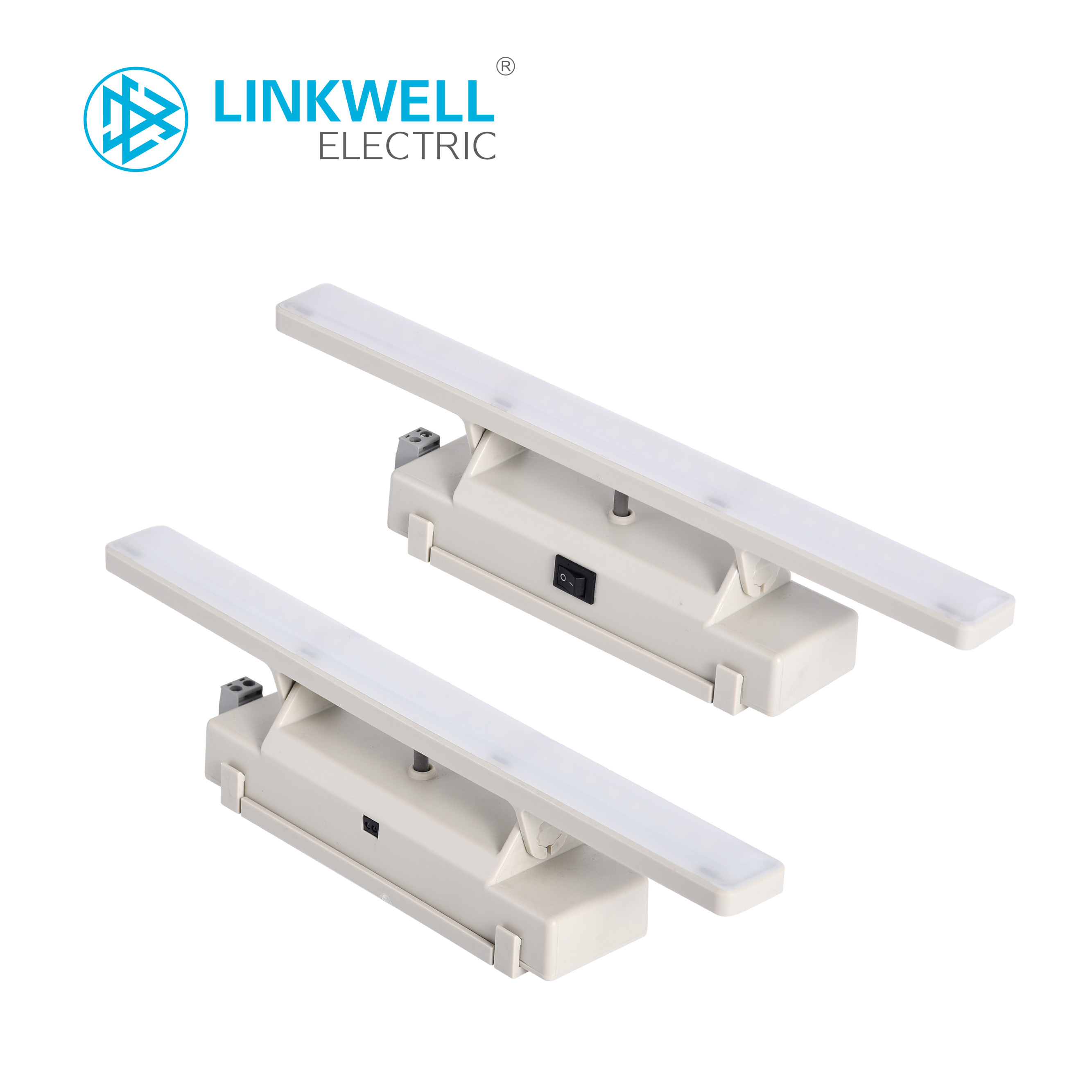

• PL263: Earpiece hook design, dual strong magnetic system.

• PL233/400: Human body induction, automatic shut-off function.

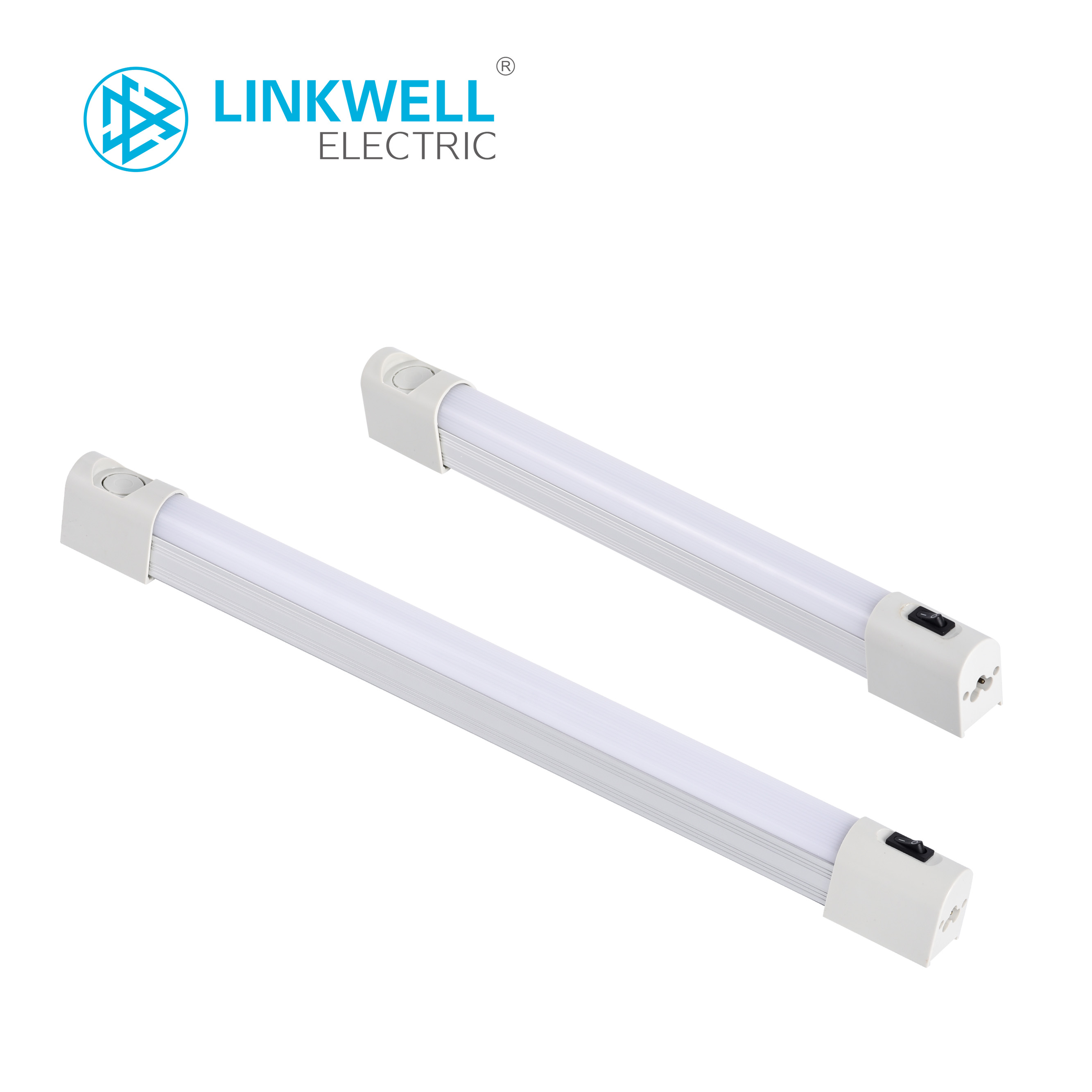

LCL Series: Professional Cabinet Lighting

• Power coverage from 6W to 15W.

• Luminous flux 640-1520 LM.

• Multiple installation methods.

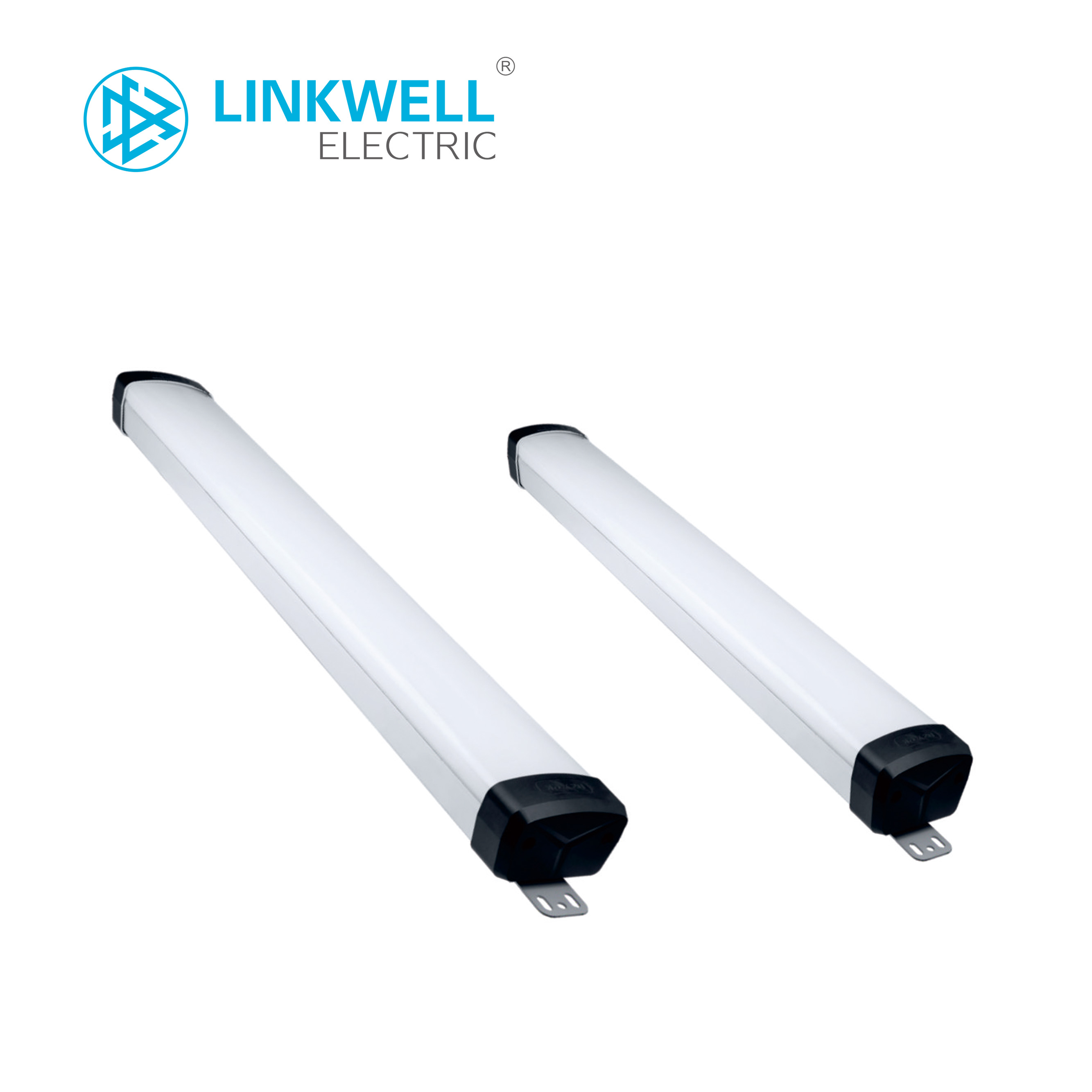

LK Series: Intelligent Cabinet Lighting

• LK12-W: Built-in infrared sensor.

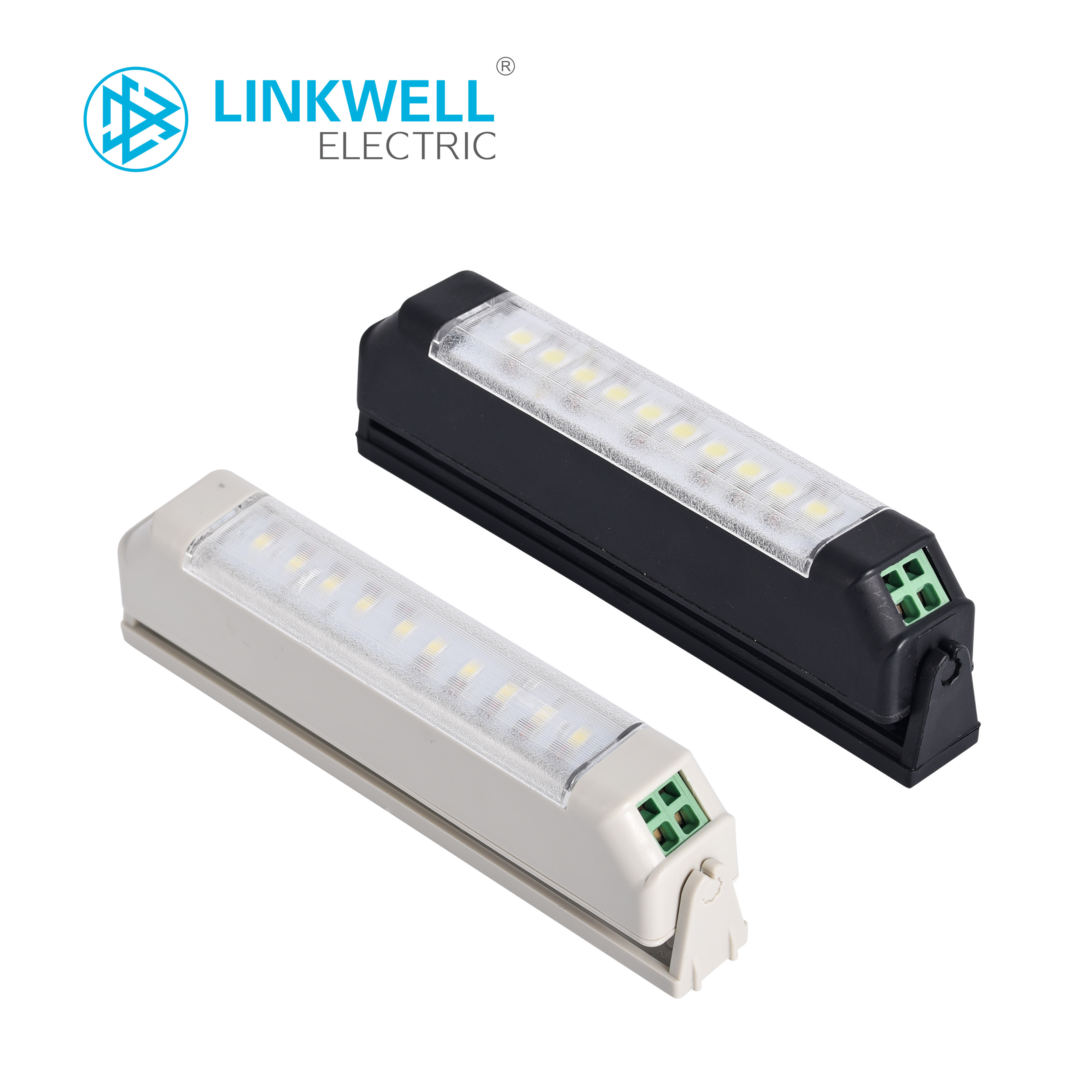

• LKL10-W: Adjustable angle design.

Frequently Asked Questions

How do I choose the right cabinet light for my cabinet?
Consider the following factors: cabinet size, lighting requirements, power supply type, installation method, special functional needs. Linkwell offers various specifications, ensuring a suitable model for your requirements.

What is the typical lifespan of a cabinet light?
Qualified cabinet lights can have a lifespan of over 50,000 hours. For example, several Linkwell products are designed for over 100,000 hours. Calculated at 8 hours of use per day, this translates to over 34 years of service.

Does a cabinet light require special maintenance after installation?
Cabinet lights are largely maintenance-free. It is recommended to regularly clean the lampshade surface, check the installation firmness, and inspect electrical connections every six months.

Will magnetically installed cabinet lights interfere with equipment inside the cabinet?
No. Linkwell cabinet lights use professionally designed magnets with strictly controlled magnetic fields, preventing interference with cabinet equipment. For precision instrument applications, the screw installation method can also be selected.

Can cabinet lights be used outdoors?
Standard cabinet lights have an IP20 protection rating, suitable for indoor environments. If needed for outdoor or humid environments, select products with the appropriate protection rating.
