In key sectors including industrial automation, wind power and photovoltaic inverters, electrical terminals inside control panels and cabinets serve as core hubs for power transmission. When tracing equipment failures, people often overlook small wiring terminals. However, accumulated dust, oxidation and corrosion at terminal connections continuously increase contact resistance, triggering abnormal overheating and voltage instability. In severe cases, this may lead to unplanned shutdowns, arc flash incidents and even electrical fires.
Statistics show that approximately 12% of switchboard failures stem from corrosion. Dirty and oxidized electrical terminals threaten the stable operation of critical production systems such as wind turbines, photovoltaic inverters and automated production lines. Regular cleaning and preventive maintenance of terminals represent the lowest-cost and most effective way to guarantee reliable equipment operation.
Terminals operate in cabinet environments characterized by dust, high humidity and drastic temperature fluctuations. Various contaminants gradually degrade connection performance:
Dust buildup blocks ventilation, raising internal cabinet temperature and causing frequent circuit breaker tripping and relay malfunctions.
Oil contaminants easily trap dust and moisture, accelerating metal oxidation and forming insulating oxide layers.
Corrosion layers drastically boost contact resistance, generating continuous heat at connections, melting cable insulation and triggering loose contacts and arc flashes.
Patina and white powdery rust formed by condensed moisture block current flow, resulting in intermittent signal loss and random equipment restarts.
Neglecting maintenance often leads to unexpected shutdowns, high repair costs and delayed production schedules. To mitigate risks fundamentally, enterprises should implement periodic cleaning maintenance and select high-quality corrosion-resistant terminals.
Linkwell screw terminals adopt premium copper substrates with mature tin-plating technology, delivering outstanding anti-oxidation and anti-corrosion performance — 40% better than standard connectors. They enable efficient power transmission and lower energy loss. Even under harsh working conditions, stable connection performance can be maintained, reducing failures caused by rust and corrosion and cutting long-term maintenance costs.
Visual inspection and operational status monitoring during routine patrols help detect corrosion risks at an early stage and prevent minor issues from escalating into major accidents.
Discoloration, patina, blue stains or white powdery rust on terminals and cables;
Heavy dust accumulation inside cabinets, together with condensation or water droplets around connectors;
Loose screws, damaged cable sheaths and sticky residues inside cabinets.
Maintenance Tip: Increase inspection frequency after heavy rains, prolonged high humidity or sharp temperature swings. Temperature fluctuations easily trigger condensation inside cabinets and accelerate metal corrosion.
The following symptoms usually signal oxidation and corrosion on terminals: Excessive voltage drop at terminals, intermittent signals, random equipment restarts; irregular circuit breaker tripping; abnormally hot cables or burnt odors; equipment startup failures and unresponsive operation.
Once these problems appear, shut down equipment promptly to clean terminals and assess corrosion depth. Severely corroded cables and connectors should be replaced directly.
Electrical cleaning constitutes high-risk work. All operations must comply strictly with safety regulations. Live-line cleaning is prohibited.
Follow Lockout/Tagout (LOTO) procedures to prevent accidental equipment energization.
Identify all power supply circuits of the cabinet and isolate all power sources. Use a voltage tester to confirm full power isolation.
Allow sufficient time for capacitors to discharge completely and implement safety grounding.
Wear appropriate PPE: insulating gloves, safety goggles, flame-resistant workwear and closed safety shoes.
✅ Recommended tools: Anti-static soft brushes, compressed air, lint-free cloths, fiberglass pens and brass brushes. Preferred cleaners: Isopropyl alcohol and professional aerosol electrical contact cleaners.
❌ Forbidden items: Abrasive tools such as steel wire brushes and sandpaper; strong corrosive chemicals, plain water and brake fluid, which scratch terminal plating and corrode plastic components.
Supplement: Linkwell tin-plated terminals are compatible with standard approved cleaning tools. Proper operation will not damage surface protective plating.

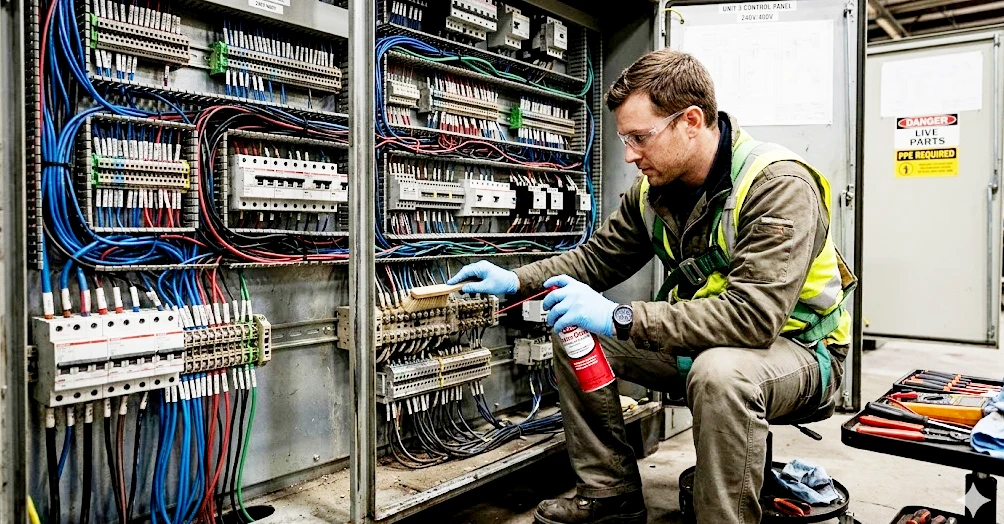

Remove surface dust using an anti-static brush and compressed air to stop particles from embedding into contact gaps during cleaning.

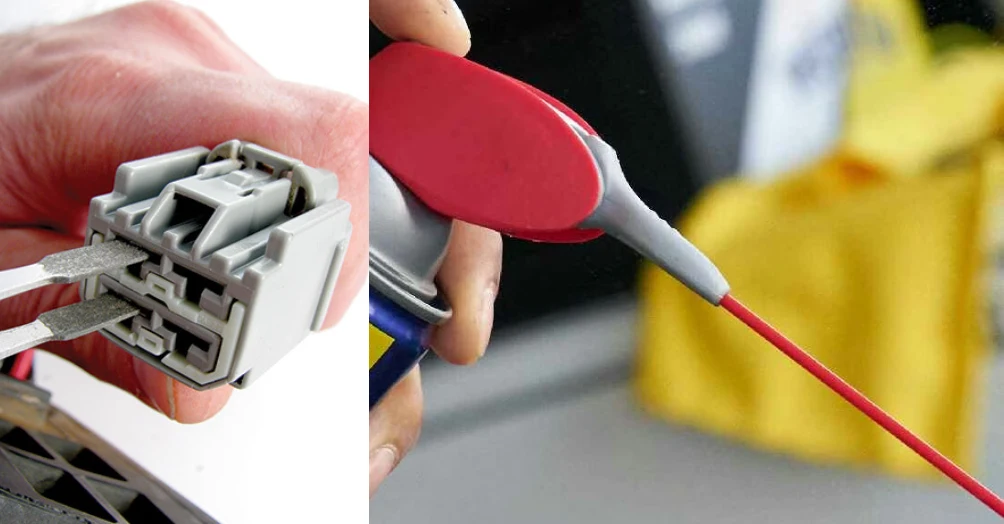

Spray cleaner onto cloths to wipe terminals instead of heavy direct spraying. Remove mild oxidation by wiping; gently clean stubborn corrosion spots with brass brushes; reach narrow areas using fiberglass pens.
If corrosion penetrates cable ends, cut off damaged sections and re-crimp the wiring.
After cleaning, blow residues away with compressed air and allow components to air dry fully. Assembly with wet parts is strictly forbidden.

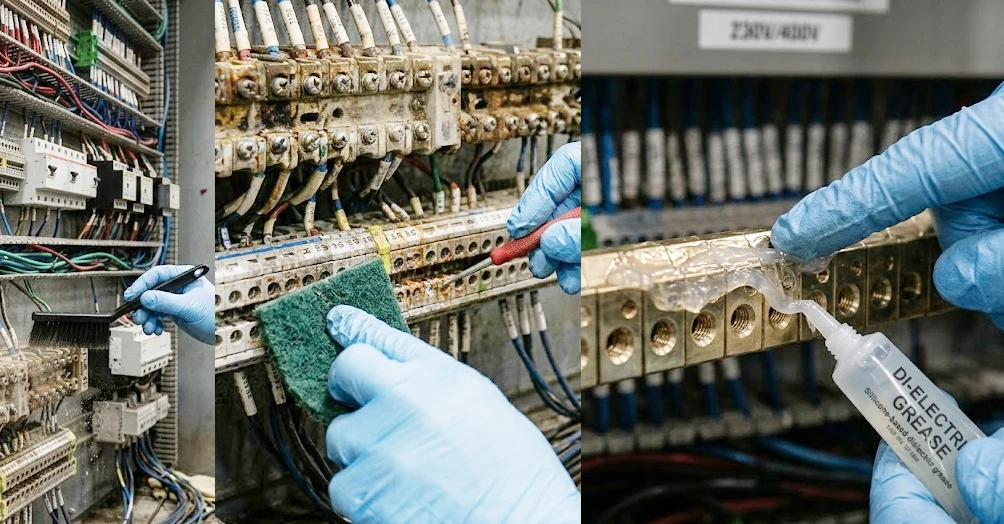

Once dry, apply a thin layer of dielectric grease on metal contacts to isolate moisture and dust and slow re-corrosion.
After reinstalling and tightening all components, carry out dual inspections:
Visual check: Ensure all wiring is securely fastened without leftover debris or damaged cables.
Performance test: Measure contact resistance with a multimeter; the ideal reading is less than 1 Ω.
Energize and test the equipment in stages to watch for abnormal noise, odors or overheating.
Cleaning only addresses existing corrosion. Long-term terminal protection relies on controlling temperature, humidity and dust levels inside cabinets.
Linkwell delivers a complete cabinet climate control solution: fan filter units, cabinet air conditioners and enclosure ventilation fans. These products continuously purify internal air, reduce humidity and eliminate condensation, minimizing erosion of electrical terminals by dust and moisture.
Supporting standardized preventive maintenance practices:
Standard operating environments: Conduct terminal inspection and cleaning every 3–6 months. Shorten maintenance cycles for dusty, humid outdoor or heavy industrial sites.
Regularly test grounding systems and circuit breaker performance.
Replace damaged cables promptly. Apply heat-shrink tubing and sealed connectors at repair points to enhance moisture and dust resistance.
Though seemingly insignificant, electrical terminals act as the vital “throat” of the entire power distribution system. A combination of periodic cleaning, standardized maintenance, corrosion-resistant connectors and cabinet environmental control maximizes prevention of overheating, short circuits and arc accidents, cutting losses caused by unplanned downtime.
Follow the full workflow including power isolation, scientific cleaning, inspection and review. Together with Linkwell corrosion-resistant screw terminals and cabinet temperature control & ventilation products, you can fully protect control panels and cabinet power distribution systems, supporting safe equipment operation for wind power, photovoltaic, intelligent manufacturing and other industries.
