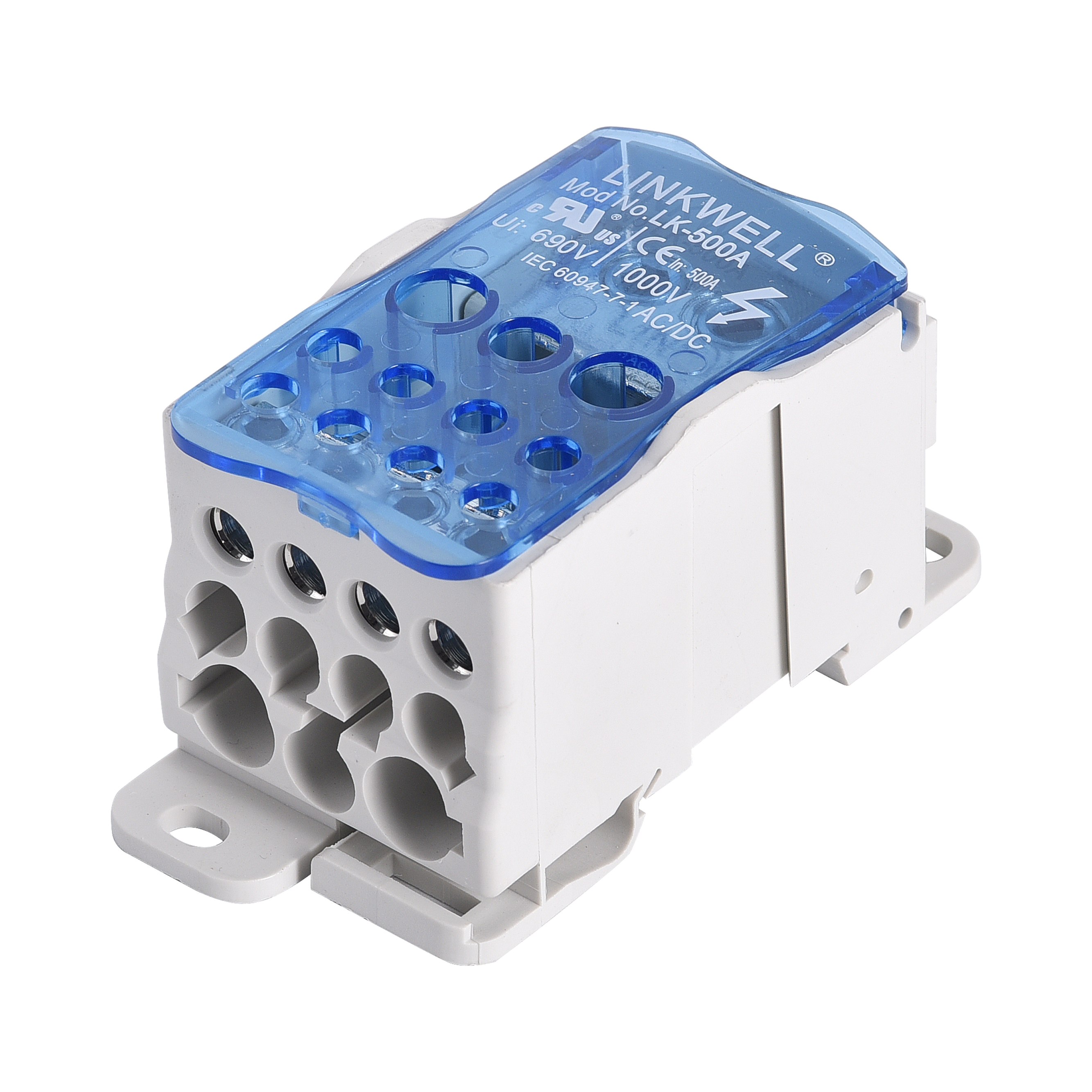

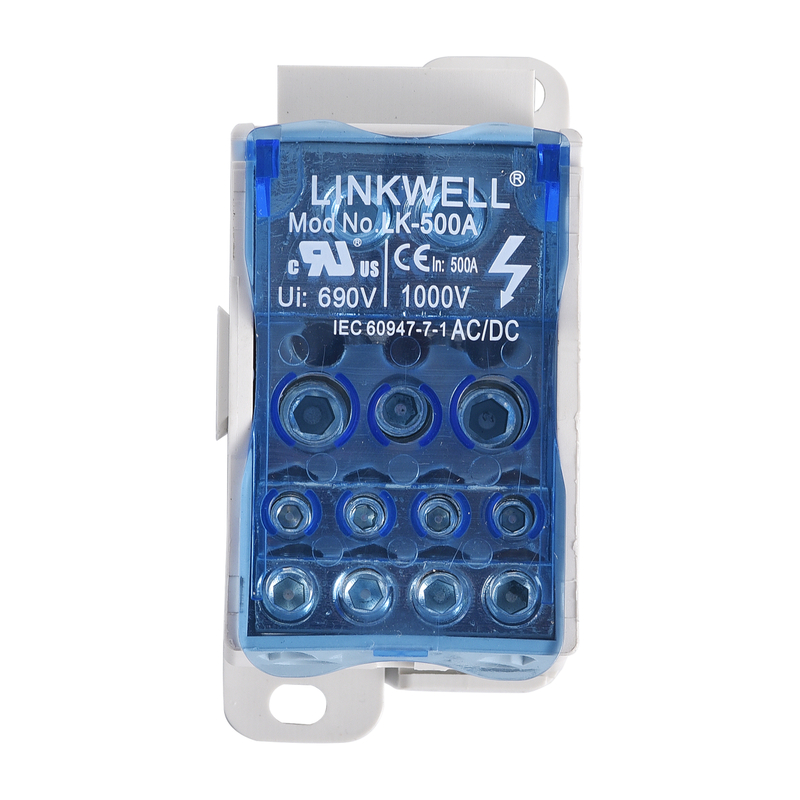

Junction box LK500A for power distribution box splitter cabinet

Availability:
Quantity:

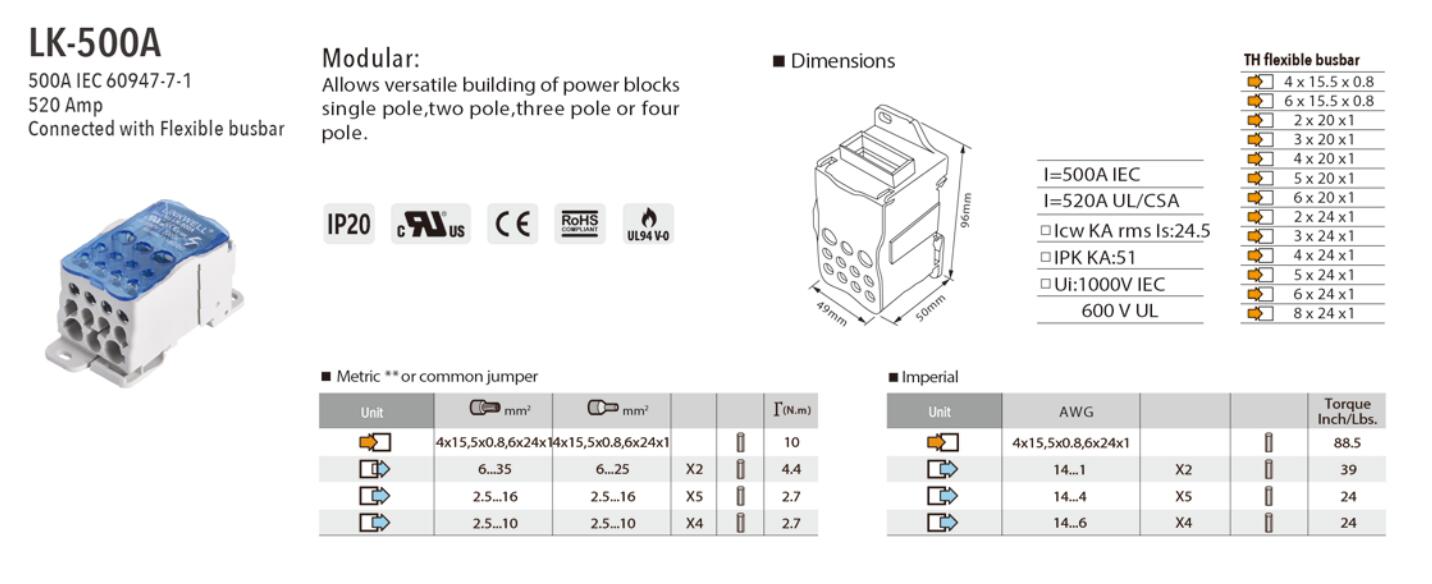

  • LK500A

  • LINKWELL

  • LK500A

  • LINKWELL

  • 690V

  • 96X50X49mm

  • Blue

  • IP20

  • CE,ROHS,UL

Cabinet UL junction box high power


characteristic:

You can see if the cable is connected reliably

Halogen free

IP20 protection against electric shock

95% contact

Flame retardant: UL94-V0

Tinned copper: copper cable or aluminum cable

The maximum withstand short-circuit current can reach 100KA-see ULE198301

Comply with ROHS standard

Flexible busbar can be directly plugged into and connected (LK500A)

Flexible busbars can be inserted and connected with flat connectors (LK250A&LK400A)
