Is Your Control Cabinet Overheating? A Complete Guide to the Critical Role and Selection of Filtered Exhaust Fans

Have you ever considered how the internal temperature fluctuations of that seemingly ordinary control cabinet in your workshop can directly impact the entire production line's operation? In fact, when the temperature inside a control cabinet exceeds 95°F (35°C) or the humidity climbs above 60%, the sensitive electronic components within are essentially dancing on a knife's edge—constantly at risk of failure or accelerated wear. This is not alarmist talk but an invisible threat occurring daily in industrial environments.

This article will delve into the core importance of thermal management and dust protection for control cabinets and provide you with a comprehensive analysis of the filtered exhaust fan as a key solution, helping you safeguard critical equipment and ensure uninterrupted production.

The Lethality of Control Cabinet Thermal Management: More Than Just "Overheating"

Within a sealed control cabinet, heat generated by densely packed, operating electronic components accumulates rapidly. This is far more serious than just making the enclosure "feel hot." According to the classic Arrhenius equation, for every 10°C an electronic component's temperature exceeds its rated level, its expected lifespan is halved. This means that core components like PLCs, frequency converters, and servo drives, consistently operating in an overheated environment, will see their failure rates increase exponentially.

The consequences of heat are multifaceted:

• Aging of insulating materials, leading to a surge in short-circuit risks.

• Drying out of electrolytes in electrolytic capacitors, causing capacity loss until failure.

• Parameter drift in semiconductors, triggering signal errors and logic confusion.

• Ultimately, all this leads to systematic, unplanned downtime, resulting in massive production losses and repair costs.

Simultaneously, the duo of dust and moisture—these "invisible killers"—are also at work. Dust accumulation can clog air channels, creating an insulating layer that further exacerbates overheating; conductive dust can directly cause circuit shorts. Moisture is the culprit behind corrosion and leakage currents, with its harmful effects becoming immediately apparent, especially in environments where humidity exceeds 60%.

Filtered Exhaust Fans: The Active Defense "Lungs" and "Shield"

Faced with the dual assault of heat and dust, passive cooling is insufficient. Filtered exhaust fans, as an active thermal management solution, play the role of the control cabinet's "respiratory system." Their value lies in two core functions:

1. The Powerful Cooling "Lungs"
Filtered exhaust fans actively expel hot air from the cabinet while drawing in cooler outside air, creating forced convection. This highly efficient forced air cooling method can quickly lower the internal cabinet temperature to near ambient levels. As long as your workspace temperature is lower than the cabinet interior, you can achieve significant cooling, effectively breaking through the "thermal ceiling" and providing an ideal working environment for electronic components.

2. The Precision Filtering "Shield"
While drawing in air, the built-in high-efficiency filter acts like a solid shield. It effectively intercepts airborne contaminants like dust, oil mist, and fibers, preventing them from entering the cabinet. High-quality filters can achieve a particle removal efficiency of over 95% for particles as small as 0.3 microns (HEPA filters can even reach 99.97%), creating a clean, dry internal space for precision electronics and fundamentally eliminating failures caused by contamination.

In simple terms, a well-designed filtered exhaust fan solves both the major problems of overheating and contamination through "expelling the old and taking in the new."

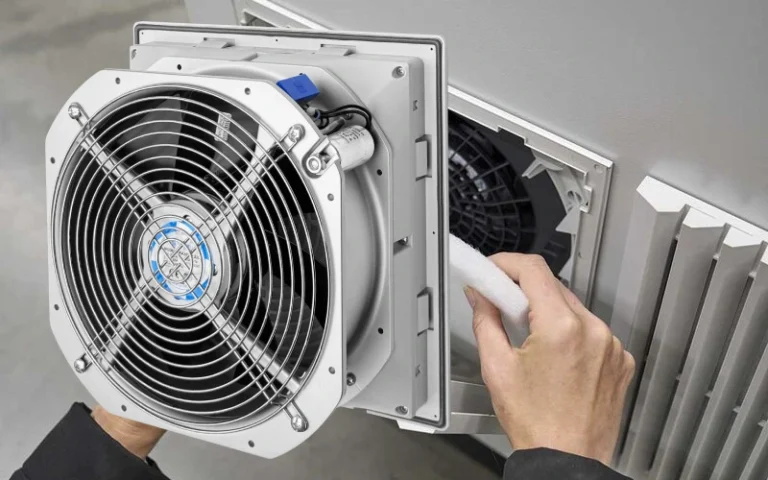

How to Choose the "Right" Fan for Your Control Cabinet?

Selecting a filtered exhaust fan isn't as simple as "buying by size"; it's a systematic engineering task requiring comprehensive evaluation. Here are the key selection steps:

Step 1: Assess Heat Load and Cabinet Conditions
This is the foundation for selection. You need to understand:

• Internal Heat Load: Calculate the total heat generation (usually expressed in watts or BTU/hour) of all electronic devices inside the cabinet.

• Environmental Conditions: The maximum ambient temperature, air cleanliness, and humidity where the control cabinet is located.

• Cabinet Characteristics: The cabinet's size (volume), material, color (affects solar heat gain), sealing, and whether it has other ventilation openings.

A simple rule of thumb is: Larger cabinets and higher heat loads require fans capable of moving more air (higher CFM value).

Step 2: Determine Required Airflow and Filtration Grade

• Airflow Calculation: Based on the heat load and the allowable temperature rise (typically, an internal temperature 5-10°C above ambient is considered good), calculate the minimum required airflow. When selecting a fan, its rated airflow should have some margin to account for increased resistance from filter loading.

• Filtration Grade Selection: Choose the appropriate filter based on environmental contamination levels and equipment protection requirements.

• Panel Filters: Suitable for primary filtration of larger particles.

• Pleated Filters: Larger filtration area, high dust holding capacity, medium efficiency.

• HEPA/ULPA Filters: Provide the highest level of protection, suitable for demanding environments like clean rooms, food/pharmaceutical processing, and high-precision electronics.

Step 3: Consider Installation, Control, and Maintenance Convenience

• Installation Method: Ensure the fan's mounting dimensions match the cabinet's cut-out. Follow the best practice of "low intake, high exhaust" to leverage the natural rise of hot air and avoid airflow short-circuiting.

• Intelligent Control: Consider pairing with a thermostat or humidity controller so the fan operates only when needed (e.g., when temperature exceeds a set point). This optimizes cooling and significantly saves energy, extending the fan's life.

• Maintenance Convenience: Choose models with filters that are easy to remove, clean, or replace, and plan a regular maintenance schedule.

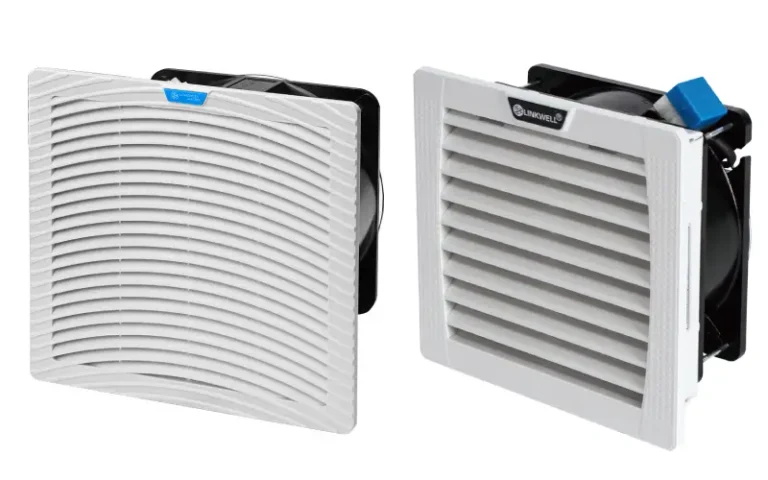

The Superior Choice: Why Do Linkwell Filtered Exhaust Fans Stand Out?

Among many brands, Linkwell, as a global leader in cabinet climate control solutions, has earned the trust of top industrial clients including ABB, SIEMENS, and Schneider Electric with its exceptional product performance and customer service. Choosing Linkwell gives you the following unparalleled advantages:

• Excellent Cooling and Filtration Performance: Utilizes high-efficiency motors and advanced fluid design to deliver stable, powerful airflow. Equipped with various grades of high-performance filters, ensuring particle filtration efficiency up to 99.97%, providing ICU-level protection for your equipment.

• Unmatched Reliability: Products are fully certified to international standards like CE and RoHS. Manufactured with high-quality, environmentally friendly materials like durable ABS plastic, featuring good water resistance (IP ratings), dustproof, and anti-corrosion properties, suitable for various harsh industrial environments from indoor to outdoor.

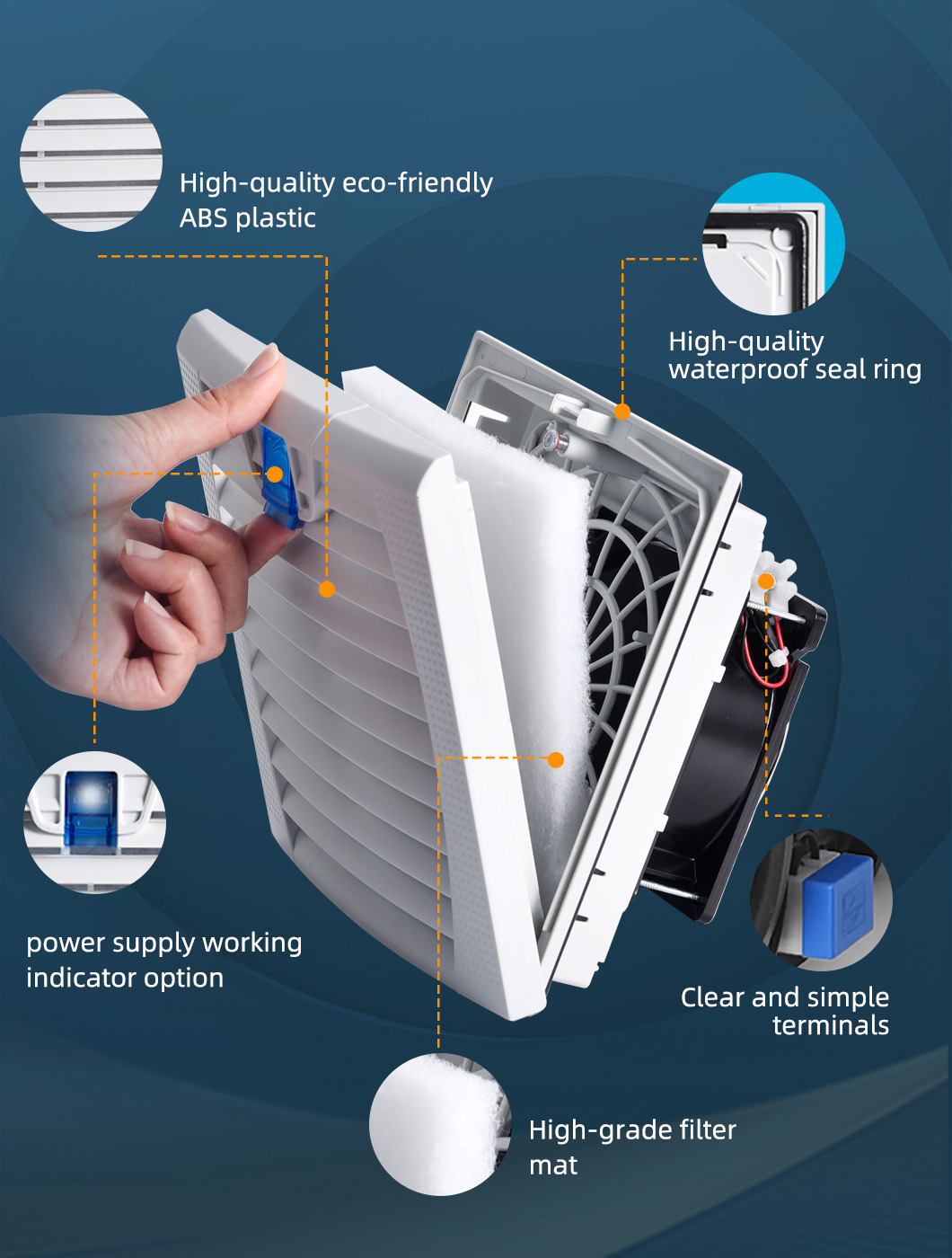

• Flexible Customized Solutions: Offers comprehensive services from standard products to fully custom solutions. Whether it's special dimensions, colors (e.g., multi-color options for LK32 series), specific voltages, or EMC-compliant models (e.g., LK66 series), Linkwell can meet your unique requirements.

• Convenient Installation and Maintenance: Modular design with universal mounting holes and clear instructions for easy and quick installation. User-friendly filter replacement design significantly reduces the time and cost of routine maintenance.

• Professional Global Support Network: Operations span over 100 countries worldwide, providing end-to-end service from technical consultation and selection support to installation guidance. Fast delivery cycles and reliable after-sales support give you peace of mind.

Installation and Maintenance Best Practices: Keeping Your Fan Running Efficiently

Installation Key Points:

1. Accurate Positioning: Intake fans are recommended for the lower side or door panel of the cabinet; exhaust fans should be installed at the top to form diagonal airflow.

2. Correct Direction: Before installation, always verify the fan's airflow direction arrow to ensure it's in "exhaust" mode, preventing reverse installation.

3. Maintain Distance: Keep intake and exhaust ports as far apart as possible to avoid airflow short-circuiting, which affects cooling effectiveness.

Maintenance Golden Rules:

• Regular Inspection: It is recommended to check the filter condition every 1-3 months.

• Timely Replacement: Filter replacement cycles depend on environmental cleanliness. Typically, pre-filters last 2-4 weeks, and main filters last 6-12 months. Immediately inspect and replace if you notice significantly reduced airflow, dust accumulation inside the cabinet, or abnormal temperature rise.

• Overall Cleaning: Periodically clean fan blades and the cabinet interior with compressed air to ensure optimal heat dissipation paths remain clear.

Conclusion: Invest in Prevention, Reap Long-Term Benefits

Equipping your control cabinet with a suitable filtered exhaust fan is by no means a discretionary expense but a critical long-term investment. Through active, precise thermal management and contaminant control, it directly protects your core electrical assets, effectively avoiding the unexpected downtime, production losses, and high repair costs caused by overheating and pollution.

Among the many solutions available, Linkwell, with its profound technical expertise, reliable product quality, and customer-centric philosophy, is the ideal partner to ensure the safe, efficient, and long-lasting operation of your control cabinets. From industrial control panels to telecommunications base stations, from CNC machine tools to energy distribution systems, Linkwell's cooling solutions are everywhere, silently safeguarding the steady pulse of global industry.

Your equipment deserves the best protection.
Take action now and give your control cabinet a more intelligent "breath."
