At the heart of industrial automation and control systems, electrical control cabinets ensure the stable operation of precision components. Within this "digital heart," the thermostat plays a critical role as the "temperature guardian." A properly functioning thermostat not only effectively prevents equipment from overheating or excessive cooling but also significantly enhances system stability, extends equipment service life, and enables intelligent energy savings.
However, have you ever wondered: How can we verify if this "silent guardian" is performing its duties correctly? When abnormal temperature fluctuations occur, can we quickly and accurately identify the root cause?
Today, Linkwell presents a detailed professional guide to help you master the testing and maintenance of cabinet thermostats. Through systematic procedures and professional diagnostic methods, you will become an expert in equipment health management, eliminating potential failure risks in their early stages.
Adequate preparation is the primary prerequisite for ensuring safety and efficiency in any industrial maintenance task. Before testing a thermostat, be sure to gather the following professional tools:
High-Precision Multimeter: The core tool for electrical diagnostics, capable of accurately measuring voltage, resistance, and continuity, providing key data to assess the thermostat's operational status.
Insulated Screwdriver Set: Various sizes of insulated screwdrivers ensure the safe opening of different control cabinets while avoiding the risk of electrical short circuits.
Industrial-Grade Temperature Calibrator: A professional temperature measurement device that provides a reference standard, essential for verifying thermostat accuracy.
Heat Gun (with adjustable temperature): A professional device for simulating temperature changes, allowing precise control of heating rates and ensuring a safe and reliable testing process.
Full Set of Personal Protective Equipment (PPE): Includes insulated gloves, safety glasses, and cut-resistant gloves to provide comprehensive protection for the operator.
Pro Tip: Before starting operations, strictly implement the "Lockout-Tagout" procedure and use a voltage tester for multiple verifications. In the field of industrial safety, even the slightest oversight can lead to serious consequences.

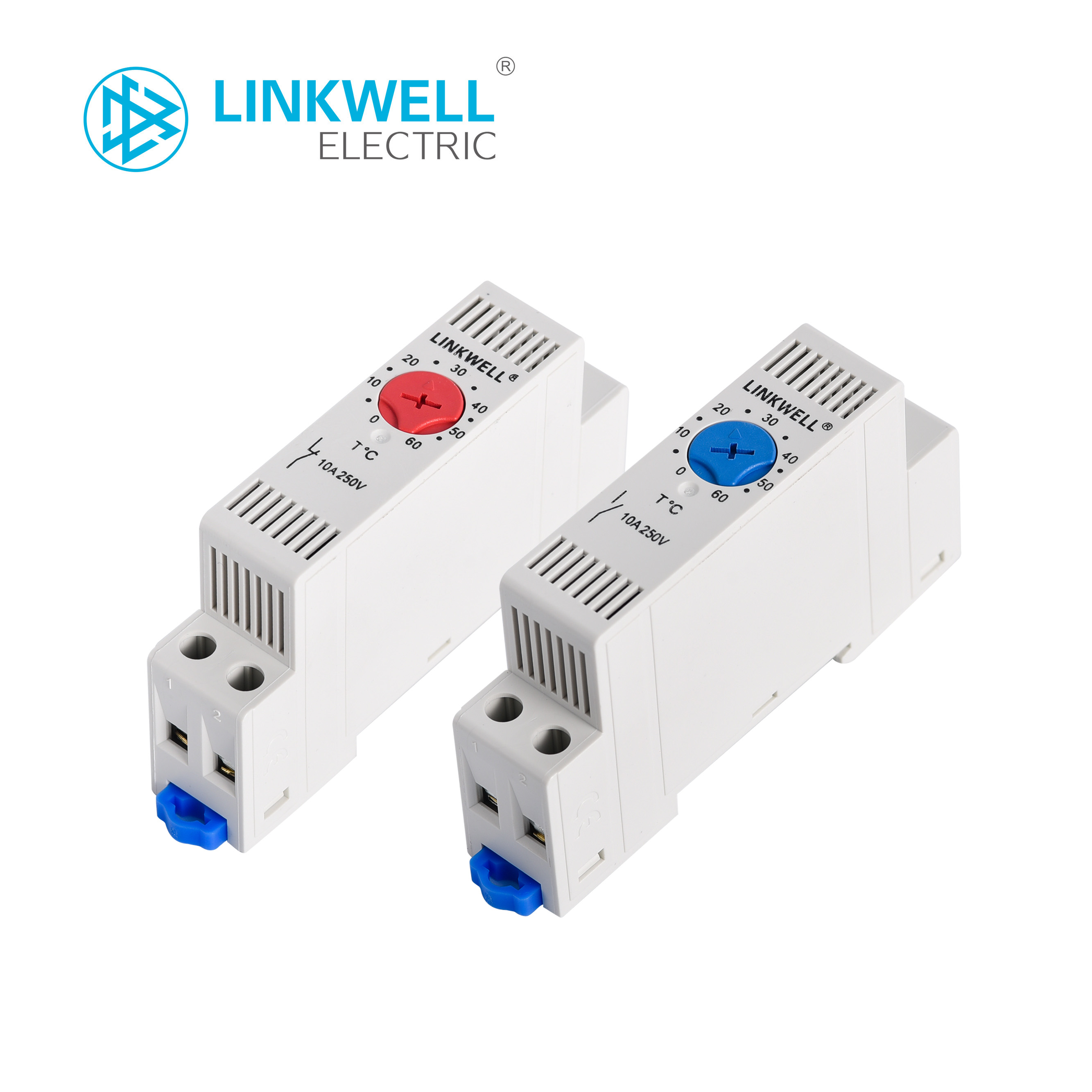

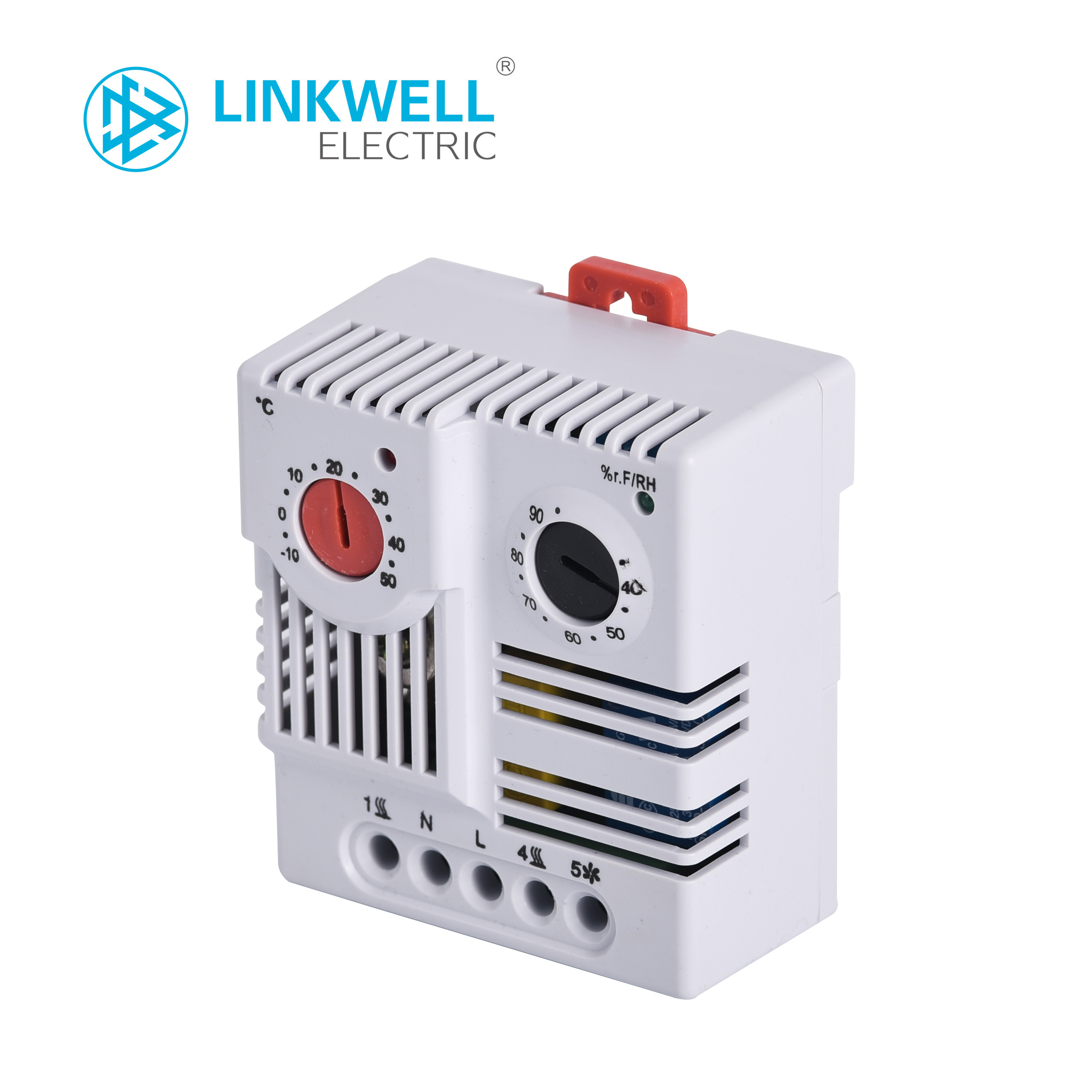

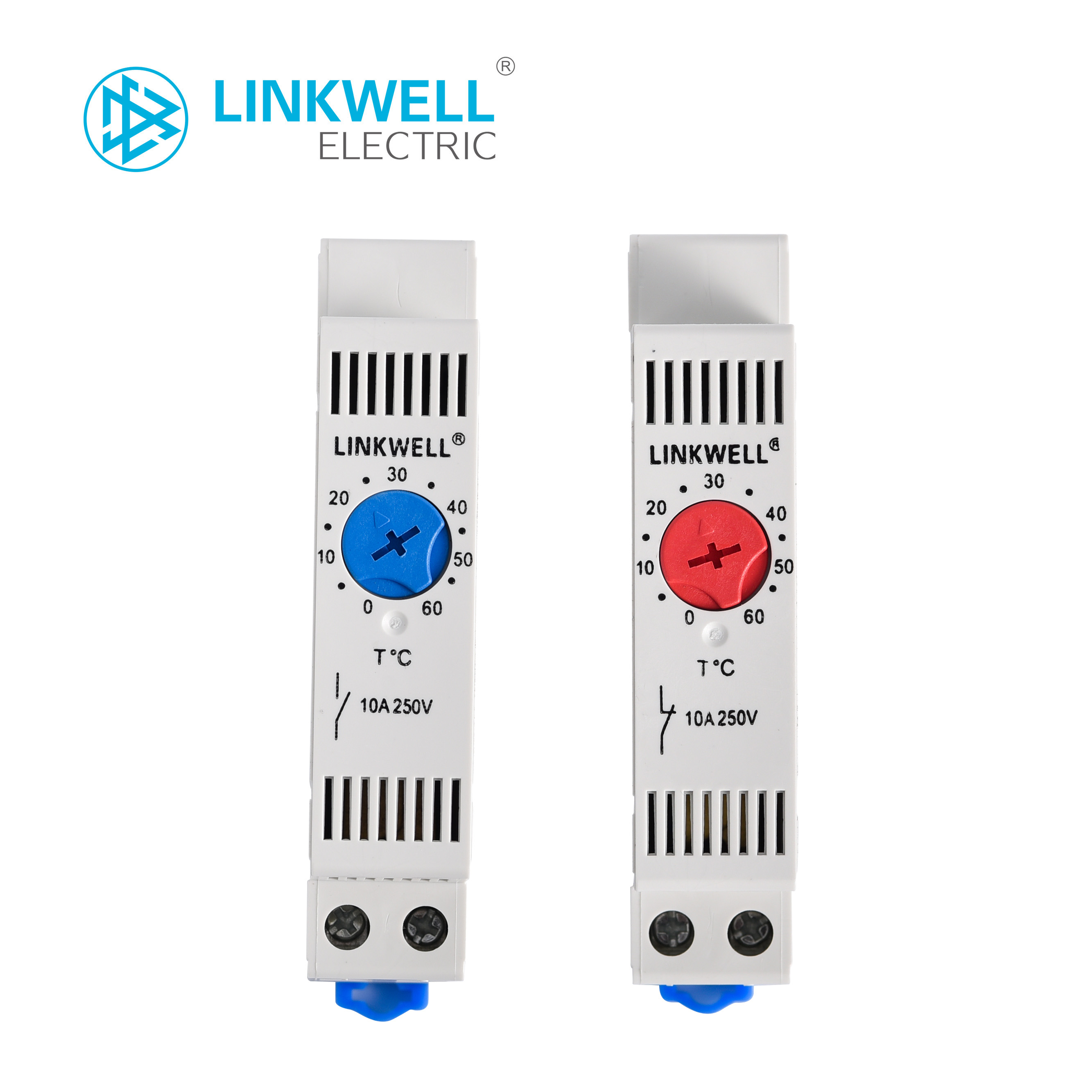

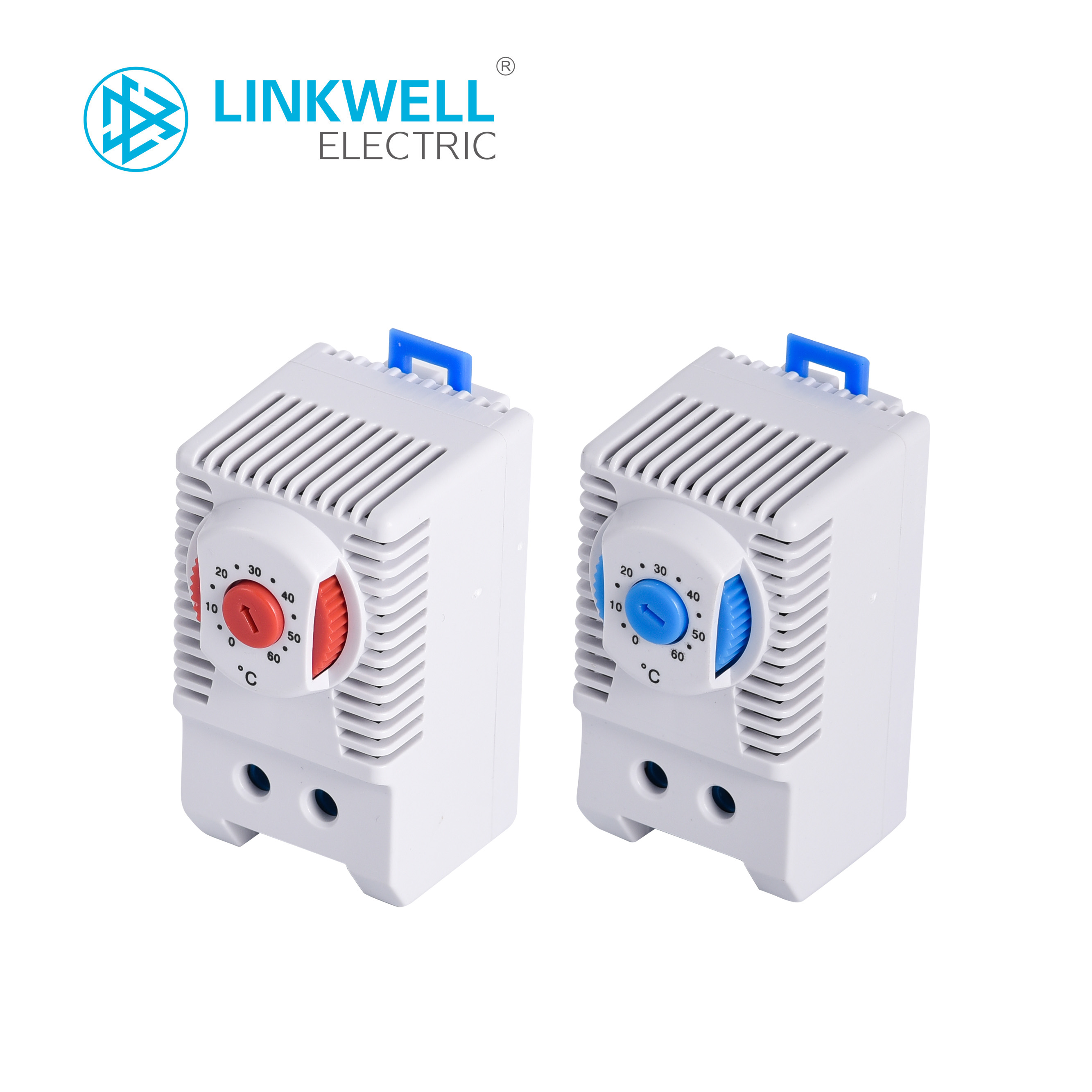

Before delving into the testing process, it's essential to understand the technical characteristics of a high-quality thermostat. Linkwell thermostats, with their exceptional technical performance, have become the preferred brand in the field of industrial automation:
Precision Measurement and Control: Utilizes advanced digital temperature sensing technology with a measurement accuracy of up to ±0.5°C, ensuring precise and reliable temperature control.
Comprehensive Safety Certifications: Products are certified to international standards such as IEC 61439, UL 508A, CE, and RoHS. Some models also carry ATEX certification for use in hazardous environments, meeting various stringent requirements.
Intelligent Energy Management: Features built-in adaptive control algorithms that automatically adjust operating parameters based on ambient temperature, optimizing energy efficiency.
Exceptional Environmental Adaptability: The housing is made of high-strength engineering materials with a protection rating of up to IP67, ensuring stable operation in harsh industrial environments.
Long Service Life: Subjected to rigorous endurance testing, these thermostats are designed for a service life of over 15 years, providing customers with long-term, stable performance.
Follow this systematic testing process to ensure a comprehensive and accurate assessment of the thermostat:
Step 1: Comprehensive Safety Preparation and System Access
Execute a complete power isolation procedure, including disconnecting the main power, implementing lockout-tagout, and verifying the absence of voltage.
Don full Personal Protective Equipment to ensure operational safety.
Use appropriate tools to open the control cabinet, taking care to protect the cabinet seals.
Accurately identify the thermostat's installation location and check if the surrounding environment meets installation requirements.
Record the initial status, including key information such as current temperature display and wiring status.
Step 2: In-Depth Electrical Characteristic Analysis
Conduct a professional electrical test to comprehensively evaluate the thermostat's operating status:
Power Quality Check:
Measure input voltage stability.
Check power waveform integrity.
Record voltage fluctuation range.
Contact Resistance Test:
Use a micro-ohmmeter to measure contact resistance.
Compare resistance values at different temperature states.
Analyze the trend of contact resistance changes.
Insulation Performance Assessment:
Measure the insulation resistance from terminals to ground.
Check the aging condition of the insulation materials.
Record the influence of ambient temperature and humidity on insulation.
Pro Tip: Record all data in detail during the testing process to establish an equipment health file, providing data support for predictive maintenance.
Step 3: Temperature Response Characteristic Verification
Use professional temperature testing methods to verify the thermostat's measurement and control accuracy:
Reference Temperature Calibration:
Use a metrologically certified temperature standard.
Perform comparative tests at multiple temperature points.
Record system errors and establish a correction curve.
Dynamic Response Test:
Control the rate of temperature change.
Record the response time and overshoot.
Analyze the stability of the control system.
Limit Condition Verification:
Test the operating characteristics at critical temperature points.
Verify the reliability of protection functions.
Evaluate performance under extreme operating conditions.
Step 4: Comprehensive Performance Evaluation and Maintenance Recommendations
Conduct a thorough analysis based on the test data:
Criteria for Excellent Performance:
All electrical parameters are within allowable limits.
Temperature control accuracy meets technical specifications.
Protection functions operate accurately and reliably.
Early Warning Signs Requiring Maintenance:
Parameter drift exceeds the allowable range.
Response characteristics significantly deteriorate.
Abnormal noise or display anomalies occur.
Clear Indicators for Immediate Replacement:
Severe degradation of electrical insulation performance.
Core functions fail.
The design service life has been reached.
In practical industrial applications, we need the ability for in-depth problem diagnosis:
Typical Failure Mode Analysis:
Sensor Drift: Manifests as a systematic deviation between the measured value and the actual temperature.
Contactor Aging: Leads to increased contact resistance, affecting control accuracy.
Electronic Component Failure: Causes functional abnormalities or complete failure.
Environmental Factor Influence: Includes external factors such as dust, corrosion, and vibration.
Advanced Diagnostic Techniques:
Use temperature loggers for long-term trend analysis.
Detect temperature distribution via infrared thermal imaging.
Utilize vibration analysis to assess mechanical condition.
Excellent equipment management requires the establishment of a systematic maintenance framework:
Regular Maintenance Schedule:
Monthly: Visual inspection and basic cleaning.
Quarterly: Functional testing and parameter verification.
Annually: Comprehensive overhaul and performance calibration.
Every Three Years: In-depth maintenance and component replacement.
Maintenance Record Management:
Establish a complete equipment lifecycle file, including:
Detailed records of each maintenance activity.
Tracking of fault handling processes.
Trend analysis of performance changes.
Complete history of spare parts replacements.
Q: How should the test cycle be adjusted in extreme industrial environments?
A: In harsh environments such as high temperature, high humidity, or dusty conditions, it is recommended to shorten the routine test cycle by 50%. Especially in regions with significant seasonal variations, additional inspections should be performed during seasonal transitions.
Q: How to establish a performance baseline for a thermostat?
A: It is recommended to conduct a comprehensive baseline test one month after new equipment is commissioned, recording all parameters as the performance baseline. Subsequent test data should be compared against this baseline for analysis.
Q: What measures can enhance reliability in complex industrial environments?
A: We recommend adopting a multi-layer protection strategy: select products with higher protection ratings, add protective accessories, implement redundant configurations, and establish early warning mechanisms to form a comprehensive protection system.
In the Industry 4.0 era, refined equipment management has become a key component of corporate competitiveness. By establishing a scientific testing and maintenance system, companies can not only ensure the stable operation of production systems but also achieve:
Equipment lifespan extended by over 30%.
Unplanned downtime reduced by over 60%.
Energy efficiency improved by over 15%.
Maintenance costs lowered by over 25%.
Let's work together to transform equipment maintenance from "reactive repair" to "proactive prevention," and jointly build a safe, efficient, and intelligent industrial operating environment.
