Guide to Selecting Control Transformers for Industrial Panels: Avoid Traps and Choose the Right Stable Core

In industrial automation scenarios, the control transformer is the "power heart" of the industrial panel—it silently provides stable and safe low-voltage power supply for core components such as PLCs, relays, and indicator lights, directly determining the operational reliability of the entire automation system. Many industrial control professionals have surely encountered such troubles: PLC suddenly restarts for no reason, relays frequently fail to pull in, indicator lights dim inexplicably, or even equipment is directly damaged. After a long period of troubleshooting, it is found that the root cause is the selection of an inappropriate control transformer.

Although it seems like a small power component, choosing the wrong one may lead to production line shutdowns, soaring maintenance costs, and compliance risks. Today, we will fully break down the selection logic of control transformers for industrial panels, avoid common pitfalls, and recommend reliable solutions more suitable for industrial scenarios, allowing your automation system to operate stably and avoid detours.

I. First, Understand: How Important is a Control Transformer?

The control circuit of an industrial panel is inseparable from stable low-voltage power supply. The core function of a control transformer is to convert the high voltage of the industrial power grid (such as 380V, 220V) into the safe low voltage required by the control circuit (such as 24V, 12V), while undertaking three key missions that are indispensable:

• Voltage Regulation: Even if the industrial power grid fluctuates, it can stably output voltage, avoiding faults of sensitive equipment such as PLCs and relays caused by unstable voltage, which is also the core key to solving the problem of "frequent equipment restart".

• Noise Isolation: There is a lot of electrical interference in the industrial environment. The control transformer can effectively shield interference signals and protect the control circuit from impact, especially suitable for complex scenarios where high-power equipment such as frequency converters and welding machines coexist.

• System Protection: It separates the control circuit from the power circuit, resists voltage surges and instantaneous impacts, extends the service life of equipment, and reduces safety risks caused by electrical faults.

Simply put, if the control transformer is selected correctly, the automation system can be "as stable as a mountain"; if selected incorrectly, it will become an "invisible hidden danger" of the production line. The following common problems are almost all related to improper selection:

It is worth noting that the core of selection is never just "voltage ratio matching", but to fit the actual load, installation environment and compliance requirements of your industrial panel, which is also the first trap that many people easily fall into.

II. Main Types of Control Transformers: Choose on Demand Without Blindness

In industrial scenarios, there are various types of control transformers, and different types are suitable for different application scenarios. Blind selection will lead to performance waste or failure to meet requirements. The following are the 6 most common types, which can be matched according to your panel needs:

As a professional supplier deeply engaged in the industrial electrical field, Linkwell can provide all types of control transformers. Whether it is a standard model or a customized demand, it can accurately match your panel scenario, avoiding the problem of "overkill" or "insufficient capacity".

III. 4 Steps for Accurate Selection to Avoid All Traps

Selection does not require complex calculations. Master the following 4 core steps, and you can quickly select a suitable control transformer, taking into account stability, safety and economy.

Step 1: Calculate Load and Inrush VA, and Leave Sufficient Safety Margin

When selecting, many people only simply add up the rated VA values of control equipment, but ignore the instantaneous inrush current when equipment such as contactors and relays start—which is also one of the main reasons for transformer overheating and tripping. The correct calculation method is:

1. Add up the VA values of all control equipment running at the same time to get the steady-state VA;

2. For inductive equipment such as contactors and relays, multiply their VA values by the inrush coefficient (use 5x as the safe default if the exact coefficient is unknown) to get the transient VA;

3. Add the highest transient VA to the steady-state total, and then add a 20%-25% safety margin—reserving a margin can not only cope with voltage drops, but also adapt to the future upgrade needs of the panel.

Tip: It is better to choose a "slightly larger" transformer than a "just right" one. A slightly larger transformer is far more durable and safer than one that barely works under peak load, and can also reduce long-term maintenance costs. Just like in the machine tool production line, the pull-in power of the AC contactor can reach 10 times the holding power. If sufficient margin is not reserved, frequent tripping is likely to occur.

Step 2: Match Input and Output Voltage to Avoid Equipment Damage

Voltage matching is the basis of selection. Once wrong, it will directly lead to equipment burnout or failure to operate. It is necessary to focus on checking the following core parameters to ensure full compatibility with your industrial panel:

Step 3: Evaluate the Environment and Installation to Extend Service Life

Temperature, humidity, dust, oil pollution and other factors in the industrial environment will directly affect the performance and service life of the transformer. Especially in high-temperature, high-humidity and dusty workshops, the following points should be focused on when selecting:

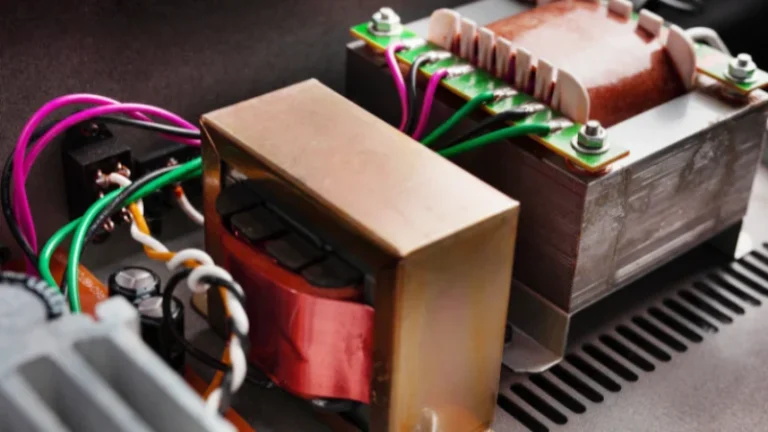

• High-temperature environment: Select a transformer with a high temperature resistance level, preferably H-class insulation material with a temperature resistance of up to 180℃, and pay attention to the cooling method to avoid overheating;

• Humid/dusty environment: Select an enclosed transformer with IP54 or above protection level to prevent insulation dampness and dust accumulation from causing faults;

• Installation notes: Ensure that the installation position is well-ventilated to avoid blocked air flow; regularly clean and check the terminals to prevent loosening and oxidation; ground correctly to reduce safety risks.

In addition, partial discharge detection and thermal imaging technology can be used to detect overheating, insulation aging and other problems in advance, and eliminate faults in the bud.

Step 4: Confirm Compliance Certifications to Ensure Safety and Compliance

Compliance of industrial equipment is crucial. Control transformers must meet corresponding industry standards and certifications, otherwise they may face compliance risks and fail to ensure equipment safety. The following certifications should be focused on checking:

• International certifications: UL (US safety standard), CE (European safety standard), to ensure that the product meets international safety specifications;

• Domestic certifications: CCC, ROHS, to adapt to the compliance requirements of domestic industrial scenarios;

• Industry standards: Comply with IEEE C57.12.00 (power transformer test standard) and DOE 2016 standard (energy efficiency requirements for transformers of 2500kVA and below).

Tip: Compliance requirements vary in different regions and industries. Be sure to confirm local regulations in advance and select certified products that meet the standards.

IV. Common Selection Mistakes: Be Sure to Avoid Them!

Many industrial control professionals easily fall into the following 3 mistakes when selecting, which ultimately lead to equipment failure and cost waste. Check and self-examine quickly:

Mistake 1: Underestimating Power Demand and Ignoring Inrush Current

Simply adding up the rated VA values of equipment, ignoring the instantaneous inrush current of contactors, relays, etc., and not leaving a safety margin, leading to the transformer working under overload for a long time—not only will it overheat and reduce efficiency, but also accelerate insulation aging, shorten service life, and even cause system failures. An equipment factory once caused the transformer to trip as soon as it was turned on due to this mistake, with a monthly loss of more than 50,000 yuan.

Mistake 2: Ignoring Installation and Environmental Factors

Thinking that "as long as the parameters match, it is okay", ignoring the ventilation and temperature humidity of the installation position, or skipping pre-installation inspection, leading to transformer failure due to poor heat dissipation and damp insulation. For example, if a transformer in a humid workshop does not select the appropriate protection level, insulation short circuit is likely to occur, leading to production line shutdown.

Mistake 3: Ignoring Isolation and Certifications

To save costs, choosing a transformer without isolation function and compliance certifications can not only fail to shield electrical interference, but also face compliance risks, and even cause safety accidents due to poor insulation. Especially in sensitive equipment scenarios, the isolation function can effectively protect core components such as PLCs from faults caused by interference.

V. Linkwell: More Than a Transformer, a Reliable Partner for Industrial Panels

Choosing the right control transformer not only requires mastering the correct selection method, but also requires choosing a reliable supplier—a good supplier can provide you with certified products, customized services and professional support, helping you avoid all selection traps and reduce maintenance costs.

As a supplier focusing on the industrial electrical field, Linkwell always takes "stability, safety and customization" as the core, providing high-quality control transformer solutions for global industrial panel users. Its core advantages are clear at a glance:

1. Complete Certifications and Reliable Quality

All control transformers have passed international and domestic certifications such as UL, CE, CCC and ROHS. The defect rate is maintained at 1 in 10,000, which is much lower than the international standard of 1 in 3,000, ensuring that the products meet safety and compliance requirements and operate stably for a long time.

2. Full-Scenario Customization for Accurate Adaptation

We reject "one-size-fits-all" solutions. According to your panel needs, we can customize transformers with specific voltage, frequency, capacity and installation methods, supporting multi-range primary/secondary voltage, integrated fuse blocks, customized terminal layouts, etc., which perfectly fit your panel layout and simplify the installation process.

3. Adaptation to Harsh Environments and Longer Service Life

Adopting high-quality insulation materials and intelligent cooling design, it has excellent temperature resistance, dust-proof and moisture-proof performance, and can cope with harsh industrial environments such as high temperature, high humidity and heavy dust. The service life can reach 10-15 years. If installed correctly and maintained regularly, the service life can be further extended.

4. Professional Support and Quick Response

We have a professional team of engineers who respond to inquiries within 2 hours, providing full-process support such as product selection guidance, OEM customization, quality inspection and after-sales service. At the same time, we provide fast delivery service to ensure that the project progress is not delayed.

VI. Selection Summary and Quick Checklist

The core of selecting a control transformer for an industrial panel is "matching demand, leaving sufficient margin, complying with regulations and adapting to the environment", which is summarized into 5 key steps:

1. Calculate the steady-state VA and inrush VA of the control equipment, and add a 20%-25% safety margin;

2. Match input/output voltage, frequency and other parameters to ensure consistency with panel requirements;

3. Evaluate the installation environment and select a transformer with appropriate protection level and cooling method;

4. Confirm that the product meets all compliance and certification standards to avoid compliance risks;

5. Choose a reliable supplier (such as Linkwell) to obtain customized services and professional support.

Finally, we have sorted out a quick checklist for you to check and self-examine during selection to ensure nothing goes wrong:

• ✅ The system voltage and power demand have been accurately calculated, with sufficient safety margin reserved;

• ✅ The input/output voltage and frequency match the factory power grid and control equipment;

• ✅ The protection level and insulation level are suitable for the installation environment;

• ✅ The product has necessary certifications such as UL and CE, meeting industry standards;

• ✅ Reserve power space for future panel upgrades;

• ✅ Choose a reliable supplier that supports customization and professional after-sales service.

Frequently Asked Questions (FAQ)

Q1: How to determine the correct VA rating of the transformer?

A: Add up the VA values of all equipment running at the same time (steady-state VA), add the inrush VA of contactors, relays and other equipment (VA × inrush coefficient, default 5x), and then add a 20%-25% safety margin, which is the appropriate VA rating.

Q2: Can I customize a control transformer for my industrial panel?

A: Yes! Linkwell supports full-scenario customization. According to your panel needs, we can customize voltage, power, installation method, shell, terminal layout, etc., to ensure accurate adaptation and simplify the installation process.

Q3: What is the service life of a control transformer?

A: The service life of a conventional control transformer is 10-15 years. Linkwell products have a longer service life due to the use of high-quality materials and strict quality control; if installed correctly and maintained regularly, the service life can be further extended, reducing replacement costs.

Q4: In which scenarios can Linkwell control transformers be used?

A: It is widely used in industrial control cabinets, automation panels, telecommunications systems, heating equipment, precision instruments and other scenarios, and can adapt to various harsh industrial environments to provide stable and reliable low-voltage power supply. Among them, the industrial control cabinet is the core and most common application scenario of the control transformer. The following focuses on the application details and adaptation requirements of the control transformer in the cabinet scenario:

Special Application Analysis of Cabinet Scenario

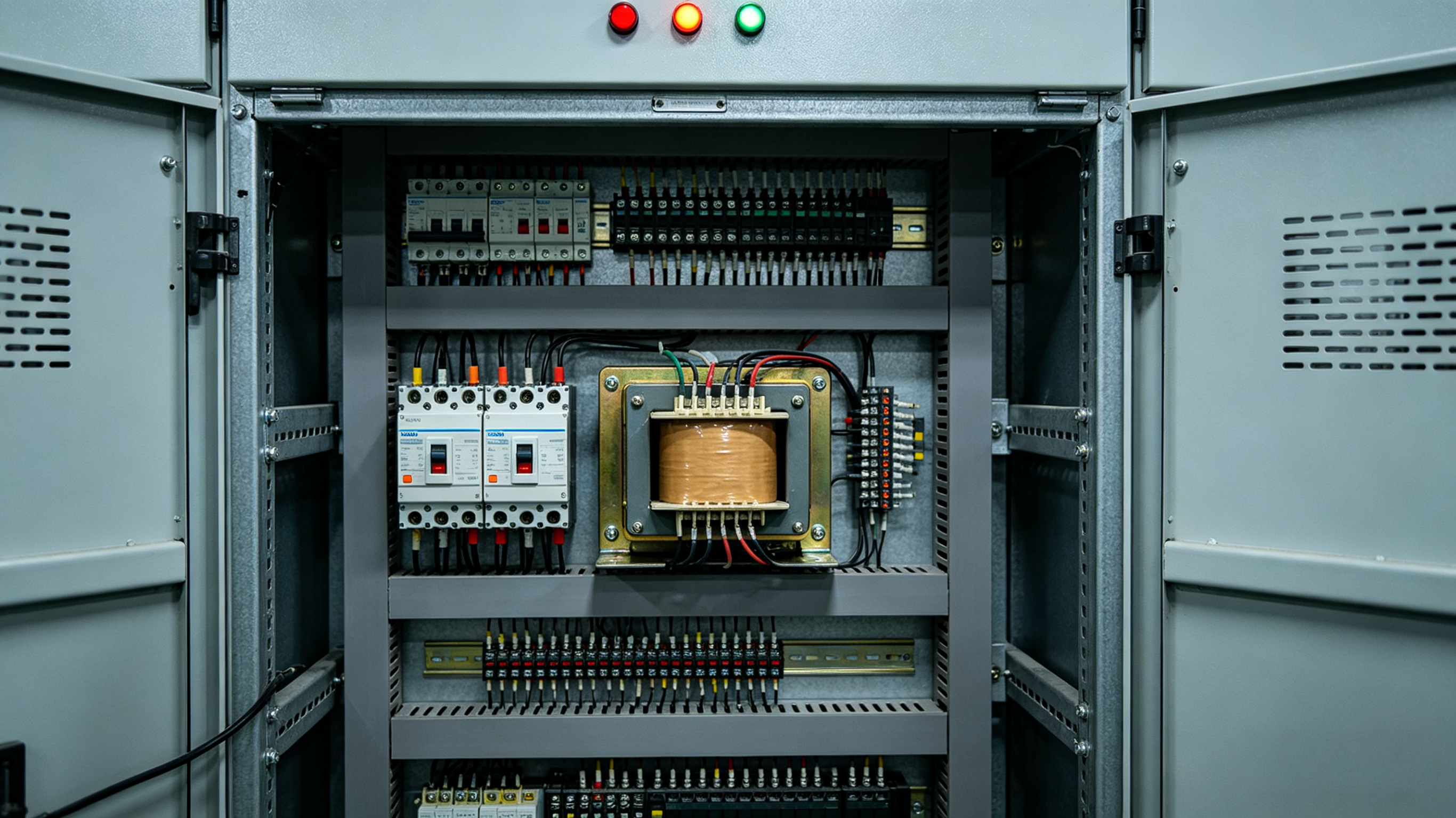

The industrial control cabinet (referred to as the cabinet) is the "command center" of the industrial automation system. It integrates various control components such as PLCs, relays, contactors, indicator lights, sensors, and circuit breakers.

The stable operation of industrial automation is inseparable from the accurate selection of every core component. Although the control transformer is small, it carries the "power safety" of the entire panel. Choosing the right product can avoid fault shutdowns, reduce maintenance costs, and allow your automation system to operate continuously and efficiently.

Linkwell has always been your best partner for industrial panels with professional and reliable products and services. If you have selection questions or customization needs, please feel free to contact us. Professional engineers will provide you with solutions within 2 hours, allowing you to select without worry and use with peace of mind!
