In modern industrial and automation fields, the stable operation of electrical equipment is crucial for ensuring production. Among them, the encapsulated transformer is an indispensable yet often overlooked core component. Have you ever wondered: What is an encapsulated transformer? Why can it operate stably in harsh environments? Today, we will delve into this technology and reveal how to choose the most suitable transformer solution.

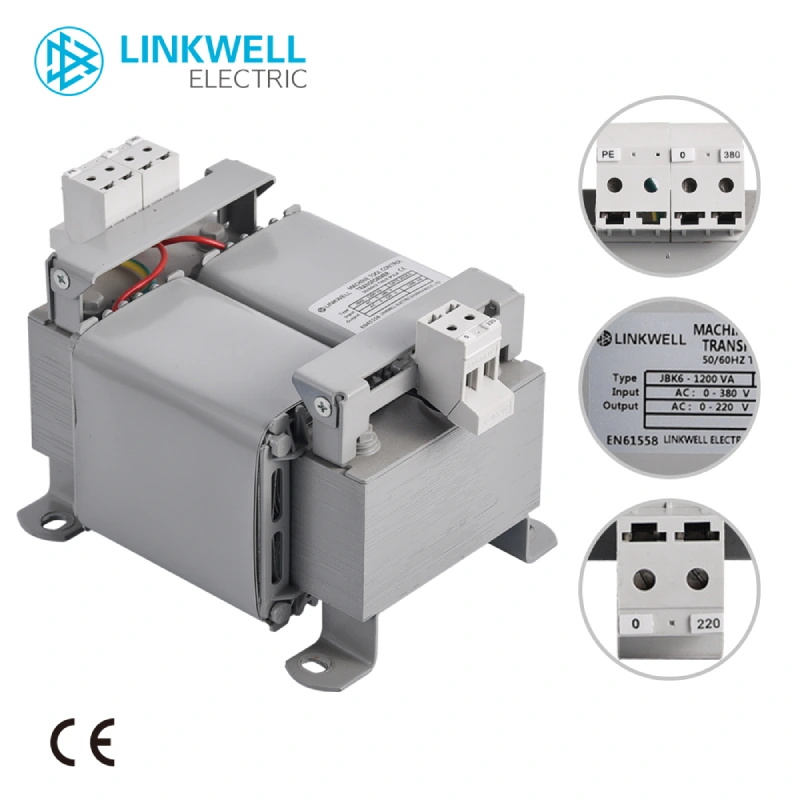

An encapsulated transformer is an electrical device that uses a special protective coating or enclosure to completely seal internal coils and iron cores with materials such as epoxy resin. This effectively isolates dust, moisture, chemical pollutants, and mechanical vibrations. This design not only enhances insulation performance but also significantly reduces operational noise, providing safer and more reliable power conversion for industrial environments.
Dry Insulation: No oil required, eliminating leakage pollution and offering greater environmental safety.
Fire Resistance Advantage: No flammable liquids, making it suitable for indoor and sensitive environments.
Maintenance-Free Design: Reduces downtime and long-term costs.
Wide Applicability: Covers diverse scenarios, from control cabinets to telecommunications base stations.

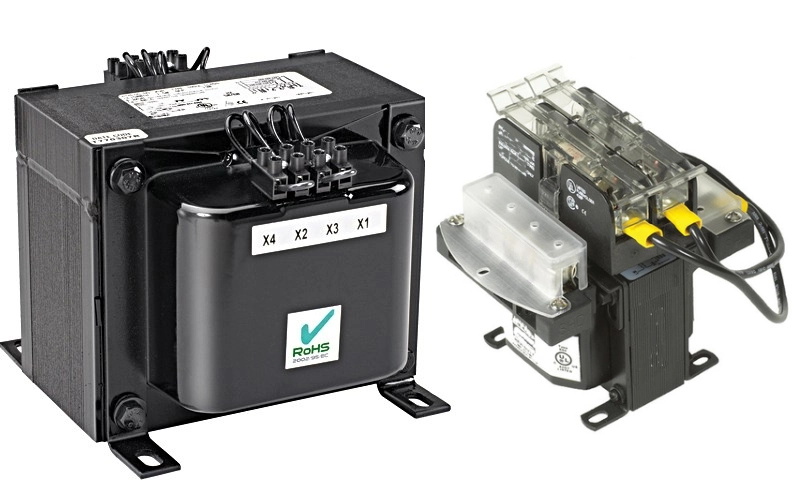

Epoxy resin is the core material of encapsulated transformers, offering advantages far beyond traditional designs:
| Feature | Traditional Transformer | Epoxy-Encapsulated Transformer |
|---|---|---|
| Moisture/Dust Resistance | Requires additional protective housing | Built-in sealing, high IP protection rating |
| Fire Performance | Oil-immersed types have combustion risks | Flame-retardant epoxy resin, complies with UL94 V-0 standard |
| Maintenance Requirements | Regular checks of oil levels and insulation | Essentially maintenance-free |
| Environmental Impact | Potential leakage pollution | Pollution-free, environmentally friendly |
Tip: In highly corrosive environments such as chemical plants or coastal areas, the lifespan of epoxy-encapsulated transformers can be extended by over 30%.

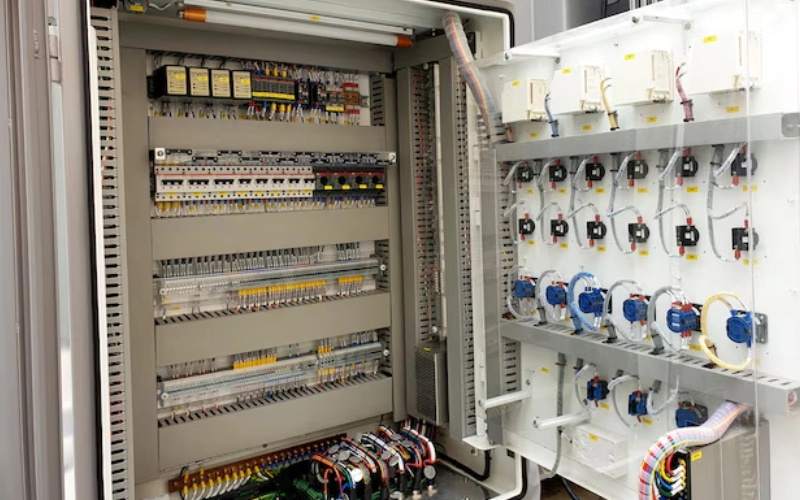

Industrial Control Cabinets
Linkwell encapsulated transformers are widely used in automated production lines to provide stable voltage for PLCs, sensors, and more, withstanding vibrations and dust challenges.
Telecommunications Infrastructure
Transformers in outdoor cabinets must cope with temperature fluctuations and humidity changes. The encapsulated design ensures uninterrupted signal transmission.
New Energy and Energy Storage Systems
In solar inverters and wind power control cabinets, encapsulated transformers enable efficient power conversion and safe isolation.
Medical and Data Centers
The low-noise operation is critical in noise-sensitive scenarios.
Assess Power Requirements
Calculate the maximum load voltage and current, reserving 20% margin for peak demands.
Environmental Adaptability Check
Temperature range: -40°C to 130°C (suitable for Linkwell products)
Protection rating: IP67 level can handle extreme humidity
Certification Standard Verification
Prioritize products with UL, CE, and ISO9001 certifications (e.g., Linkwell's full range of certified products).
Cost-Benefit Analysis
Although the initial investment is higher than traditional transformers, the maintenance-free design and long lifecycle can reduce the total cost of ownership (TCO).
As a globally leading transformer solution provider, Linkwell has become the preferred choice for industrial users due to the following advantages:
Military-Grade Insulation Materials: Flame-retardant epoxy resin casting, lifespan exceeding 20 years.
Fully Automated Production: Ensures product consistency above 98%.
Customized Services: Supports special designs for voltage levels and pin layouts.
Global Certifications: Full certification coverage including UL, CE, RoHS, and GB/T 19212.1.
Case Study: An automotive manufacturing plant reduced control cabinet failure rates by 45% and maintenance costs by 60% after adopting Linkwell encapsulated transformers.
Q1: Can encapsulated transformers be used outdoors?
Yes! IP67-rated encapsulated products can withstand sun exposure, rain, and even salt spray corrosion, making them particularly suitable for telecommunications base stations and wind power projects.
Q2: Do they require regular maintenance?
Basically maintenance-free. Only annual cleaning of surface dust is needed to ensure proper heat dissipation.
Q3: How do they compare economically with traditional oil-immersed transformers?
Over a 10-year cycle, encapsulated transformers can reduce comprehensive costs by approximately 35% due to their maintenance-free and high-efficiency characteristics.
Encapsulated transformers are not just power conversion devices but also the "invisible guardians" of industrial systems. As intelligence and automation accelerate today, choosing products like Linkwell, which offer technological innovation, quality certification, and scenario adaptability, will be a key step for enterprises to enhance competitiveness and achieve sustainable development.
