We rely on electrical equipment every single day, yet cooling for electrical enclosures is often overlooked until failures occur. Heat buildup inside cabinets leads to premature component degradation, shortened service life and permanent equipment damage. Proper electrical enclosure cooling protects sensitive microprocessor-based control systems from performance throttling and setpoint drift. Without adequate thermal management, your systems face elevated risks of fire, condensation and corrosion.
Effective heat management via electrical enclosure cooling safeguards your equipment investment and helps you avoid costly unplanned downtime. Whether you need a simple solution or cutting-edge climate control technology, enclosure cooling keeps your operation running reliably.
Prevent overheating to reduce equipment failures and expensive repair costs
Select passive or active cooling solutions based on heat load and ambient conditions
Routine maintenance including fan and filter cleaning is critical for reliable heat dissipation
Monitor temperature and humidity simultaneously to stop condensation and protect sensitive electronics
Optimise fan layout and airflow paths to boost cooling efficiency and eliminate hotspots
Heat accumulation inside enclosures develops quietly, but the hazards are very real. Excess heat silently damages electronic components. The chart below shows the distribution of common overheating-related failure causes:

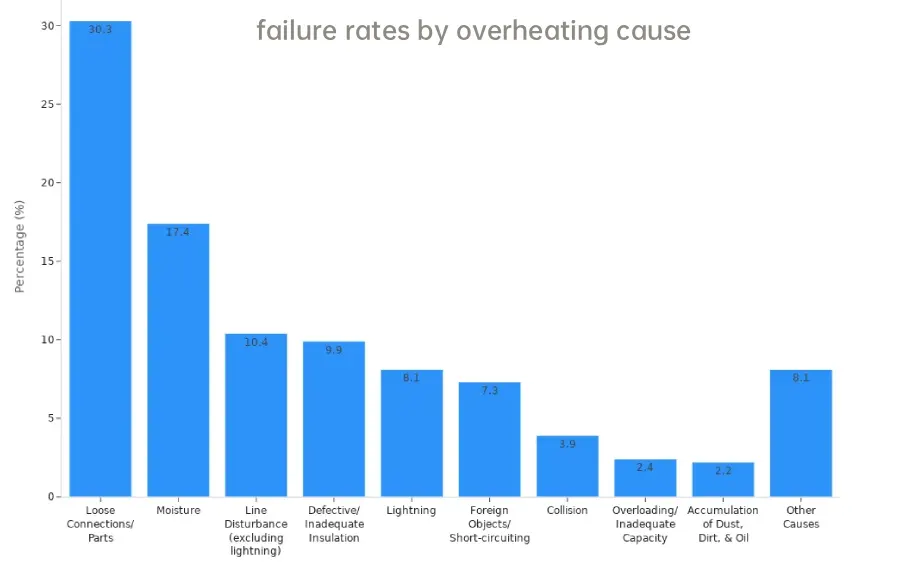

Cause of Overheating | Percentage |
|---|---|
Loose Connections / Components | 30.3% |
Moisture | 17.4% |
Line Disturbance (Excluding Lightning) | 10.4% |
Defective / Inadequate Insulation | 9.9% |
Lightning | 8.1% |
Foreign Objects / Short-circuiting | 7.3% |
Collision / Physical Impact | 3.9% |
Overloading / Insufficient Capacity | 2.4% |
Accumulation of Dust, Dirt and Oil | 2.2% |
Other Causes | 8.1% |
Loose connections and moisture are the top two triggers for overheating failures. Neglecting thermal control frequently results in unexpected production stops and substantial repair expenses.
Thermal management is far more than simply keeping hardware cool — it protects your assets and ensures workplace safety. Here is what can happen without proper enclosure temperature regulation:
Item | Description |
|---|---|
Failure Risk | Overheating and condensation trigger severe component failures, raising maintenance costs and safety hazards |
Cost Comparison | Investing in enclosure cooling systems is usually cheaper than replacing heat-damaged electrical assemblies |
Component Lifespan | Every 10°C rise above rated temperature can cut the service life of electrical components in half |
With reliable cooling in place, you can:
✅ Prevent unplanned shutdowns and maintain continuous production
✅ Stabilise equipment operation and reduce risks of fire and electrical faults
Heat inside cabinets does not only come from hot outdoor air. Many electrical components generate heat during normal operation:
Variable Frequency Drives (VFDs): Approximately 3%–5% of rated power dissipates as heat
Power supplies & transformers: Heat generated from core and copper losses
PLCs and CPUs: Chip zones easily form concentrated hotspots
Relays, contactors and terminal blocks: Heat produced by contact resistance
External heat sources also worsen internal temperature rise:
Solar radiation heating outdoor enclosures under direct sunlight
High ambient air temperature
Radiant heat transferred from nearby equipment such as welders or furnaces
Evaluate both internal and external heat loads to design a suitable cooling strategy.
Heat generation is only one side of the equation. Multiple variables determine how effectively an enclosure dissipates heat:
Heat load calculation: The foundation to quantify total heat output
Heat transfer principles: Conduction, convection and radiation govern how heat moves away from components
Enclosure material: Metal housings such as aluminium and steel conduct heat faster than plastic enclosures
Ambient conditions: Dust and humidity degrade cooling performance over time
Key takeaway: Component lifespan halves with every 10°C temperature increase. Thermal management directly impacts your long-term operational costs.
Electrical enclosure cooling falls into two core categories: passive and active cooling. Each option has unique advantages, costs and suitable application scenarios.
Passive cooling relies on natural air circulation without power or moving parts. It works on the principle that hot air rises while cooler air sinks. It is ideal for low-heat cabinets where ambient temperature is considerably lower than internal cabinet temperature.
✅ Advantages: Zero power consumption, silent operation, minimal maintenance; only requires properly positioned louvres or ventilation openings
❌ Limitations: Low heat dissipation capacity, unsuitable for high-power cabinets or hot surrounding environments
Comparison: Natural Convection vs Forced Air Cooling
Cooling Mode | Required ΔT | Max Heat Capacity | Initial Cost | Maintenance |
|---|---|---|---|---|
Natural Convection | ΔT > 20°C | Very Low (< 200W) | None | Minimal |
Forced Fan Cooling | ΔT > 5°C | High (Up to 2000W+) | Low | Moderate (Filter cleaning) |
When natural convection cannot meet cooling demands, active cooling systems use powered components to extract heat. Three mainstream solutions are filter fan units, enclosure air conditioners and heat exchangers:
Filter Fan Units Create forced airflow by drawing in filtered cool air and exhausting hot air. Best for clean environments where outside air is cooler than cabinet air. Cost-effective and capable of handling large heat loads; requires power supply and regular filter cleaning.
Enclosure Air Conditioners The only solution that can maintain internal temperature below ambient temperature. Compressor and refrigerant systems deliver powerful cooling. Downsides include high upfront investment, higher energy consumption and complex maintenance.
Heat Exchangers Separate internal and external air streams, transferring heat without cross-contamination. Perfect for dusty, outdoor or corrosive environments. Requires a sufficient temperature difference for efficient operation and offers medium cooling capacity.
Cooling Solution | Typical Application | Advantages | Limitations |
|---|---|---|---|
Filter Fan Unit | ΔT > 5°C, clean ambient air | Low cost, high heat removal | Requires power, depends on clean incoming air |
Enclosure Air Conditioner | Internal temperature must stay below ambient | Strong cooling, independent of outdoor temperature | High cost, complex maintenance, high power use |
Heat Exchanger | Outdoor / contaminated environments | Closed-loop design, blocks pollutants | Needs sufficient ΔT, moderate cooling output |
⚠️ Important Note: If the surrounding air is already hot, fans will only circulate hot air and cannot reduce cabinet temperature. In these cases, closed-loop heat exchangers or enclosure air conditioning are recommended.
Passive cooling: Lowest setup and running cost, only ventilation structure modifications needed
Filter fan units: Roughly one-tenth the price of enclosure air conditioners; budget-friendly with periodic filter maintenance
Enclosure air conditioners: Highest capital, energy and maintenance cost
Heat exchangers: Mid-range cost between fans and AC units; protects electronics from dust to cut repair expenses
Housing design and material selection are just as critical as the cooling equipment:
Aluminium enclosures conduct heat rapidly and help spread hotspots; steel retains heat longer and demands carefully planned airflow
Wall thickness: Thicker walls distribute heat evenly but slow thermal transfer; thin walls respond faster to temperature changes and need precise airflow planning
Vent placement: Poorly positioned vents trap hot air and drastically reduce cooling efficiency
Smart material selection and enclosure design maximise cooling system performance and service life.
Industrial enclosure fans move targeted airflow inside cabinets to remove component heat, built to meet industrial protection ratings. Different fan types serve distinct purposes:
Fan Type | Features | Function |
|---|---|---|
Tube Axial Fan | Propeller design with venturi | Exhaust hot air from hotspot zones |
Vane Axial Fan | Equipped with guide vanes for straight airflow | Improve airflow delivery efficiency |
Blower | Generates high static pressure | Push cool air into cabinets with high airflow resistance |
Fan Tray | Integrated array of small axial fans | Dense cabinets with multiple concentrated hotspots |
Cooling Air Conditioner Unit | Refrigerant-based heat transfer | Achieve sub-ambient cooling and anti-condensation control |

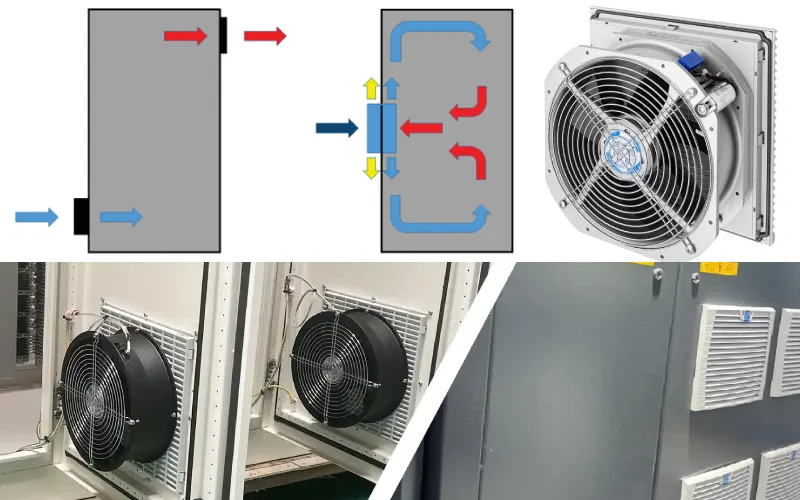

Layout tip: Mount intake fans at the lower section and exhaust fans at the top. Fan trays work well for crowded cabinets with multiple hotspots.
Three key metrics guide fan selection:
CFM (Cubic Feet per Minute): Air volume moved by the fan. Higher CFM equals greater cooling capacity
RPM (Revolutions Per Minute): Rotational speed. Faster RPM delivers more airflow but increases noise
Airflow Path: The route air travels through the cabinet, critical for eliminating hotspots
Understanding these parameters ensures you match fan capacity to your heat load and avoid under-sizing.

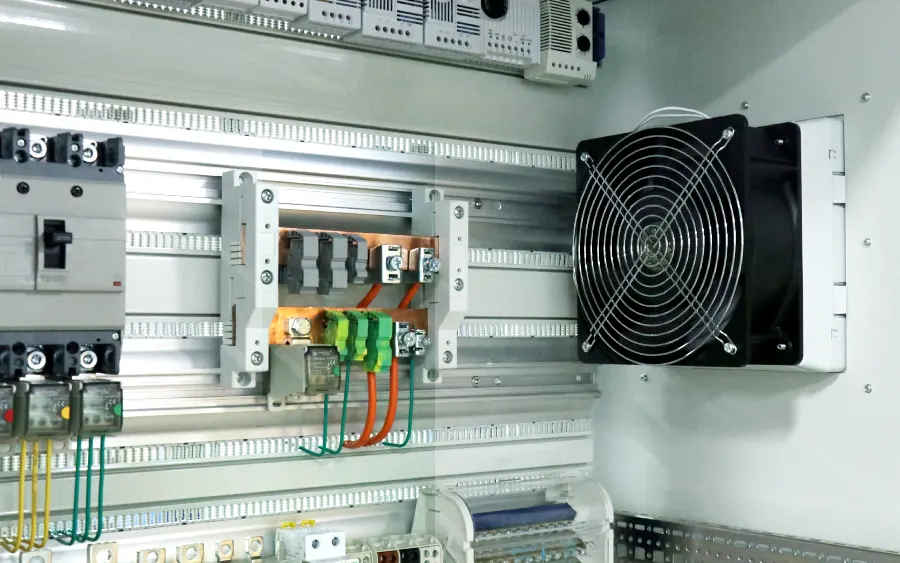

Filter fans are widely deployed on industrial control panels. Built-in filters block dust and debris from entering cabinets and prevent contamination on PCBs and heat sinks.
Sealed enclosure + fan assembly: Forced exhaust to remove trapped hot air
Filter assembly: Stop dust buildup on electronic surfaces
Positive pressure system: Supply filtered clean air to keep dust out through enclosure gaps
Continuous directional airflow: Create a smooth intake-to-exhaust path for stable heat removal
Combining directional airflow with filtration delivers both cooling and dust protection, lowering component failure rates.
Fans are the core of forced convection cooling:
Draw in cool fresh air and actively expel hot air
Prevent localised heat accumulation and extend component lifespan
Allow equipment to operate at rated performance under elevated ambient temperatures
Fans offer the best cost-performance ratio for suitable conditions. They work well for cabinets with moderate heat generation, clean ambient air and an outside temperature lower than cabinet internal temperature. Common applications include automation panels, renewable energy cabinets, telecom enclosures and medical control equipment.
✅ Indicators for fan cooling:
Well-ventilated installation location
Budget-conscious thermal management requirements
A stable temperature difference between inside and outside the cabinet
Optimal fan performance relies on proper positioning and regular filter cleaning.
Many users assume cooling is the only requirement. Complete climate control regulates both temperature and humidity. Condensation-induced corrosion and short circuits can permanently damage sensitive electronics.
General target temperature for cabinet climate control: 35°C (95°F)
Most electrical components tolerate up to 60°C, while precision devices such as VFDs are recommended to stay below 40°C (104°F)
Humidity control is essential to avoid condensation and circuit corrosion
Always set cooling parameters according to the datasheet ratings of your installed components.
Low temperatures and rapid temperature swings create condensation hazards just like overheating:
Degraded insulation and component failure
Increased risk of arc faults and fire hazards
Difficult cold startup for electronic hardware
Enclosure heaters maintain internal temperature above the dew point to stop condensation from forming and support reliable startup in cold environments.
Reminder: Climate control means both cooling AND anti-condensation heating. Bidirectional temperature management delivers full protection.
Even high-performance fans underperform with poor layout that creates airflow short-circuits and trapped hotspots.
Layout Scheme | Description |
|---|---|
Bottom Air Intake | Pull in cooler air from the lower cabinet zone |
Top Air Exhaust | Remove rising hot air naturally |
Offset intake/exhaust heights | Maximize airflow travel distance and reduce local hotspots |
Positive Pressure System | Supply filtered clean air to repel dust ingress |
Negative Pressure System | Extract hot air but risks drawing unfiltered dust through gaps |
Mixed Flow System | Combine positive and negative pressure for balanced cooling and cleanliness |
The classic best layout: bottom intake + top exhaust. Positive filtered air supply is preferred for dusty working conditions.
Hotspots are a leading cause of sudden equipment failure:
Use thermal imaging cameras to scan for temperature gradients
Install temperature and humidity sensors with over-temperature alarms
Space components apart to maintain clear air passages
Test cabinet temperatures under peak load conditions (minimum 40% rated load)
Prioritise inspection of loose connections, a very common heat source
Early hotspot identification stops minor thermal issues from escalating into catastrophic failures.
Smart thermal control systems adjust cooling output on demand, avoiding continuous full-speed fan operation that creates excess noise, energy waste and mechanical wear.
Type | Function |
|---|---|
Speed Controller | Activate and adjust fan speed only when cooling is required; reduce power consumption and fan wear |
Thermostat | Stabilise cabinet temperature at your set target |
Accessories | Filters, guide vanes and mounting brackets to optimise airflow |
EC speed controllers and SCR regulators support soft start and low-speed quiet operation to reduce acoustic noise.
Advanced systems use PWM speed regulation and closed-loop thermal control to modulate fan speed dynamically based on real-time heat load. Some controllers integrate tachometer feedback to monitor fan running status. Alerts trigger immediately if a fan stalls before overheating occurs. Benefits of automatic fan control: lower energy bills, reduced mechanical wear and early fault warnings.
Fan noise, vibration and clogged filters are the most frequent faults:
Symptom | Root Cause | Recommended Action |
|---|---|---|
Blade noise / imbalance | Dust buildup, loose or deformed blades | Clean, re-tighten or replace fan blades |
Grinding bearing noise | Dry bearings or dust contamination | Clean assembly and lubricate bearings |
Unit vibration | Loose mounting brackets or misalignment | Secure mounting hardware and realign the fan |
If you observe overheating or component malfunctions:
Frequent component failure / short service life: Add ventilation fans or louvres
Persistently excessive heat load: Upsize the enclosure or install a heat exchanger
Concentrated heat-generating devices: Separate high-power components
Visible condensation or corrosion: Inspect gaskets and drain holes; add humidity-controlled heaters when humidity exceeds 65%
Outdoor cabinets: Choose light-coloured enclosures and solar shields to block radiant heat
Golden airflow rule: Diagonal flow design — intake at one bottom corner, exhaust at the opposite top corner for the longest airflow path
Proactive maintenance prevents small defects from developing into costly breakdowns.
Calculate total heat load from component datasheets
Collect site environmental data including maximum ambient temperature and humidity
Verify internal cabinet temperature stays within safe operating range after installation
Reference NEMA enclosure standards to select the correct ingress protection rating
Use thermal load calculators to quantify required cooling capacity
Review cooling product catalogues and select the matching solution
Assess special requirements for hazardous or washdown environments
Tip: Small calculation errors during specification can lead to severe overheating after long-term operation.
IP rating: Indoor, outdoor and corrosive environments require different protection levels (IP65 vs IP67)
Housing materials: Carbon steel, stainless steel, aluminium and fibreglass polyester each offer unique corrosion resistance
Certifications: UL, CSA or Intertek certified assemblies for compliance requirements
Special industries: Food & beverage / pharmaceutical applications often require NEMA 4X washdown-rated enclosures
Hazardous locations: Select NEMA 7, 8, 9 or 10 rated enclosures and comply with NEC standards
Correct ratings and enclosure materials allow your cooling system to operate reliably.
Cooling systems are not “install-and-forget”. Regular maintenance is essential for stable thermal performance.
Monthly fan inspection: Check for abnormal noise, vibration or wear
Filter maintenance: Clean or replace filters every six months under normal conditions; shorten intervals for dusty environments
Keep filters unobstructed to maintain design airflow
Clear debris and blockages around vents and fan openings
Keep fan blades clean to avoid imbalance and excess noise
Real-time sensors and predictive maintenance help catch faults before downtime happens:
Predictive maintenance: AI-based anomaly detection reduces unplanned interruptions
Real-time monitoring: Continuous temperature, humidity and airflow tracking extends component lifespan
Intelligent cooling optimisation: Variable-speed controls reduce air conditioning power consumption
Early fault alerts: Cut emergency service visits and maintenance expenditure
Upgrade with smart sensors and variable-speed fan controls to build a proactive thermal protection system.
Effective enclosure thermal management relies on these principles:
Prevent unexpected failures by selecting cooling solutions wisely
Match passive cooling, fan systems, heat exchangers or air conditioners to your application
Follow UL/cUL safety standards for all selected hardware
Implement complete climate control for both temperature and condensation protection
Q: How do I select the right cooling fan for my enclosure?
A: Calculate total heat load in Watts or BTU, define target temperature difference ΔT, compute required CFM airflow, and add extra margin to account for airflow resistance and component ageing.
Q: Can fans be used together with heat exchangers?
A: Yes. Fans circulate air inside the cabinet while heat exchangers transfer heat without cross-contaminating internal and external air. Combined setups work well in dusty or high-temperature environments to extend component life.
Q: What maintenance schedule delivers optimal cooling efficiency?
A: Inspect fans monthly. Clean or replace filters twice per year, more frequently in dusty locations. Check airflow paths and lubricate bearings as required.
Q: How often should enclosure fan filters be cleaned?
A: Perform visual checks monthly. Increase cleaning frequency for dusty or oily environments to avoid restricted airflow and overheating.
Q: Can ordinary household fans be used for electrical cabinet ventilation?
A: No. Industrial enclosure fans are engineered for high temperature, dust and vibration resistance, unlike domestic fans which lack the required protection ratings and reliability.
Q: What is the best way to stop condensation inside electrical enclosures?
A: Install enclosure heaters or integrated climate control units. Maintain low relative humidity and continuous temperature monitoring to keep internal temperature above the dew point.
Q: Are enclosure cooling fans noisy?
A: Standard industrial enclosure fans run quietly under normal conditions. Excess noise usually points to dust accumulation, loose blades or worn bearings. Routine cleaning and maintenance keep noise levels low.
