Do you want your cabinet air conditioner to deliver the best possible performance?

The installation method has a huge impact on cooling efficiency and equipment service life. Industry research and field application experience both show that the installation approach for cabinet air conditioners directly affects heat dissipation, dust protection, and even the ease of routine maintenance.

Many people focus on cooling capacity and model number when selecting a cabinet air conditioner. However, in real projects, the installation method often has a greater effect on the final result than the model itself. The same air conditioner, when installed in different positions, can produce significantly different airflow paths, heat dissipation efficiency, and long-term maintenance experiences.

So, side-mounted, semi-flush, or top-mounted – which one should you choose? This article draws on Linkwell's years of professional expertise to give you a detailed breakdown.

I. Why Does Installation Method Matter So Much?

A cabinet air conditioner is not a "buy and bolt on" standard part. It is an industrial thermal management system that must be precisely matched to the cabinet structure and site conditions.

The installation method determines three key factors:

• Airflow path: How cold air enters the cabinet, how it covers heat-generating areas, and how it returns – this directly determines cooling efficiency. One major advantage of side-mounted units is that the airflow path is easier to control.

• Space utilization: Is there enough clearance around the cabinet? Are devices tightly packed? These factors affect which installation method you can choose.

• Maintenance convenience: How often do filters need changing? Do you need to disassemble the top structure for inspection? The installation method dictates the difficulty of maintenance work.

Choosing the right installation position is more important than simply selecting a higher cooling capacity.

II. Detailed Breakdown of the Three Main Installation Methods

1. Side-Mounted – The Classic Choice, Easy to Maintain

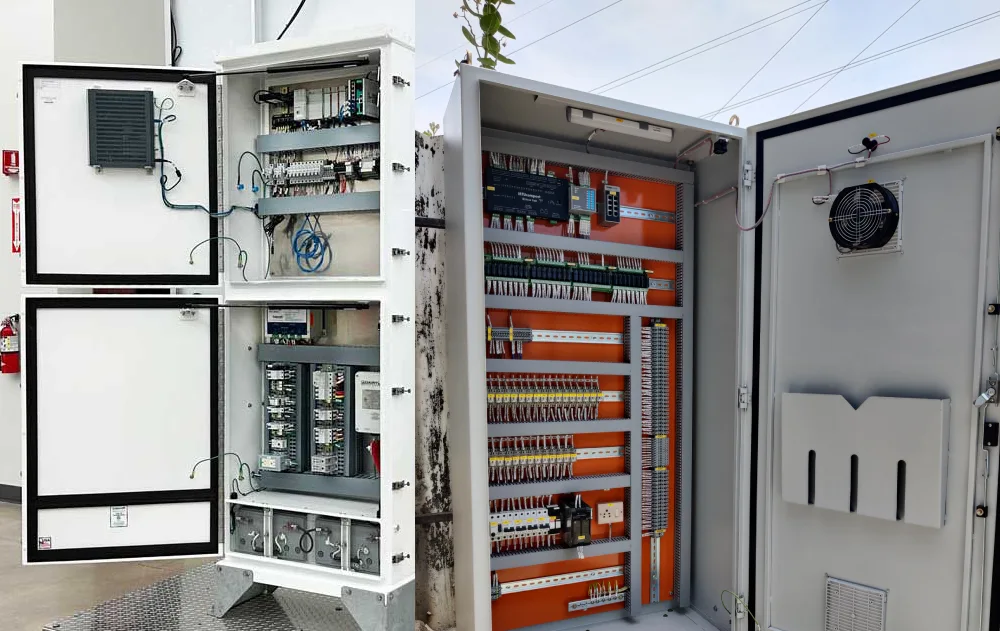

Side-mounted installation is the most widely used method in industrial control cabinets. The air conditioner is installed on the side of the cabinet, with cold air delivered into the cabinet from below or from the front, then circulated back through a return air path.

Advantages:

• Controllable airflow path: Especially for vertically arranged control cabinets containing VFDs, PLCs, power supply modules, etc., cold air can naturally flow from bottom to top, more effectively covering the main heat sources.

• Easy maintenance: On-site inspections and servicing do not require removing top structures, and there is generally ample working space.

• Good sealing: Side-mounted configurations can achieve excellent dust and moisture protection.

Best suited for: Open spaces, applications requiring frequent maintenance, and standard vertical control cabinets.

Note: Side-mounted units occupy side clearance. If devices are tightly packed or cabinets are placed close together, heat dissipation space around the air conditioner may be restricted.

2. Semi-Flush Mounted – Space-Saving, Professional Appearance

In a semi-flush installation, part of the air conditioner is embedded inside the cabinet, leaving only the inlet/outlet grilles and control panel exposed. Linkwell's LK-AJ series is a typical semi-flush side-mounted product.

Advantages:

• Reduced external protrusion: The semi-flush design minimizes the space occupied outside the cabinet, resulting in a cleaner, more professional appearance.

• Saves aisle space: Particularly suitable for narrow scenarios where cabinets are close to walls or other equipment.

• High protection rating: Linkwell's semi-flush products achieve up to IP55 protection.

Best suited for: Space-constrained, narrow areas, and indoor precision distribution cabinets where aesthetics matter.

Note: Installation is relatively more complex, requiring a cut-out to be prepared on the cabinet.

3. Top-Mounted – Maximum Space Savings, Ideal for Dense Layouts

When there is no side clearance available, top-mounted is the ideal solution. The air conditioner is installed on top of the cabinet, occupying zero side space.

Advantages:

• Zero side clearance requirement: Suitable for any scenario with limited space, narrow production lines, or electrical cabinets arranged in rows.

• Leverages natural convection: Cold air blows downward, utilizing the principle that hot air rises, which enhances natural convection and improves heat dissipation efficiency.

• Protection from mechanical damage: Installed on top, the unit is less prone to impacts and mechanical damage during continuous production.

Linkwell's LK-ANT series is a top-mounted product, specially designed for cabinets with restricted side space.

Best suited for: Cabinets with no side clearance, factory floors with densely packed equipment, and large power control cabinets.

Note: Top-mounted units require working at height for maintenance, and filter changes are somewhat less convenient. Proper condensate management is also important during installation.

III. How to Choose? A Quick Comparison Table

Quick decision guide:

• Ample space around the cabinet, frequent maintenance required → Choose side-mounted.

• Limited space, prefer clean appearance → Choose semi-flush.

• No side installation space, densely packed equipment → Choose top-mounted.

IV. Installation Precautions

Regardless of which installation method you choose, pay attention to the following points:

1. Check load-bearing capacity: Before installation, verify that the cabinet panel has sufficient strength to support the unit's weight. Preferably install on a fixed side panel rather than a movable door.

2. Ensure a tight seal: After cutting the opening, remove all burrs. When embedding the unit, tighten the fixing screws evenly to ensure a gap-free seal with the cabinet wall. A sealed design prevents dust and moisture ingress.

3. Plan for drainage: The drain line should have a slope of at least 3°.

4. Avoid airflow short-circuiting: Ensure adequate spacing between the air inlet and outlet.

5. Always consult the manufacturer's instructions: Proper installation helps keep your warranty valid.

V. Linkwell: Helping You Find the Best Installation Solution

Linkwell offers cabinet air conditioner products in various installation styles to meet diverse requirements:

• LK-AJ Series: Semi-flush side-mounted, 1000–2000W cooling capacity, IP55 protection, high-precision temperature control (≤ ±0.5°C).

• LK-ANT Series: Top-mounted, 1000–1500W cooling capacity, zero side clearance requirement.

• Supports door-mounted, side-mounted, top-mounted, and other installation options, with customization available based on customer needs.

Whether you are in telecom base stations, battery energy storage systems, industrial automation, or data centers, Linkwell provides reliable cabinet air conditioning solutions.

Not sure which installation method fits your cabinet? Linkwell's expert team can offer professional guidance, recommending the optimal solution based on your cabinet dimensions, site space, and thermal load requirements.
