Views: 0 Author: Site Editor Publish Time: 2026-10-08 Origin: Site
Many electrical failures erupt suddenly without warning, and corrosion of earthing terminals is one of the most common "hidden hazards". Humidity, condensation and diurnal temperature fluctuations inside the cabinet jointly create an ideal environment for corrosion. When humidity rises or leakage occurs, metal components start to oxidize. Combined with accumulated dust and contaminants, the corrosion rate accelerates further.
Proper cooling and ventilation serve as the core measure to ensure stable operation of electrical control cabinets. This article analyzes the causes of earthing terminal corrosion, and illustrates how temperature control solutions for electrical cabinets can mitigate corrosion risks from the source, reducing hazards including equipment shutdown, electric shock and fire.

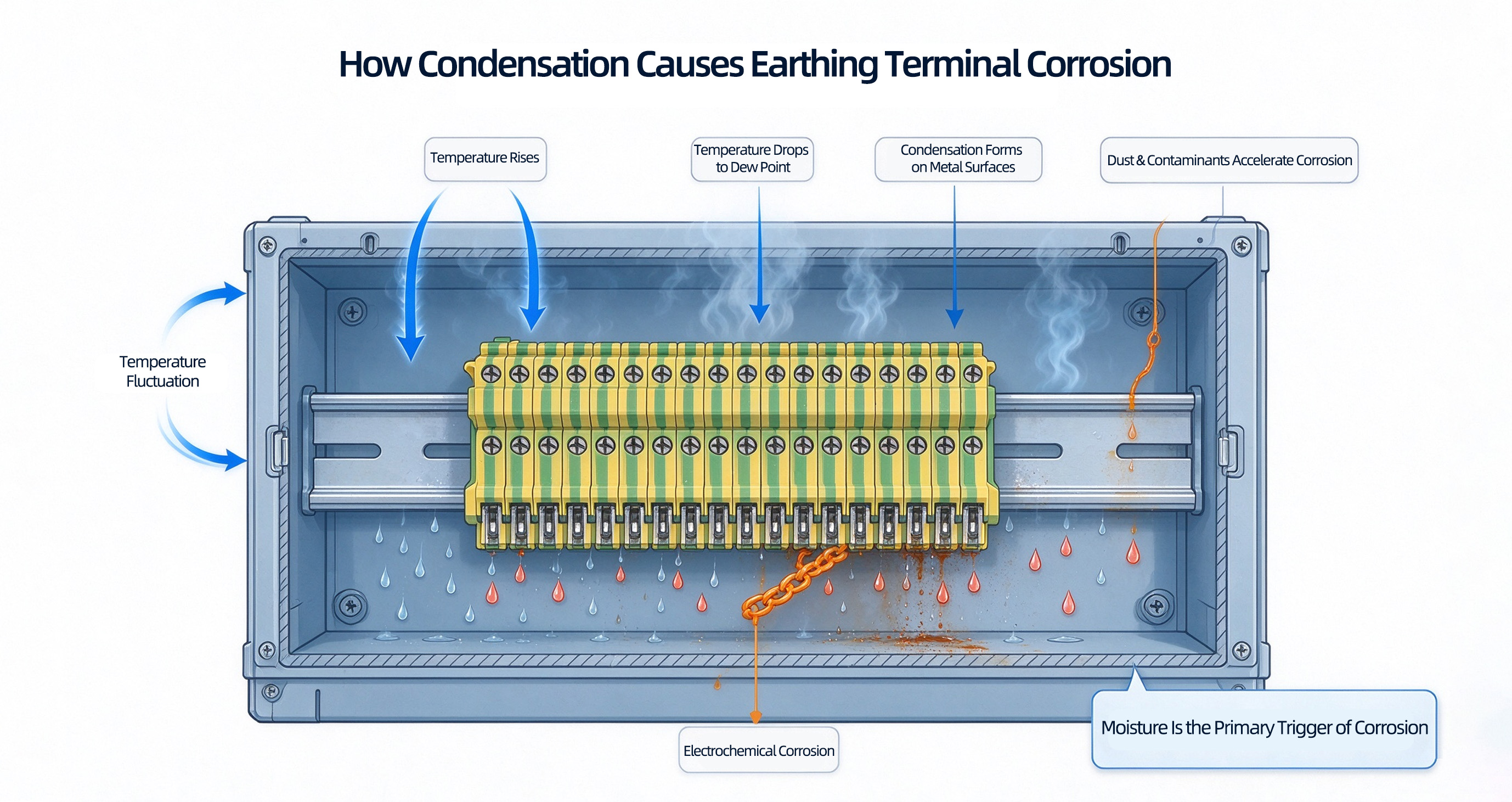

Moisture can enter control cabinets in the form of water vapor or liquid water, both of which carry corrosion risks. When ambient humidity rises, the air inside the cabinet can hold more water vapor. Once the internal cabinet temperature drops below the dew point, water droplets will form on metal surfaces and directly initiate oxidative corrosion of metals.
Dust and contaminants adhere to wet metal surfaces to form conductive media, further accelerating electrochemical corrosion. Condensation easily erodes critical conductive components such as earthing terminals and copper busbars in coastal areas, outdoor sites, basements and humid factory workshops.
Day-night temperature differences and weather changes cause repeated rises and falls of internal cabinet temperature. When equipment shuts down at night and the environment cools, the cabinet temperature drops rapidly to the dew point, resulting in condensation on metal parts. The higher the ambient humidity, the higher the dew point temperature, and the more frequent condensation occurs.
Water vapor continuously accumulates around earthing terminals, and corrosion spreads gradually. To control corrosion, temperature and humidity must be managed simultaneously instead of merely focusing on cooling.
Many operation and maintenance personnel tend to underestimate slight rust on terminal surfaces, yet risks brought by corrosion escalate progressively:
Corroded earthing terminals increase contact resistance of electrical connections, which may cause overheating and even short circuits;
Power distribution panel failures lead to unplanned shutdowns, soaring maintenance costs and production line downtime losses;
In severe cases, leakage and electric shock hazards may occur, or even electrical fires, resulting in major safety accidents.
The core goal of temperature and humidity control is to eliminate condensation inside cabinets. The following solutions can be used individually or in combination:
Cabinet heaters: Raise the baseline internal temperature to prevent condensation on cold metal surfaces, suitable for low-temperature scenarios with large diurnal temperature variations.
Dehumidifiers: Directly remove water vapor from air, delivering outstanding performance in high-humidity environments.
Desiccants: Passive moisture absorption solution for small cabinets without power supply; regular replacement is required.
Ventilation & heat dissipation systems: Boost air circulation to discharge accumulated moisture.
Purified air exchange systems: Replace humid air inside cabinets with dry air via sensors or timers.
Industry Tip: For every 10°C rise in internal equipment temperature, the reliability of electronic components is halved. Temperature control and ventilation systems essentially protect your equipment investment.

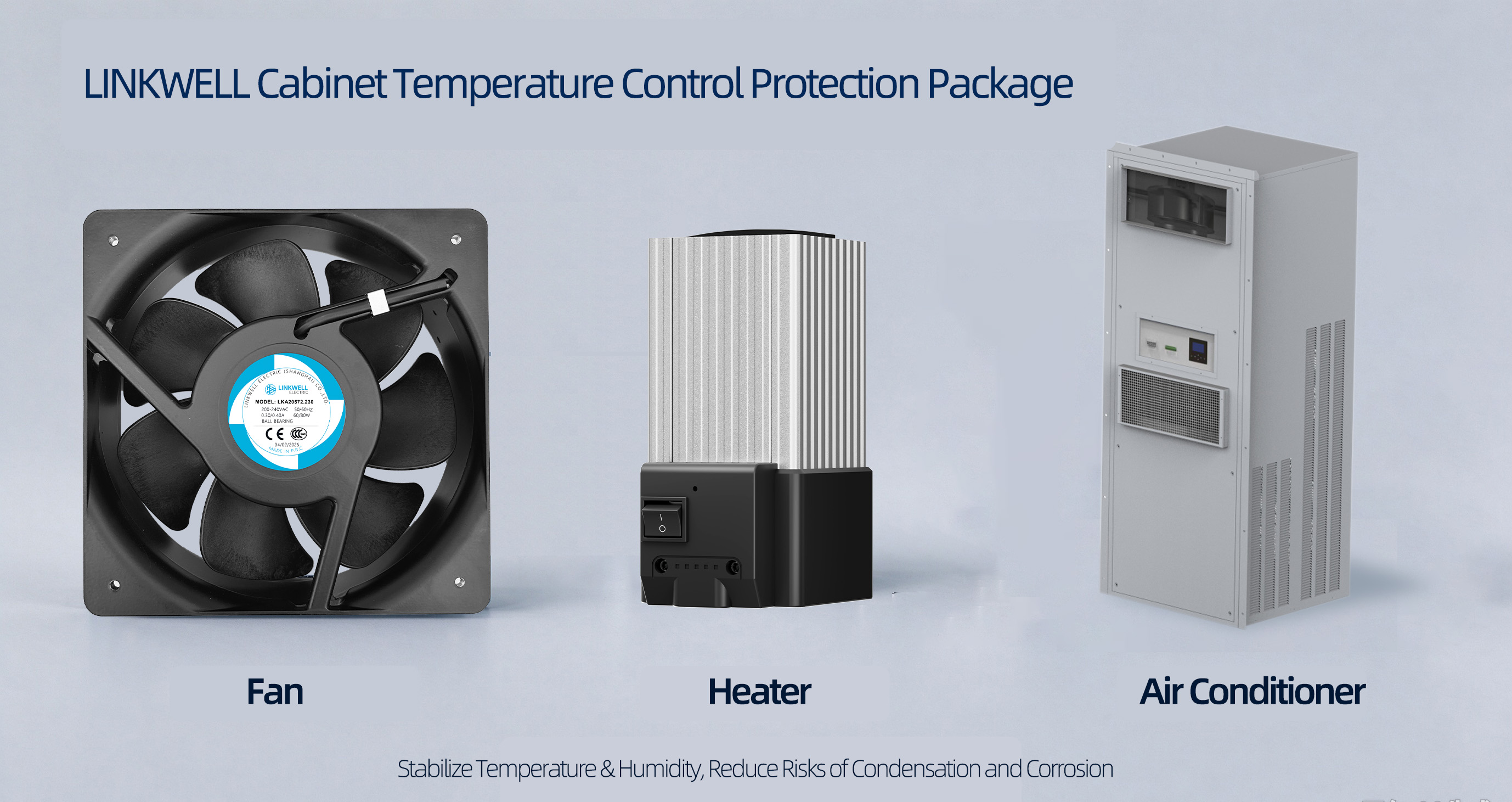

Linkwell cabinet ventilation fans and cabinet heaters create a stable anti-corrosion environment for control cabinets.
Cabinet Ventilation Fans: Efficiently circulate air to keep cabinets dry. Available in multiple sizes and voltages with IP65/IP68 high protection ratings to adapt to harsh working conditions. They can be paired with IoT sensors to predict faults in advance and reduce unexpected downtime. Energy-saving EC fans cut energy consumption by 40%~60%.
Cabinet PTC Heaters: Heat up rapidly to suppress condensation before it forms. Support external thermostats for intelligent temperature control and energy saving, stabilizing internal cabinet temperature and protecting electrical components. The products are certified with UL, CE, ISO9001 and RoHS, featuring a stable service life of over 10,000 hours and multiple innovative patents.
✅ Product Operation & Maintenance Guidelines
Install fans at the lower part of the cabinet for cold air intake and upper part for hot air exhaust.
Keep the area around fans clean; equip filters/protective meshes and clean or replace filters regularly to prevent blockage by dust buildup.
Select products with high IP protection ratings for harsh working conditions.
Pair heaters with temperature/humidity controllers for on-demand start-stop to save power.
For stringent working conditions such as high temperature, high humidity and outdoor environments, cabinet air conditioners realize high-precision control over the internal cabinet microclimate, integrating cooling, heating, humidity regulation and thermal insulation.
Cooling: Remove heat generated by components and maintain a safe temperature range.
Heating: Prevent component damage under low temperatures.
Humidity Control: Stabilize humidity to maximally inhibit condensation and corrosion.
Ventilation & Thermal Insulation: Reduce heat accumulation and isolate external environmental interference.
Intelligent sensors and thermostats monitor conditions in real time and automatically adjust the cabinet microenvironment.
Accurately calculate the internal heat load of the cabinet.
Evaluate on-site conditions: humidity, dust, solar exposure.
Plan rational installation positions to guarantee air circulation.
Choose equipment with high IP protection ratings for outdoor/corrosive environments.
Clean filters regularly and inspect for leakage.
Seal all cable conduit openings and adopt high-quality sealing gaskets to block moisture, dust and contaminants from entering cabinets, avoiding short circuits and meeting industry safety standards.
For outdoor, coastal and chemical scenarios, NEMA 4 rated enclosures can be selected to resist rain, snow, salt spray and corrosive chemicals. Linkwell outdoor cabinets adopt high-strength engineering plastic, which delivers stronger corrosion resistance than traditional metal cabinets, suitable for long-term outdoor service in humid, salt-laden and chemical environments.
O&M Reminder: Inspect gaskets and sealing components regularly; replace them promptly once cracking, aging or wear occurs.
Add auxiliary protection measures inside cabinets: desiccants absorb water vapor; dehumidifiers continuously control humidity; VCI vapor phase rust-preventive powder and films form a protective layer on metal surfaces without affecting electrical performance, inhibiting electrochemical rusting.
Insulating grease can also be applied to connectors to seal gaps, block moisture, build an anti-oxidation barrier and reduce risks of electrical faults caused by rust.
Note: Desiccants are passive moisture-absorbing materials. Once saturated, they may release water vapor reversely, so regular replacement and continuous cabinet humidity monitoring are required.

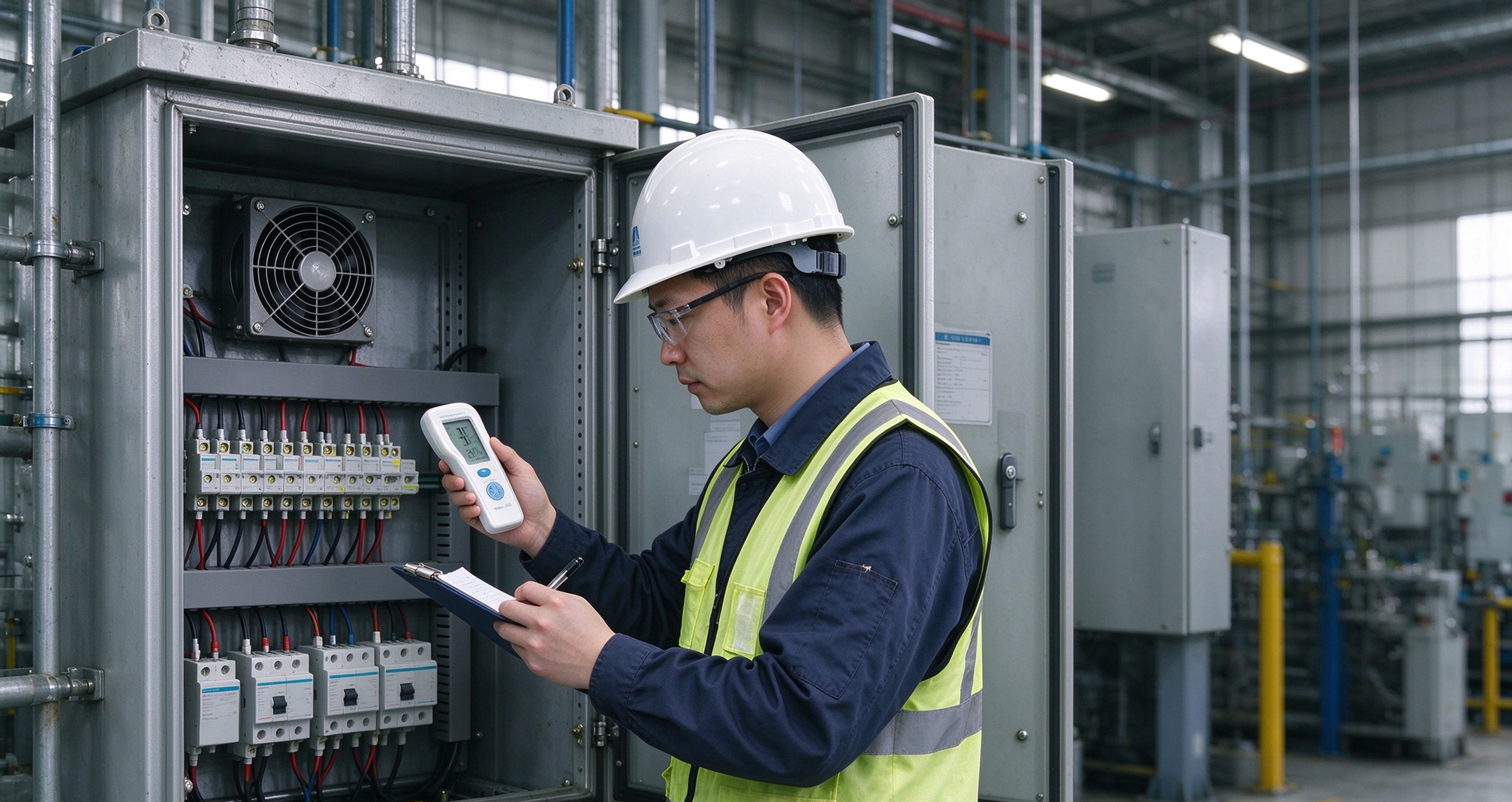

Carry out regular inspections of control cabinets, focusing on signs of corrosion, loose wiring and damaged coatings. Clean accumulated dust inside cabinets in a timely manner to reduce carriers for moisture adhesion, so as to discover and address hidden dangers early.
For earthing terminals, prioritize materials with excellent conductivity and strong corrosion resistance such as copper, aluminum and special alloys. Linkwell earthing terminal blocks are made of PA66 material, featuring high voltage resistance, high temperature resistance, and resistance to chemicals and microbial attack, suitable for harsh working conditions.
Service life exceeding 20 years, greatly reducing downtime;
Impact and corrosion resistance with low maintenance workload;
Lower spare part replacement and maintenance costs in the long run.
Humidity, condensation and repeated temperature fluctuations are the core triggers for corrosion of earthing terminals in control cabinets. Neglecting these issues may lead to high maintenance costs, unplanned shutdowns, and even safety risks including electric shock and fire.
Protection cannot rely on a single measure. A combined solution is required: temperature control and ventilation equipment (fans/heaters/cabinet air conditioners) + cabinet sealing + corrosion-resistant components + periodic maintenance. Linkwell cabinet ventilation fans, heaters and cabinet air conditioners help users stabilize internal cabinet temperature and humidity, keep control panels dry and reliable, extend equipment service life and guarantee long-term operational safety.
Core Principle: Continuous temperature control & ventilation plus regular maintenance constitute the most reliable defense against corrosion.
✅ On-site Quick Self-inspection Checklist
Check for traces of moisture and rust inside the cabinet.
Install cabinet ventilation fans to optimize air circulation.
Add heaters or dehumidification equipment when condensation occurs.
Adopt cabinet air conditioners for precise temperature and humidity control in high-temperature and high-humidity scenarios.
Seal all cable conduit openings and inspect sealing gaskets.
Replace desiccants and clean ventilation filters on schedule.
Select high-quality corrosion-resistant earthing terminals.
Formulate regular inspection, cleaning and maintenance plans.
Check cables and sheaths for physical damage.
Inspect busbar corrosion and loose wiring.
Test the earthing system to ensure reliable earthing safety.
Q: What is the root cause of corrosion of earthing terminals in electrical cabinets?
A: Combined effects of moisture, condensation and temperature fluctuations trigger electrochemical corrosion on metal surfaces; dust and contaminants accelerate the corrosion process. Appropriate cooling and ventilation solutions can effectively prevent it.
Q: How to avoid condensation inside control cabinets?
A: Cabinet heaters or cabinet air conditioners can be installed to stabilize internal cabinet temperature and keep metal surface temperature above the dew point to prevent condensation.
Q: Why are Linkwell earthing terminals recommended?
A: They are made of corrosion-resistant materials with stable performance and reliable safety, complying with international standards, capable of withstanding large fault currents and adapting to harsh industrial environments.
Q: How often should electrical control cabinets be inspected?
A: Inspection is recommended every 3 months, focusing on hidden hazards such as moisture, rust and loose wiring for risk troubleshooting in advance.
Q: How to maintain cabinet ventilation fans?
A: Clean filters and fan blades monthly; replace filters directly when heavily dust-clogged to guarantee unobstructed airflow and full protective performance.
For customized control cabinet environmental control solutions, welcome to contact the Linkwell team for professional technical support.
