Electrical control cabinets, automation equipment and energy storage cabinets run continuously for long hours, with internal components generating constant heat. Failed heat dissipation easily leads to component aging, unexpected shutdowns, and massive losses for production lines and data centers. Air cooling stands as the most cost-effective and widely adopted temperature control solution in industrial scenarios, with cooling fans serving as the core of the entire air cooling system.
Many enterprises encounter cabinet ventilation pitfalls: blindly purchasing high-airflow fans, chaotic air duct layout, neglecting energy consumption and noise, and lack of regular maintenance, all of which drastically degrade cooling performance. This in-depth guide fully breaks down air cooling principles, fan selection criteria, air duct construction, installation and maintenance tips. It also introduces Linkwell’s decades of cabinet ventilation solutions, helping practitioners from factory, automation and energy storage sectors resolve cabinet heat dissipation challenges in one stop.
Air cooling features a simple yet efficient working logic: fans draw in cool ambient air, which flows over heat-generating parts such as circuit boards, power supplies and contactors inside the cabinet to carry away heat. Aluminum and copper heat sinks expand the heat exchange area to accelerate thermal transfer. Continuous air circulation prevents heat accumulation and stabilizes internal cabinet temperatures within a safe range.
Without effective air circulation, trapped heat inside cabinets accelerates cable aging, reduces component precision, and shortens the overall service life of equipment.
Fans handle the full cycle of hot and cold air exchange within any ventilation system:
Draw cool external air into the cabinet
Rapidly exhaust hot air generated by equipment
Boost heat exchange efficiency alongside heat sinks
Merely installing heat sinks and ventilation holes without forced convection from fans cannot deliver effective cooling, leaving persistent overheating risks.
Even top-tier fans underperform with random fan installation and disordered air ducts.
Arrange one side for cold air intake and the opposite side for hot air exhaust to form unidirectional cross airflow, eliminating dead zones of trapped hot air and recirculation.
Small control boxes: Intake air from bottom/side, exhaust from top
Large power/energy storage cabinets: Left-side intake, right-side exhaust
Recheck fan positions every 2–3 months; minor adjustments deliver remarkable cooling improvements
Fan selection relies on five indispensable dimensions: airflow, static pressure, dimensions, noise and durability, not just physical size.
Metric | Unit | Simple Analogy | Suitable Scenarios |
|---|---|---|---|
Airflow (CFM/m³/h) | Cubic feet per minute / cubic meters per hour | Total water output of a water pipe | Spacious cabinets, low-resistance ventilation environments |

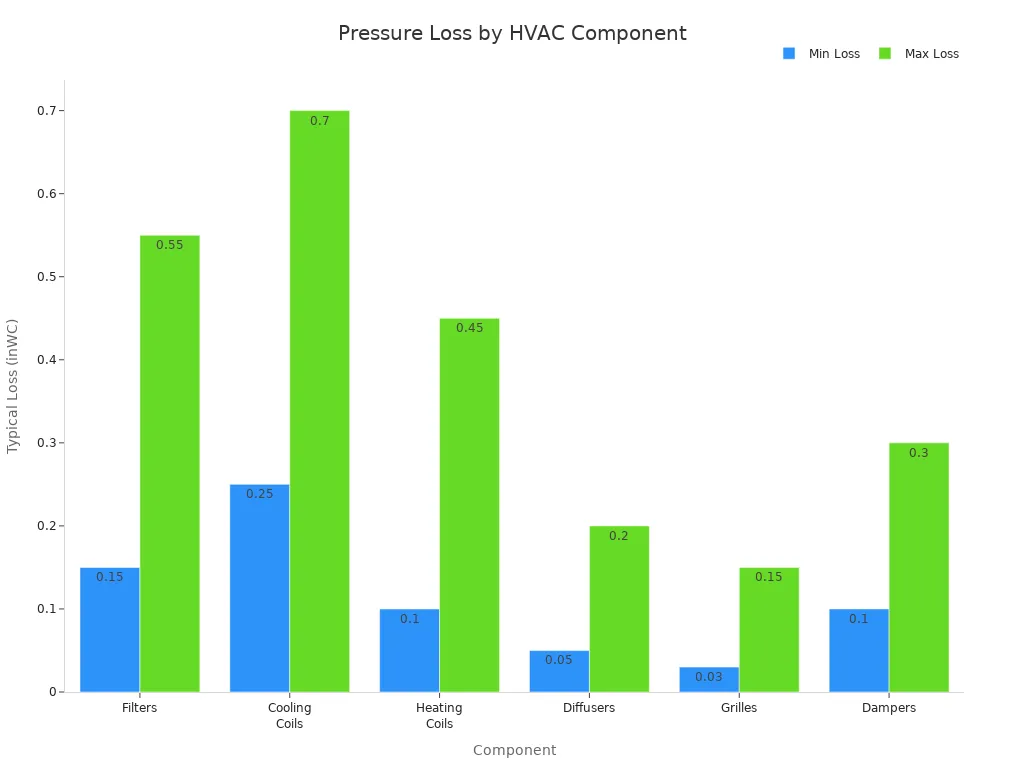

Static Pressure (mmH₂O) | Millimeters of water column | Jet pressure of water streams | High-resistance environments with filters, dense components or narrow ducts |
Spacious cabinets with sparse components: Prioritize axial fans with high airflow
Cabinets fitted with dust filters and densely packed parts: High static pressure models are mandatory
Most industrial cabinets require fans balancing airflow and static pressure to deliver sufficient air volume and penetration against resistance
Linkwell FU and LK32 series cabinet fans balance high airflow and powerful static pressure, delivering stable cooling for compact energy storage cabinets and filter-equipped control cabinets under harsh industrial conditions.
Two mainstream fan types fit different cabinet designs:
Axial Flow Fans: Full size range from 40mm to 254mm, compact with ample airflow, ideal for medium/small control and automation boxes. The compact FK55 series is engineered for confined spaces.
Centrifugal Blowers: Ultra-high static pressure, perfect for large power cabinets, energy storage rooms and ducted cooling systems.
Precisely measure cabinet mounting cutout dimensions
Match fan airflow capacity to total equipment heat load
Linkwell offers a full lineup of fans from 40mm to 254mm, covering all applications from miniature control enclosures to large energy storage cabinets.
Prolonged high noise in industrial workshops undermines staff productivity, and fan noise varies drastically by model:
Standard industrial AC fans: 55~65 dBA
Brushless DC low-noise fans: 3–10 dBA quieter overall; premium models operate below 50 dBA
For noise-sensitive areas (laboratories, central control rooms, food processing workshops), Linkwell LK3245 low-noise fan kits with integrated filters deliver silent cooling without compromise.
Traditional AC fans run at full speed nonstop with high power draw; new-generation smart fans offer standout advantages:
Brushless DC motors: Lower power consumption, extended service life
Paired with temperature/humidity sensors and IoT modules: Automatically adjust fan speed based on cabinet temperature, cutting ventilation energy use by up to 30%
Compatible with thermostats and hygrostats for fully automatic intelligent cooling with no manual intervention
Factories with dust, humidity and extreme temperatures demand highly reliable fans; focus on two key parameters:
MTBF (Mean Time Between Failures), L10/L2 service life ratings. Higher values reduce long-term maintenance costs.
IP54: Basic dust and splash resistance
IP65: Resists dust and high-pressure water jets
IP68: Dust-tight and submersible for short durations
Premium industrial fans operate stably from -20°C to 120°C, suitable for high-temperature smelting workshops and low-temperature cold storage facilities.
Diverse power input options are also critical. Linkwell fans support AC230V, DC5V/12V/24V/48V voltages to fit all electrical systems. Corrosion-resistant plastic housings and aluminum fan blades pair with detachable filters for easy cleaning.
With decades of experience in electrical ventilation R&D and manufacturing, our products are trusted across over 60 countries, serving manufacturing, food & beverage and energy storage industries.
Airflow range: 100~130 m³/h with a full matrix of fan sizes
Standard IP54 ingress protection; IP65/IP68 high-protection models optional
Construction: Flame-retardant plastic housing + anti-corrosion aluminum blades, resistant to oil, acid and alkaline cleaning agents
Standard detachable dust filters to block contaminants and safeguard precision internal components
CE, UL and RoHS certified, complying with global industrial safety standards
Equipment Protection: Rapid temperature control eliminates overheating shutdowns and blocks dust/moisture corrosion of electronic parts
Intelligent Adaptability: Compatible with temperature/humidity controllers to auto-adjust cooling power
Cost Efficiency: Energy-saving motors lower electricity bills; extended service life reduces replacement and maintenance frequency
Customization Service: Custom voltages, dimensions and protection grades available with short lead times
Proven Real-World Cases: Multiple factories run Linkwell fans all summer without heat-related failures; data centers maintain stable year-round temperatures
Manufacturing: Electrical control cabinets, automation panels
Food & Beverage: Production line automation enclosures, battery energy storage boxes
Energy Storage: Energy storage cabinets, forced air cooling systems for storage rooms
General Use: Industrial control boxes, power supply cabinets, equipment operation consoles
Evaluate site conditions in advance: dust concentration, humidity and extreme ambient temperatures
Organize cabinet wiring neatly to prevent airflow blockages and wind resistance
Design unified unidirectional air ducts to avoid turbulent cross-flow from multiple fans
Secure fans firmly to minimize vibration-induced extra noise
Select fans with matching ingress protection and filter specifications for cleanrooms, dusty workshops and humid production facilities separately.
Clogged filters are the top cause of cooling failure. Customize cleaning cycles by working environment:
High-dust workshops: Inspect filters 1–2 times monthly; clean or replace immediately when fouled
Clean indoor environments: Monthly inspections, filter replacement twice per year
Wipe fan blades and ventilation grilles to keep vents unobstructed; operate fans within rated temperature and voltage ranges.
Modern smart fans feature built-in fault alarms for overheating, filter clogging and fan stall. Paired with air quality and differential pressure sensors, they continuously monitor duct air pressure and airflow volume.
Data-driven monitoring predicts fan degradation, enabling scheduled maintenance to avoid unplanned production line outages.
Confirm cabinet ambient temperature, humidity, dust and waterproof requirements to select the correct ingress protection rating
Match airflow and static pressure parameters to cabinet size and component density
Choose AC or low-noise DC fans based on workshop noise limits
Prioritize brushless DC smart models to reduce long-term energy consumption
Verify cabinet cutout dimensions and equipment supply voltage for installation compatibility
Measure the length and width of the cabinet’s pre-drilled fan cutouts, then calculate required airflow based on total equipment heat generation. Contact Linkwell’s technical team for tailored selection support if parameter matching proves challenging.
All units include detailed installation manuals. General electricians can complete installation with basic hand tools; reach out for technical guidance if difficulties arise.
IP65: Fully dustproof, withstands high-pressure water sprays from all directions
IP68: Dust-tight and submersible for extended periods, suited for high-humidity and outdoor submerged conditions
All Linkwell industrial fans operate reliably from -20°C to 120°C, suitable for high-heat smelting plants and low-temperature cold storage facilities.
Production downtime and repair costs stemming from overheated electrical equipment far exceed the investment in a premium air cooling ventilation system. Properly matched cabinet fans with optimized air ducts, tailored to site conditions and built for long service life stabilize equipment operating temperatures, extend component lifespan, cut energy consumption and improve workshop environments.
Linkwell boasts years of expertise in electrical ventilation, delivering integrated air cooling solutions including fans, filters and temperature control accessories for all applications from miniature control boxes to large energy storage rooms. Balancing performance, energy efficiency and reliability, our ventilation systems offer a cost-effective temperature control solution for industrial equipment.
Consult our professional technical team for customized ventilation solutions to address your cabinet heat dissipation and fan selection needs.
