Complete Guide to Control Cabinet Heaters: From Principles to Maintenance, Everything Explained in One Article

1. Why Do Control Cabinets Need Heaters? An In-Depth Analysis of Condensation Hazards

Let’s start with a practical scenario:
Imagine the inside of a control cabinet on a late spring or early summer morning, just after the factory's night shift ends. During daytime operation, the equipment inside the cabinet generates heat, potentially raising the internal temperature above 30°C, while humid air circulates inside. After shutting down at night, the cabinet temperature gradually drops to 15°C or even lower. At this point, the moisture originally "held" in the air condenses in large amounts, clinging to cold circuit boards, wiring terminals, and equipment enclosures.

Key Conditions for Condensation Formation

Specific Manifestations of Condensation Hazards

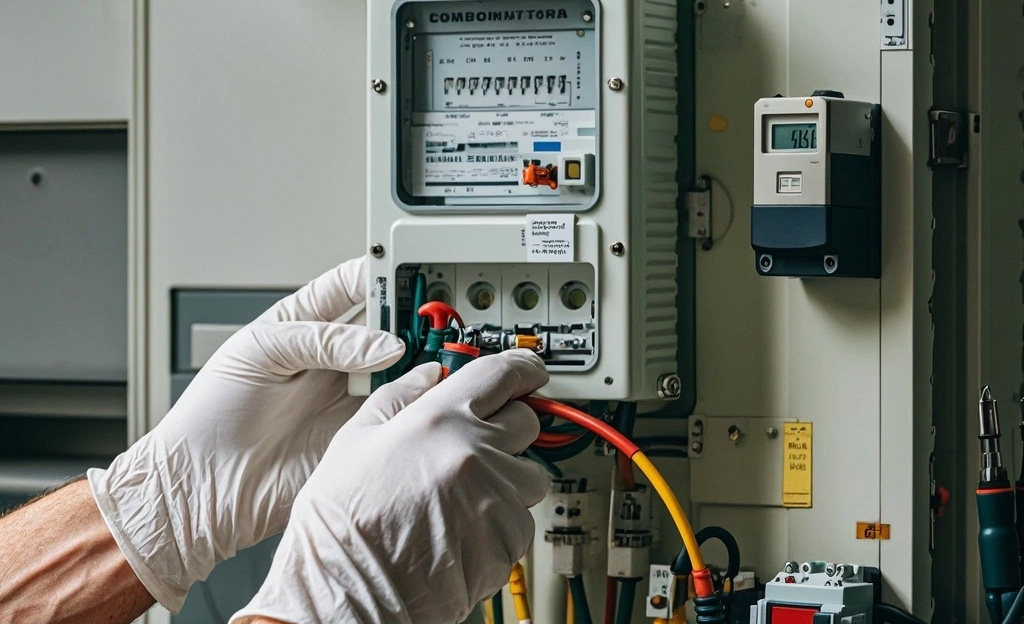

• Electrical Short-Circuit Risk: Water droplets form conductive paths between live components.

• Accelerated Equipment Corrosion: Oxidation rate of metal components increases 3-5 times.

• Decreased Insulation Performance: Insulation resistance may drop below safe levels.

• Enhanced Signal Interference: Electromagnetic interference is more likely in damp environments.

• Mold Growth Environment: Long-term dampness leads to biological corrosion.




2. How Heaters Work: Smarter Temperature Control Than You Imagine

First, understand a key physical concept: Relative Humidity
Many people mistakenly think humidity is a fixed value. It is not. Relative Humidity (RH) is the ratio of the actual amount of water vapor present in the air to the maximum amount of water vapor the air can hold at its current temperature. For example: At 30°C, one cubic meter of air can hold a maximum of 30 grams of water vapor. If it only actually contains 15 grams, the relative humidity is 50%. When the temperature drops to 15°C, that same cubic meter of air can now only hold a maximum of 13 grams of water vapor. At that point, 2 grams of the original 15 grams will condense into water.

The logic behind heater operation is clever:
It doesn't simply "bake" the cabinet dry but manages humidity through precise temperature control. When the system is operating, temperature and humidity sensors act like scouts, constantly monitoring environmental changes. When they detect that the temperature is too low or the humidity is too high, the controller issues a command, and the heater starts working. But here's the subtlety: the heater doesn't run continuously. It heats only until it reaches the "just right" temperature, then stops.

Let's look at an example of actual recorded data:

From the data, we can see the heater activates at midnight when humidity is highest, raising the internal temperature from 16°C to 18°C. Although it's only a 2°C increase, the relative humidity drops from 85% to 60%, completely avoiding condensation risk.

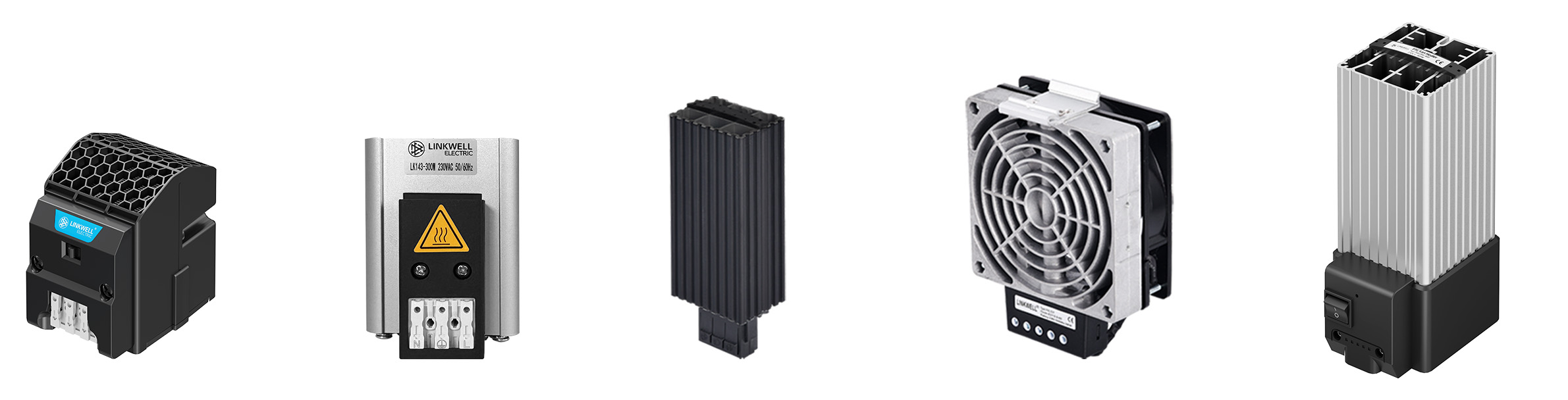

Comparison of Common Heater Technical Parameters

Heating Power Selection Reference Table

3. Installation Practice: Location Determines Effectiveness

The importance of installation location cannot be overstated.
I once encountered a client who spent a lot of money on an imported heater, but it performed poorly. Upon inspection, I found they had installed the heater at the top of the cabinet. This is a classic case: hot air rises, cold air sinks to the bottom. The result was the upper half of the cabinet was hot, but the lower half still suffered condensation.

The correct installation location should be:
The first choice is the lower rear section of the cabinet. This offers several advantages: cold air naturally sinks here, making heating most effective from this point; warm air passes by all equipment as it rises; and it doesn't occupy space needed for equipment installation.

Common mistakes to avoid during installation:

• Mistake 1: Pointing the heater directly at sensitive equipment. This causes localized overheating, affecting equipment lifespan. The correct approach is to direct the warm airflow into an open space, allowing for even temperature distribution through natural convection.

• Mistake 2: Installing near ventilation openings. Some control cabinets have ventilation fans. If the heater is installed near the intake or exhaust vent, the heat is quickly blown away, wasting energy with poor results.

• Mistake 3: Installing multiple heaters too close together. If multiple heaters are needed, they should be distributed to form multiple heat source points, ensuring more uniform temperature.

Wiring is also crucial:
The heater's power cable should be routed separately and not bundled with other signal cables. We recommend using flame-retardant, high-temperature silicone wires, with a wire gauge one size larger than theoretically calculated. There was a case where a 100W heater was used with a 0.5 mm² wire, and the wire insulation ended up melting.

4. Parameter Settings and Daily Maintenance

Parameter settings shouldn't be overly complex.
Many advanced controllers offer dozens of adjustable parameters, but for most applications, only four key parameters need to be set:

• Start Temperature: Recommended setting 10-12°C. Heat when below this temperature.

• Stop Temperature: Recommended setting 18-20°C. Stop when reaching this temperature.

• Start Humidity: Recommended setting 75-80%. Heat when above this humidity.

• Stop Humidity: Recommended setting 60-65%. Stop when below this humidity.

Here's a practical tip:
If you're unsure about local environmental conditions, you can first set it to temperature control mode (start below 12°C, stop above 18°C). After running for one month and reviewing the historical data, adjust the humidity parameters based on the actual situation.

For daily maintenance, just remember three words: Look, Feel, Test.

• Look: Open the cabinet door each month and check: Is there dust accumulation on the heater surface? Are the indicator lights normal? Are the terminal connections discolored? We once discovered a case where a heater's terminal connection was loose, causing poor contact. The terminal was burnt black, but the equipment was still barely working—this is a significant safety hazard.

• Feel: Periodically touch the heater casing with the back of your hand (ensure safety, preferably with power disconnected) to feel if the temperature is even. If you find a spot that is particularly hot or cold, there might be an issue with the internal heating element.

• Test: Calibrate the sensor once a year with a standard hygrothermograph. The method is simple: place the calibration hygrothermograph inside the cabinet and compare its reading with the controller's display. If the error exceeds 5%, the sensor needs adjustment or replacement.




Quick Troubleshooting for Common Faults:

• Fault 1: Heater completely cold.
  First, check the power indicator light, then check the controller output, and finally measure the heater's resistance. Generally, a 100W heater should have a resistance around 480 ohms.




• Fault 2: Poor heating effect.
  First, check if the power is sufficient, then check if the installation location is appropriate, and finally check the cabinet's sealing. There's a simple test: when the heater is working, feel around the cabinet door gaps. If you feel significant warm air leaking out, the sealing needs to be improved.




• Fault 3: Frequent cycling (on/off).
  This is usually because the parameter settings are too sensitive. Appropriately increase the differential between the start and stop temperatures/humidities. For example, change from starting below 10°C and stopping above 15°C to starting below 8°C and stopping above 18°C.

5. Purchasing Guide: Don't Waste Your Money

First, clarify your requirements:
Don't blindly pursue high-end configurations. We suggest first answering these questions:

• How large is the cabinet?

• What is the typical humidity during the most humid season in your area?

• What sensitive equipment is inside the cabinet?

• What is the approximate budget?




Suggestions for brand selection:
Imported brands like Eaton and Schneider indeed offer good quality, but at higher prices. Domestic brands such as CHINT, Delixi, and LINKWELL offer better cost-performance ratios. Our experience is: For ordinary industrial environments, high-quality domestic brands are perfectly adequate. Only in situations with extremely high reliability requirements (such as nuclear power, rail transit) is it necessary to consider imported brands.

Final checklist:
Before placing an order, confirm these points:
✅ Is the power sufficient?
✅ Does it have temperature protection features?
✅ Is it suitable for your cabinet installation?
✅ Does it have relevant certifications (CE, CCC, etc.)?
✅ How long is the warranty period?

Conclusion: A Wise Choice for Big Results with Small Investment

Control cabinet heaters are a typical example of "preventive investment"—they don't cost much but can prevent significant losses. According to our statistics, on average, each heater can help clients avoid potential losses that are more than 10 times its own price annually.

Advice for managers:
If you are responsible for equipment management, you might as well do a simple calculation: tally up the repair costs due to dampness over the past three years and compare them with the cost of installing heaters on all important control cabinets. You will find that this investment is almost always cost-effective in any factory.

Advice for maintenance personnel:
After installing the heater, remember to record its operation in the maintenance log. Especially during the first few months, observe and record more to find the parameter settings best suited to your on-site environment. A good heating system should be "unnoticeable in its presence but indispensable for its protection."

Finally, remember: Control cabinet heaters are not optional accessories but necessary protective devices. In an era where equipment is becoming increasingly sophisticated and production continuity requirements are ever higher, implementing basic protection is the best maintenance strategy.
