In scenarios such as industrial automation, power distribution & energy storage, and smart manufacturing, electrical cabinets and control panels operate continuously for long periods. Internal components are highly prone to overheating‑induced shutdowns and service life degradation due to heat accumulation, dust, and moisture. Air‑cooling systems have become the mainstream cooling solution for industrial cabinets thanks to their controllable costs, easy installation and strong adaptability. Fans serve as the core of any air‑cooling system. Proper fan selection, scientific layout and standardized maintenance directly determine cooling efficiency and service life of equipment. This article elaborates on key points for building industrial cabinet air‑cooling systems from four dimensions: air‑cooling principles, fan selection, airflow layout and daily maintenance, while recommending high‑performance ventilation and cooling solutions.
Air cooling works in a simple yet effective way: the system draws cool ambient air into the cabinet, passes it over heat‑generating electronic components, and expels heated air out of the cabinet. To enhance heat dissipation, most air‑cooling systems are equipped with heat sinks made of aluminum or copper, which expand heat‑transfer contact areas and accelerate heat release.
As an indispensable core component of air‑cooling systems, fans perform two key functions:
Draw continuous cool air into the cabinet to cover heat‑generating components quickly;
Force hot air out of the cabinet to avoid heat buildup in high‑temperature dead zones.
Without properly matched fans, heat accumulates continuously, easily causing component burnout and system shutdown. Only steady fan operation ensures constant internal cabinet temperature and long‑term stable performance of electrical equipment.
Fan selection should not be based merely on size. It requires comprehensive consideration of cabinet space, internal resistance, operating environment, noise requirements and energy‑saving standards. Five major dimensions should be prioritized: airflow, static pressure, size, noise and reliability.
Airflow (CFM): measures air volume moved by a fan per unit time, ideal for large open cabinets with low resistance to ensure sufficient air circulation.
Static Pressure (mmH₂O): reflects a fan’s ability to push air through filters, heat sinks and densely packed components, suitable for compact high‑resistance cabinets to prevent airflow attenuation caused by wind resistance.
In short, high‑airflow fans are preferred for open cabinets; high‑static‑pressure fans are essential for compact cabinets with filters. Balancing both metrics enables adaptation to complex industrial environments. FU Series and LK32 Series cabinet exhaust fans by Linkwell accurately balance high airflow and strong static pressure, delivering stable cooling even in densely component‑packed cabinets.
Centrifugal blowers: ideal for large closed cabinets and energy‑storage cabinets with strong pressure resistance for high‑static‑pressure cooling.
Axial fans: suitable for small control boxes and compact cabinets, featuring compact size and sufficient airflow to save installation space.
Linkwell provides cabinet exhaust fans ranging from 40 mm to 254 mm. The FK55 Series fits compact spaces, while the FU Series meets heavy‑duty cooling demands, covering all scenarios from miniature control boxes to large power distribution cabinets. Always measure cabinet opening dimensions before purchase for precise matching.
Fan noise greatly affects long‑term working experience in workshops and data centers, measured in decibels (dBA):
Standard industrial fans: 55–65 dBA, suitable for ordinary workshops with no noise‑reduction requirements.
DC / low‑noise fans: 42–57 dBA, with premium silent models below 50 dBA for precision workshops and office areas.
Linkwell LK3245 low‑noise fan‑filter units are specially designed for noise‑sensitive areas, achieving both efficient cooling and low noise.
Brushless DC and EC smart fans automatically adjust speed according to ambient temperature. Equipped with sensors and IoT modules, they cut energy consumption by up to 30% compared with traditional fans and lower electricity bills. Linkwell ventilation systems integrate thermostats and humidity controllers to intelligently adjust fan speed for energy‑efficient cooling.
Industrial environments feature heavy dust, high humidity and wide temperature fluctuations, requiring highly durable fans:
Performance indicators: MTBF (Mean Time Between Failures), L10 life and other parameters ensure long‑term stable operation.
Protection ratings: IP54 dustproof & waterproof, IP68 waterproof immersion, operating safely within a wide temperature range of −20 °C to 120 °C.
Power options: DC (5 V, 12 V, 24 V, 48 V) and 230 V AC available to adapt to various power supply systems.
Linkwell cabinet fans feature complete protection ratings, operating continuously under dusty, humid and extreme‑temperature conditions to reduce unplanned downtime risks.
Proper fan selection is only the first step. Fan installation position and airflow direction directly determine cooling efficiency, while improper layout leads to heat retention and local overheating.

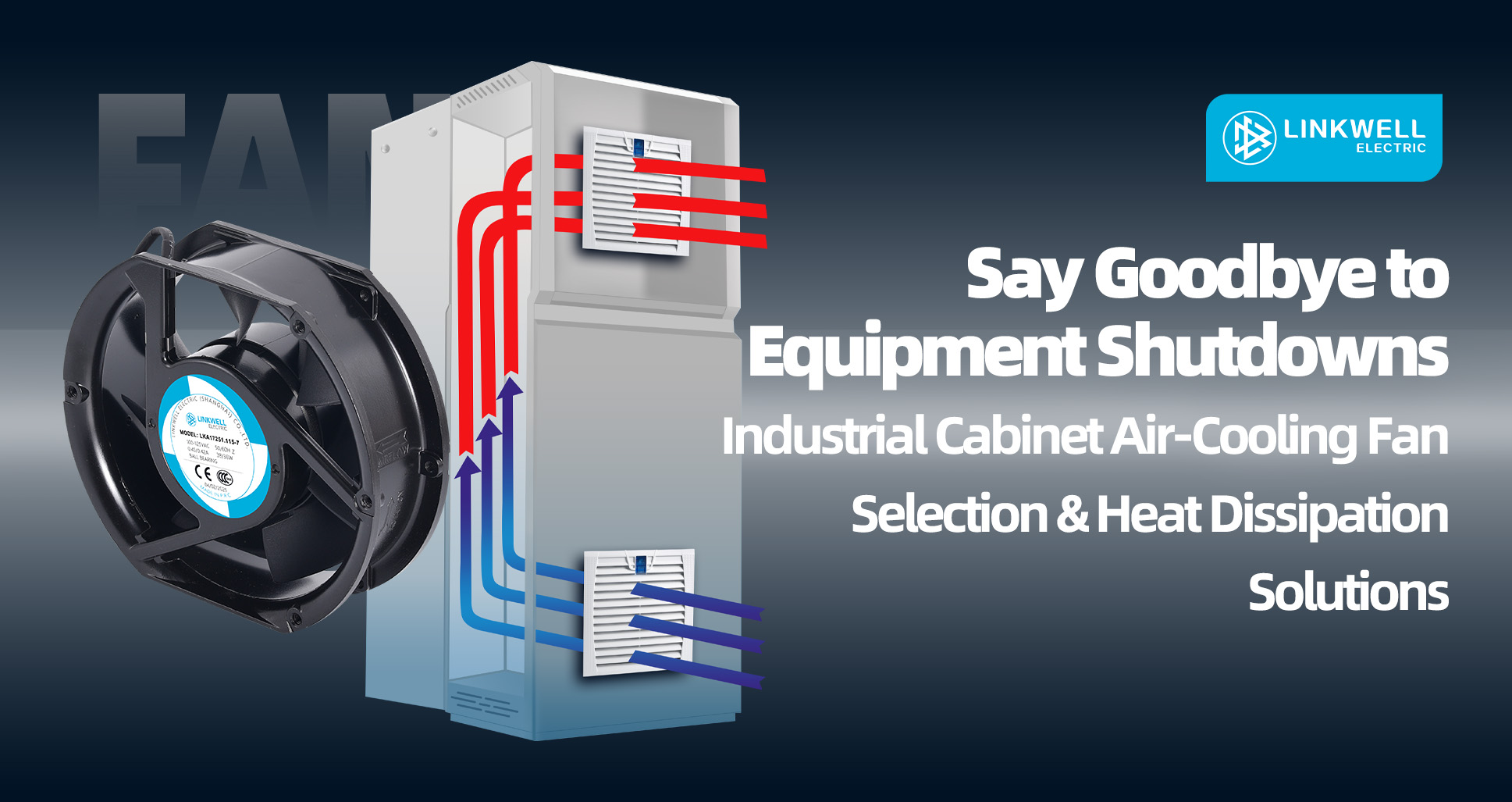

Follow the cross‑flow logic: intake cool air from one side and exhaust hot air from the other. Fans draw cool air through heat‑generating components, while fans on the opposite side force hot air out, forming a complete air circulation and preventing heat buildup in cabinet corners.
Arrange cables neatly to avoid airflow blockage.
Unify airflow direction for multiple fans to form coordinated convection and prevent airflow counteraction.
Secure fans firmly to reduce vibration and extra noise.
Check fan positions every 2–3 months and fine‑tune layout to optimize cooling efficiency.
Long‑term stable operation of air‑cooling systems relies on standardized installation, regular cleaning and real‑time performance monitoring.
Before installation, assess cabinet dust, humidity and heat distribution to select corresponding cooling solutions. Choose fans with appropriate protection ratings for clean workshops and dusty factories. Arrange cables neatly and reserve ventilation channels to guarantee cooling efficiency from the source.
Dusty & humid environments: clean fans and filters 1–2 times monthly.
Clean environments: inspect monthly and replace filters twice yearly.
Wipe fan blades and grilles regularly, and clear dust from vents to avoid airflow attenuation caused by blockage.
Linkwell fans are fitted with detachable filters for easy cleaning. Corrosion‑resistant materials withstand frequent cleaning and extend fan service life.
Smart fans equipped with sensors monitor temperature, humidity and airflow in real time to predict faults in advance. Data‑driven monitoring predicts maintenance cycles, enabling predictive maintenance and avoiding unexpected shutdowns.
As a globally renowned brand for electrical enclosure ventilation, Linkwell specializes in industrial cooling. Its product portfolio includes cabinet exhaust fans, filters, heat exchangers, thermostats and humidity controllers, certified by CE, UL and RoHS. Exported to over 60 countries, Linkwell products are widely applied in smart manufacturing, food & beverage, power distribution & energy storage, and industrial automation industries.
Superior performance: Full‑series fans balance high airflow and strong static pressure to adapt to complex cabinet cooling requirements.
Durable protection: Multiple protection ratings including IP54/IP65/IP68, suitable for harsh working conditions with wide temperature ranges.
Energy‑saving intelligence: Temperature‑controlled speed regulation and IoT monitoring reduce energy consumption and maintenance costs.
Flexible customization: Customizable specifications, fast delivery and professional technical selection support.
In practical applications, factories in Shenzhen have avoided overheating‑induced shutdowns for three consecutive summers with Linkwell fans. Data centers rely on Linkwell products for stable year‑round temperature control, ensuring safe and steady equipment operation.
Building industrial cabinet air‑cooling systems centers on three key points: selecting fans with proper parameters, designing scientific airflow layout and performing regular maintenance. Prioritize industrial‑grade fans with high airflow, high static pressure, energy efficiency, low noise and high protection. Conduct precise selection according to cabinet scenarios, adopt scientific convection layout, and implement regular cleaning and monitoring to effectively prevent overheating, dust accumulation and moisture ingress, extending service life of electrical equipment.
