Complete Guide To Airflow Management for Electrical Cabinets And Data Cabinets: Optimize Heat Dissipation And Extend Equipment Lifespan

It is an often-overlooked core link that directly determines equipment stability, service life, and operational costs. Reasonable planning of airflow layout and effective heat dissipation and ventilation control can significantly reduce unplanned downtime, lower hardware loss, and save refrigeration energy consumption. Conversely, disordered airflow and poor ventilation can lead to a series of problems such as equipment overheating, premature hardware aging, frequent downtime, and soaring maintenance costs.

When airflow control is in place, the frequency of equipment failures will be significantly reduced, and the overall service life will also be greatly extended. Overheating is the number one killer of electrical and IT hardware, which accelerates component aging and causes sudden failure shutdowns. In daily operation and maintenance, you only need to master simple and practical airflow management skills: reasonably plan the airflow direction of the cabinet, and equip electrical cabinets and data cabinets with professional fan cooling solutions to ensure the long-term stable operation of the entire system. These seemingly minor optimizations can not only protect the investment value of equipment but also keep the system in a highly efficient operating state at all times.

I. Core Value of Good Airflow Management

High-quality air circulation is the basic guarantee for the constant temperature operation of equipment and extending its service life. Operators need to regularly inspect the vents of cabinets and electrical cabinets, timely clean up dust and debris to avoid blockage, and ensure that the heat dissipation performance is always in the best state.

At the same time, make good use of blanking panels to block the empty slots of the cabinet, eliminate the disorderly mixing of hot and cold air, which can not only improve cooling efficiency but also effectively reduce refrigeration energy consumption. In data centers, adopt the hot and cold aisle layout, import cold air from the front and discharge hot air from the back to optimize the heat dissipation logic from the source.

Keep the cabinets and aisles clean and free of accumulated debris, reserve sufficient space for air circulation, stabilize the internal temperature, and avoid overheating risks from the source. Equip with temperature and airflow sensors for regular monitoring, conduct regular inspections to identify potential hazards, and achieve efficient and stable operation of the cooling system.

II. Potential Risks of Inadequate Airflow Management

Poor airflow will bring multiple hidden dangers to the entire operation and maintenance system: blocked airflow is likely to form local hot spots, causing hardware throttling, crashes, or even permanent damage; disorderly mixing of hot and cold air will force the cooling system to operate at high load, resulting in a significant increase in refrigeration costs; bypass loss of cold air and crosstalk between hot and cold air directly lead to low energy efficiency and double waste of power and operational costs.

In daily operation and maintenance, always pay attention to the signs of equipment overheating: slow operation, frequent unexplained restarts, and abnormally hot surface of the machine are mostly early warning signals of poor airflow and heat dissipation failure.

Timely investigation and rectification of airflow hidden dangers can avoid small problems evolving into large-scale equipment failures and economic losses.

III. Practical Airflow Management Skills for Data Cabinets

1. Optimize the Overall Cabinet Layout

Cabinet layout is the first step in airflow planning. Disorderly stacking of equipment is likely to generate local hot spots and cause energy waste. Professional layout suggestions:

• Adopt the hot and cold aisle isolation arrangement: the front faces of the cabinets are opposite to form a cold aisle, and the back faces are opposite to form a hot aisle, so as to accurately separate hot and cold air;

• Select perforated cabinet doors and sealed side panels to ensure free air circulation and block gaps to reduce air leakage;

• Timely seal the gaps between cabinets and cabinet bodies to eliminate crosstalk between hot and cold air;

• Standardize cable routing and sort out wire harnesses to avoid messy cables blocking air ducts and hindering air circulation;

• Block the upper and lower parts of the cabinet and idle spaces to guide air flow in a directional manner without ineffective loss.

Six strategies—cold aisle sealing, standardized cabinet structure design, blanking panels, professional cable management, gap sealing accessories, and hot and cold air separation control systems—complement each other to comprehensively improve the cabinet's heat dissipation and airflow management capabilities. If an raised floor is used, perforated floor tiles can be reasonably configured to accurately deliver cold air to the key positions of the cabinet; matching with cold aisle wind deflectors to eliminate local hot spots and make heat dissipation more balanced.

2. Standardize Blanking Panels to Improve O&M Details

Many operators easily overlook the empty slots of the cabinet. Empty slots will cause hot air from the rear to flow back and mix with cold air, increasing the load of the cooling system and raising the internal temperature of the cabinet.

Blanking panels are low-cost and high-return O&M accessories that can directly block the unused slots of the cabinet: they block the backflow and crosstalk of hot air, reduce the load of the cooling system, stabilize the constant temperature environment inside the cabinet, reduce downtime caused by overheating, delay hardware aging, and extend equipment service life. At the same time, they can reduce meaningless air flow, inhibit dust accumulation, and reduce the frequency of later maintenance. It is recommended to immediately fill the new gaps with blanking panels after adding or moving equipment to maintain the integrity of the cabinet air duct regularly.

3. Adhere to the Standard Hot and Cold Aisle Layout

The hot and cold aisle layout is the most efficient and universal airflow management solution for data centers. Cabinets are arranged with cold air inlets facing each other to form a cold aisle, and hot air outlets facing each other to form a hot aisle; perforated floors deliver cold air to the cold aisle, and hot air flows back uniformly through the ceiling return air cavity.

This physical isolation method completely eliminates the mixing of hot and cold air, reduces fan energy consumption, and can save 10%-35% of cooling energy consumption. Matching with cold/hot aisle enclosure solutions to lock cold air and recover hot air further improves energy efficiency and comprehensively ensures the safe operation of IT and electrical equipment.

4. Keep Aisles Unobstructed and Reserve Ventilation Space

Accumulating debris in the aisle is a common cause of airflow disruption. Blocking the cold aisle will prevent cold air from reaching the equipment, and blocking the hot aisle will cause hot air to stagnate and accumulate temperature. Operators must strictly do the following:

• Align the front edge of the cabinet with the front edge of the floor tile to ensure the smooth introduction of cold air into the cold aisle;

• Reserve a maintenance and ventilation space of not less than 1.2 meters (4 feet) between the cabinet and the wall;

• Reserve a ventilation gap of 1.8 meters (6 feet) between the cabinet and the cooling equipment;

• Keep the nearest perforated floor tile at least 2.4 meters (8 feet) away from the refrigeration equipment to accurately deliver cooling capacity.

Inspect the aisle every week, and promptly remove obstacles such as boxes, tools, and redundant cables to always keep the air duct unobstructed.

IV. Fan Cooling Solutions for Electrical Cabinets & Data Cabinets

For the scenarios of small, closed electrical cabinets and data cabinets with high heat dissipation pressure, the LINKWELL professional cabinet fan solution has become the preferred choice for industrial and data center operation and maintenance. Deeply rooted in the field of cabinet heat dissipation, the brand provides stable and reliable ventilation and heat dissipation support for electrical cabinets and data cabinets with excellent quality and innovative design, comprehensively protecting the stable operation of equipment.

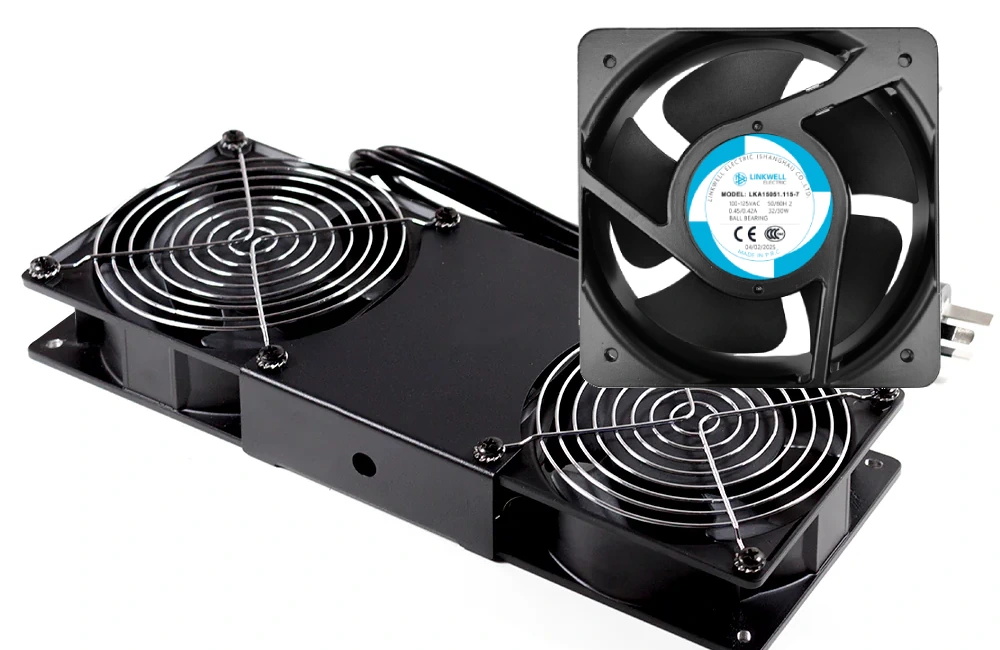

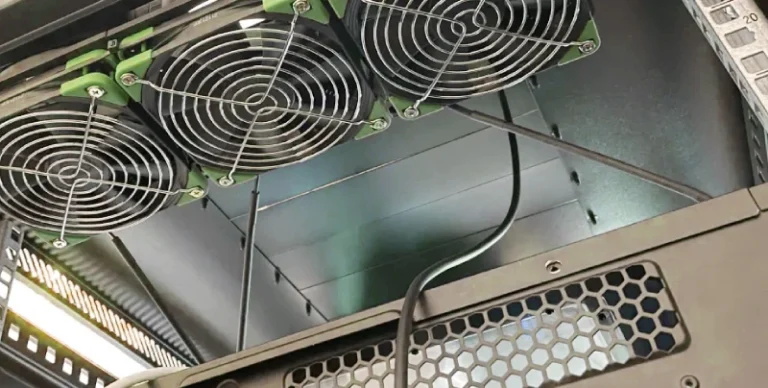

The integrated cabinet fan can quickly discharge the hot air accumulated in the cabinet, perfectly adapting to the heat dissipation needs of small and closed electrical cabinets, and still maintaining efficient air circulation in complex industrial environments. Equipped with intelligent temperature control design, it not only achieves basic heat dissipation but also brings tangible value in energy consumption control, equipment uptime, and maintenance cost optimization:

How to Select the Suitable Cabinet Cooling Fan

Selection needs to be in line with actual working conditions, following the core selection logic:

1. Accurately calculate the heat load of the equipment and match the corresponding power cooling fan;

2. Check the external dimensions and installation method of the electrical cabinet to ensure adaptive installation;

3. Select the corresponding IP protection level according to the on-site environment to adapt to harsh working conditions with dust and water resistance;

4. Comply with industry safety standards and local regulations to ensure compliant operation;

5. Support customized functions to match the personalized O&M needs of the enterprise;

6. Comprehensively consider the total cost of ownership, not just the initial purchase price.

LINKWELL provides comprehensive selection guidance and installation support, assisting in matching suitable models throughout the process, making the heat dissipation deployment of electrical cabinets and data cabinets more worry-free.

V. Sealing Protection and Airflow Isolation to Build a Solid Foundation for Heat Dissipation

Doing a good job in sealing the gaps of cabinets and electrical cabinets is the key to preventing cold air loss and hot air backflow. Empty slots, cabinet splicing gaps, and cable entry ports are the main locations of air leakage, which are likely to cause cold energy waste and form local hot spots.

Operators can comprehensively close idle spaces and gaps through accessories such as blanking panels, brush-type cable glands, gap sealing strips, and cabinet blocking panels. It can not only lock the directional flow of air and maintain the constant temperature inside the cabinet but also block the intrusion of moisture, dust, and corrosive pollutants, avoiding component moisture corrosion and premature aging. It is recommended to conduct an inspection every quarter, promptly repair air leakage gaps, and maintain the integrity of the air duct for a long time.

At the same time, an airflow isolation system can be adopted to completely separate incoming and outgoing air through cold aisle containment and hot aisle diversion modes, adapting to the heat dissipation needs of high-density IT equipment. While reducing cooling costs, it reduces carbon emissions, achieving a balance between efficient operation and maintenance and green energy conservation.

VI. Regular O&M and Intelligent Monitoring to Ensure Long-term Airflow Stability

1. Fixed-cycle Cleaning and Inspection

Dust and debris are the biggest hidden dangers of air ducts, which are easy to block vents and block fans, leading to a sharp drop in heat dissipation efficiency. Establish a standardized O&M cycle:

• Monthly: Check for cable aging, loose components, and body damage hazards;

• Quarterly: Conduct in-depth dust cleaning, tighten accessories, test circuit breakers, and check network operation status;

• Annually: Conduct infrared temperature scanning, update firmware versions, review load data, and comprehensively inspect the environment and grounding system.

Focus on the dust accumulation on fans and vents and clean them in a timely manner; check whether the panels and gaps are leaking air, and block empty slots with sealing accessories to ensure the smoothness of the air duct throughout the process.

2. Intelligent Airflow and Temperature Monitoring with Sensors

Relying on temperature and airflow sensors, deploy monitoring nodes at key positions of cabinets and electrical cabinets to capture heat source temperature and airflow changes in real time. Once a sudden temperature rise or abnormal airflow occurs, potential problems such as air duct blockage and fan failure can be investigated in the first place, and early intervention can be taken to avoid equipment overheating and downtime.

Flexibly adjust fan speed and rearrange equipment layout based on monitoring data, and match standardized cabinet accessories and neat wiring to comprehensively optimize the internal airflow environment from hardware to management, balancing equipment safety and long-term energy conservation.

VII. Advanced O&M: Thermal Modeling and Continuous Optimization

Large data centers can adopt CFD (Computational Fluid Dynamics) thermal modeling technology to simulate cabinet layout, airflow direction, and temperature accumulation points in advance, avoiding hidden dangers such as hot spots and air duct blockages before construction and deployment. Optimizing cabinet arrangement through virtual simulation can significantly improve heat dissipation efficiency and calmly respond to sudden working conditions such as HVAC equipment failures.

Airflow management has no end, and a continuous optimization mindset must be maintained: rely on wireless sensors to monitor temperature, humidity, and airflow in real time, isolate hot and cold air ducts, adjust the cooling system on demand, adopt modular cabinets and sealing curtains to separate airflow, intelligently adjust heat dissipation equipment based on data, and combine AI O&M tools to predict hidden dangers to achieve pre-protection, keeping data centers and electrical cabinets in an efficient, low-consumption, and stable operating state for a long time.

Conclusion

Efficient airflow management of electrical cabinets and data cabinets is a core measure to ensure equipment performance, extend service life, and control O&M costs. By optimizing the hot and cold aisle layout of the cabinet, standardizing blanking panels, keeping the aisle and air duct unobstructed, sealing gaps to reduce air loss, and matching with the LINKWELL professional cabinet fan cooling solution, combined with regular inspections and intelligent sensor monitoring, the three major pain points of overheating, failure, and high energy consumption can be solved from the source.

Reasonable airflow optimization requires small investment but high returns. It can not only reduce downtime losses and maintenance expenses but also protect equipment investment and achieve green and energy-saving operation and maintenance. If you need professional cooling fans and supporting airflow management solutions for electrical cabinets and data cabinets, you can consult LINKWELL at any time to customize a complete cooling solution suitable for your working conditions.
